Dual Lens Camera Module with AI WDR

Hampo 003-0514 is a a synchronized dual lens USB camera module, with 1/2,7″ CMOS AR0230 & OV2710 image sensor, the max resolution is 1920*1080P @30fps for each camera,delivery 96dB of wide dynamic range and good low light performance.

Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days

Send email to us

Product Detail

DATASHEET

Product Tags

Dual Lens 1080P 30fps WDR 96DB USB Camera Module with AR0230 and OV2710 Image Sensor Synchronization for Face Recognition

Hampo 003-0514 is a a synchronized dual lens USB camera module, with 1/2,7" CMOS AR0230 & OV2710 image sensor, the max resolution is 1920*1080P @30fps for each camera,delivery 96dB of wide dynamic range and good low light performance.

The outstanding feature for this module is the two camera’s video frame is synchronous, just like human's eyes. WDR Dual-Lens Camera Module, equipped with high-performance AI intelligent vision processor, has powerful AI computing performance, supports various AI frameworks and human detection with high recognition accuracy，widely used for binocular stereo vision secondary development which directly simulates the manner of human eyes observing one scene from two different viewpoints.

Like Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, People Counting & Tracking etc application. Customer could develop their own software and device,integrated with this dual lens camera to capture or view dual image picture or video.The dual lens camera module compatible with Android, Linux and Windows system with UVC and recognized as 2 pcs cameras.

Features:

Synchronized dual lens camera module:

2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do. Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.Small outline 38*28mm for embedded application

Full HD 1080P Resolution:

The camera module adopt two 1/2.7” AR0230 WDR color sensor. The max frame rate 1920*1080@ 30fps, full HD image.

WDR & Wide Angle Range Lens:

The camera’s wide dynamic range is 96DB & 69DB, and the wide angle range is FOV D=95°

Best Universal Compatibility:

Dual lens camera module support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux with UVC.

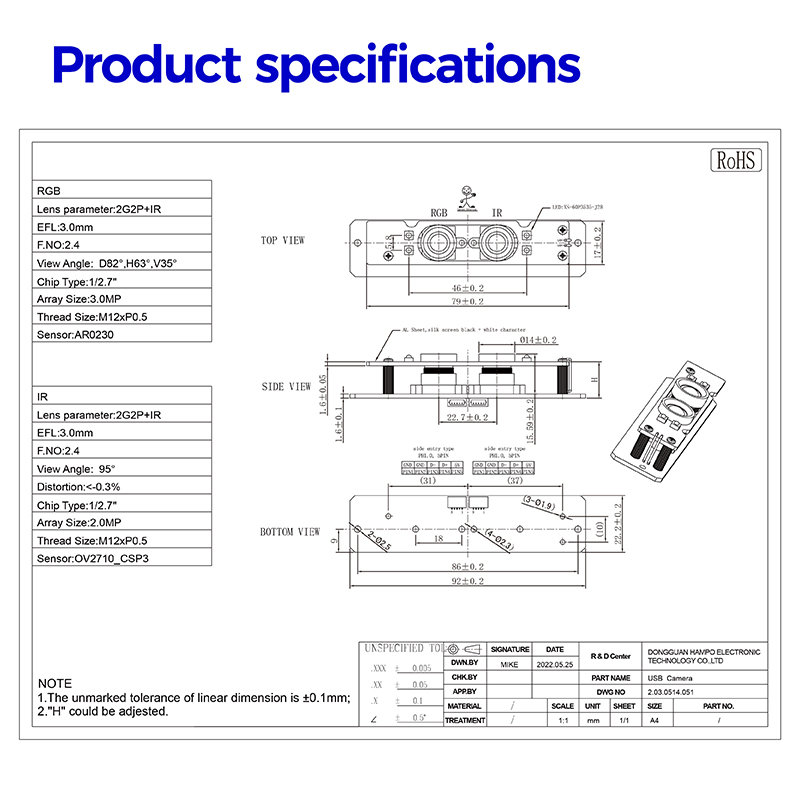

SPECS:

Camera
Model No.	003-0514
Camera	RGB Camera	IR Camera
Max Resolution	1920*1080P	1920*1080P
Sensor	1/2.7" AR0230	1/2.7" OV2710
Frame Rate	MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS; 1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS	MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS; 1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS
Pixel Size	3.0μm*3.0μm	3.0μm*3.0μm
Output Format	YUY2/MJPG	YUY2/MJPG
Dynamic Range	96dB	69dB
Illumination	/	0.5Lux
Lens
Focus	Fixed focus	Fixed focus
FOV	D=82°	D=95°
Lens Mount	M12 * P0.5mm	M12 * P0.5mm
Focusing Range	3.3ft (1M) to infinity	3.3ft (1M) to infinity
Power
Working Current	200mA	200mA
Voltage	DC 5V	DC 5V
Physical
Interface	USB2.0	USB2.0
Storage Temperature	-20ºC to +70ºC	-20ºC to +70ºC
Operating Temp	0°C~60°C	0°C~60°C
PCB Size	9222.217.2(mm)
Cable Length	3.3ft (1M)	3.3ft (1M)
TTL	15.59MM	15.59MM
Functionality and Compatibility
Adjustable parameter	Exposure/ White balance	Exposure/ White balance
System Compatibility	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
