Dual 2MP Color Global Shutter Binocular USB Camera Module Dual 1080P FHD 30fps Synchronized Dual Lens for Robot SLAM and Navigation
Product Description

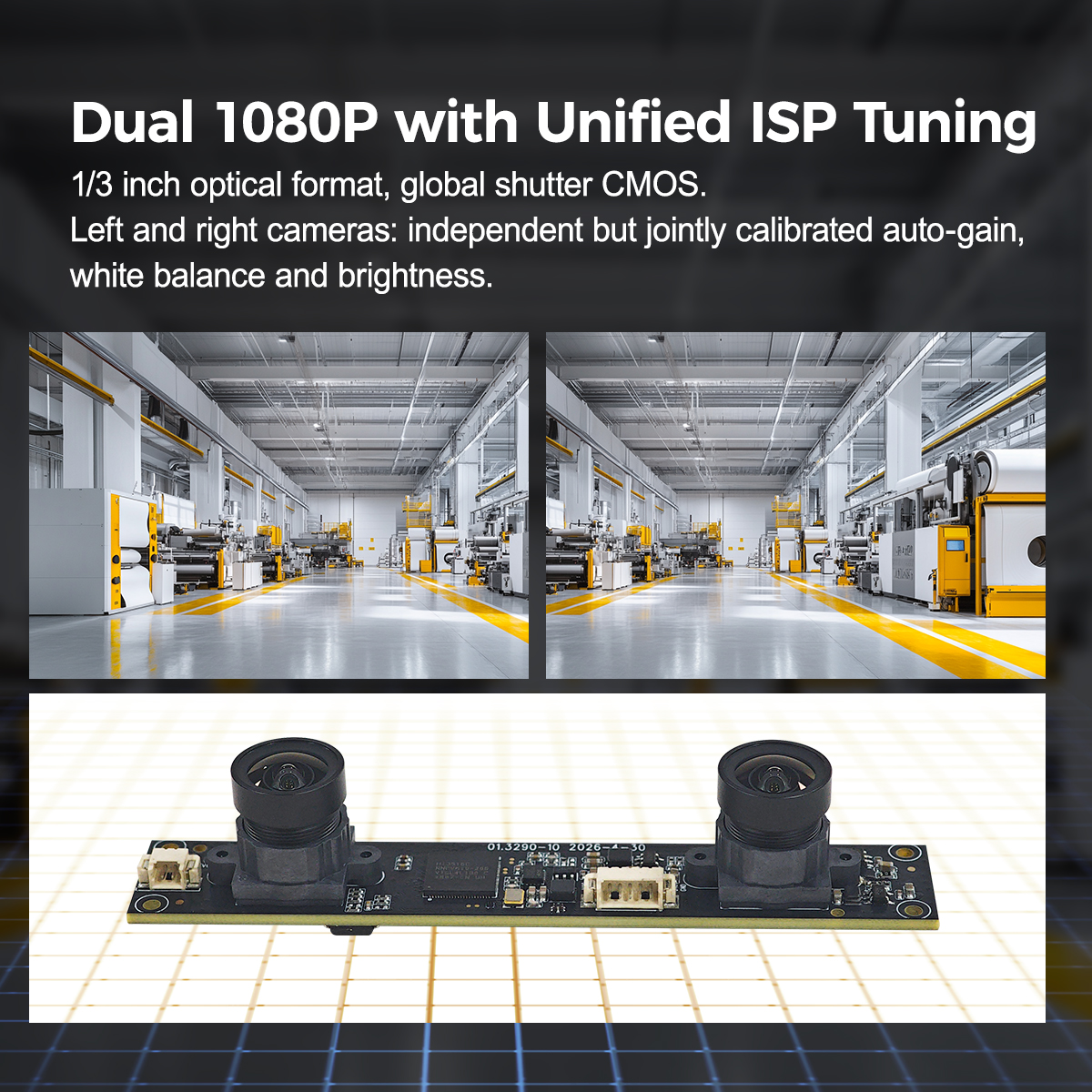

2MP dual‑lens vision module with global shutter, 3840×1080@30fps, 125° FOV, and wide dynamic range (91.56dB HDR) — ideal for facial recognition, liveness detection, access control, and intelligent terminals. Supports dual‑camera sync, ranging, and calibration for biometric identification, 3D reconstruction, and depth sensing. Compact PCB with fixed M12 lens, USB 2.0, compatible with Windows/Linux.
Key Features

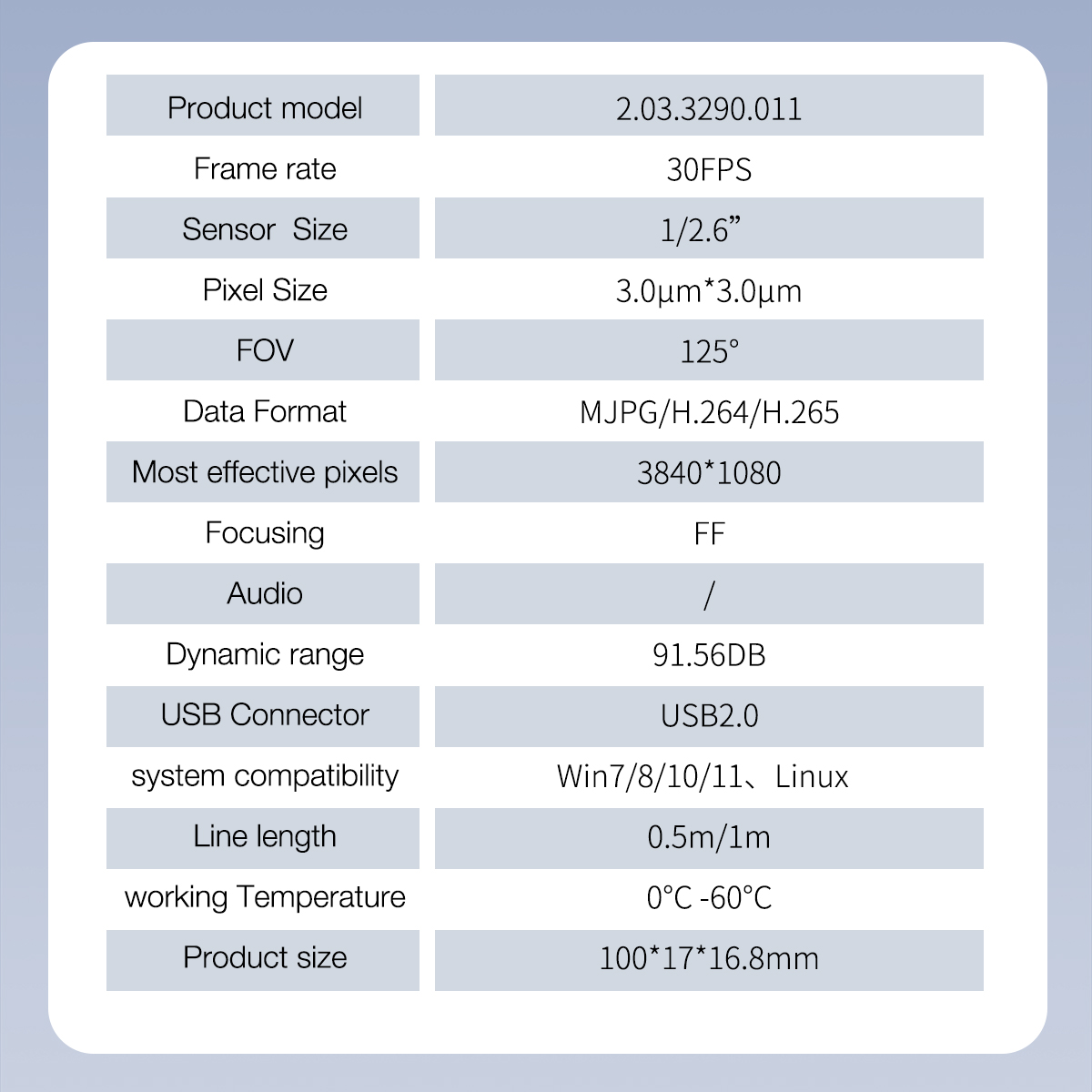

Specification
| Brand | Hampo |
| Model | 3290 |
| Max Resolution | 3840×1080 |
| Sensor Size | 1/2.6″ |
| Pixel Size | 3.0μm*3.0μm |

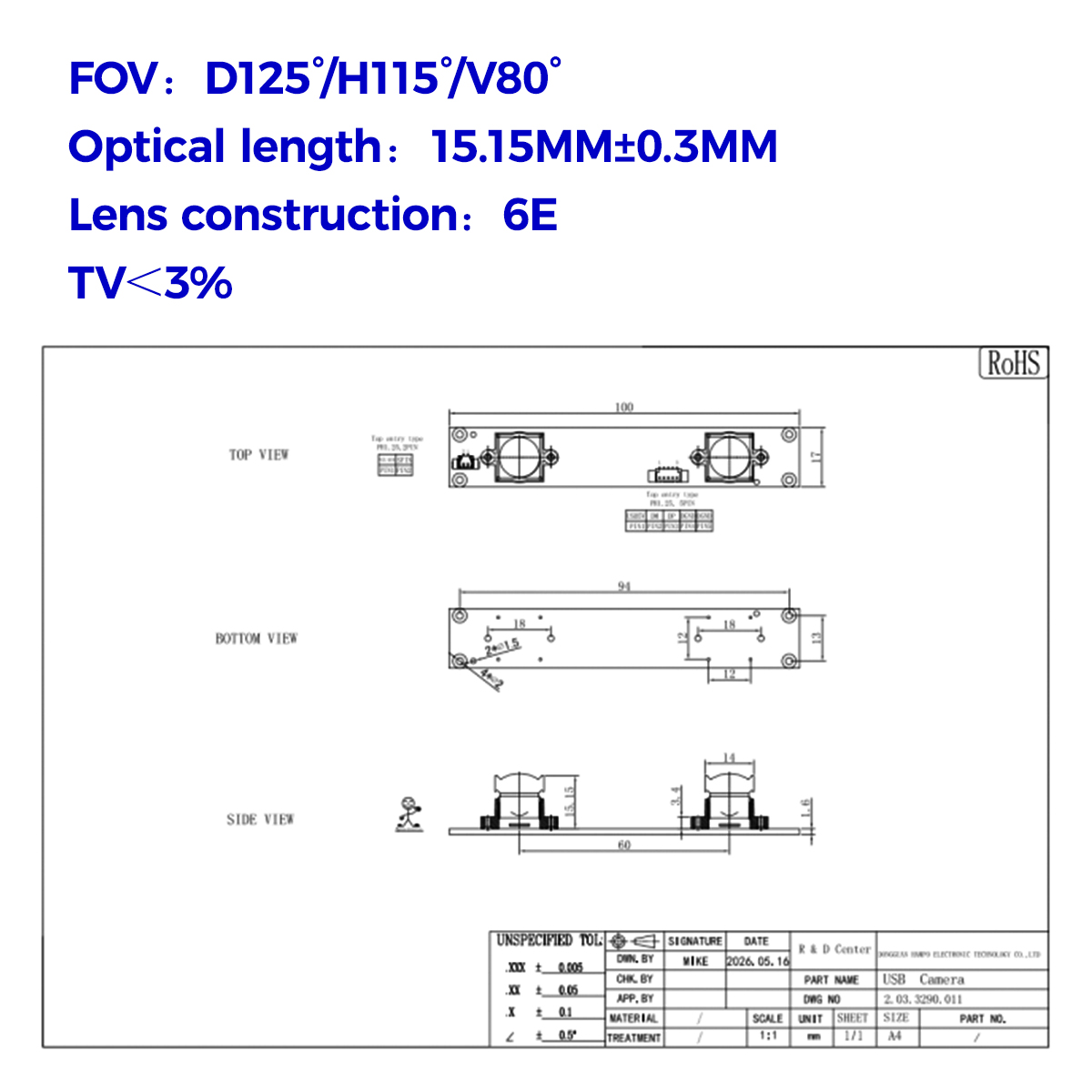

| FOV |
D= 125°/H=115°/V=80°
|
| Frame Rate | 30fps |
| Focus Type | FF |
| WDR |
Linear mode: 61.56 dB / HDR mode: 91.56 dB
|
| Output Format |
MJPG/H.264/H.265
|
| Interface | USB 2.0 |
| System Compatibility | Android/WindowsXP/7/8/10/11/Linux |
Applications
Smart Terminal & Kiosk Integration

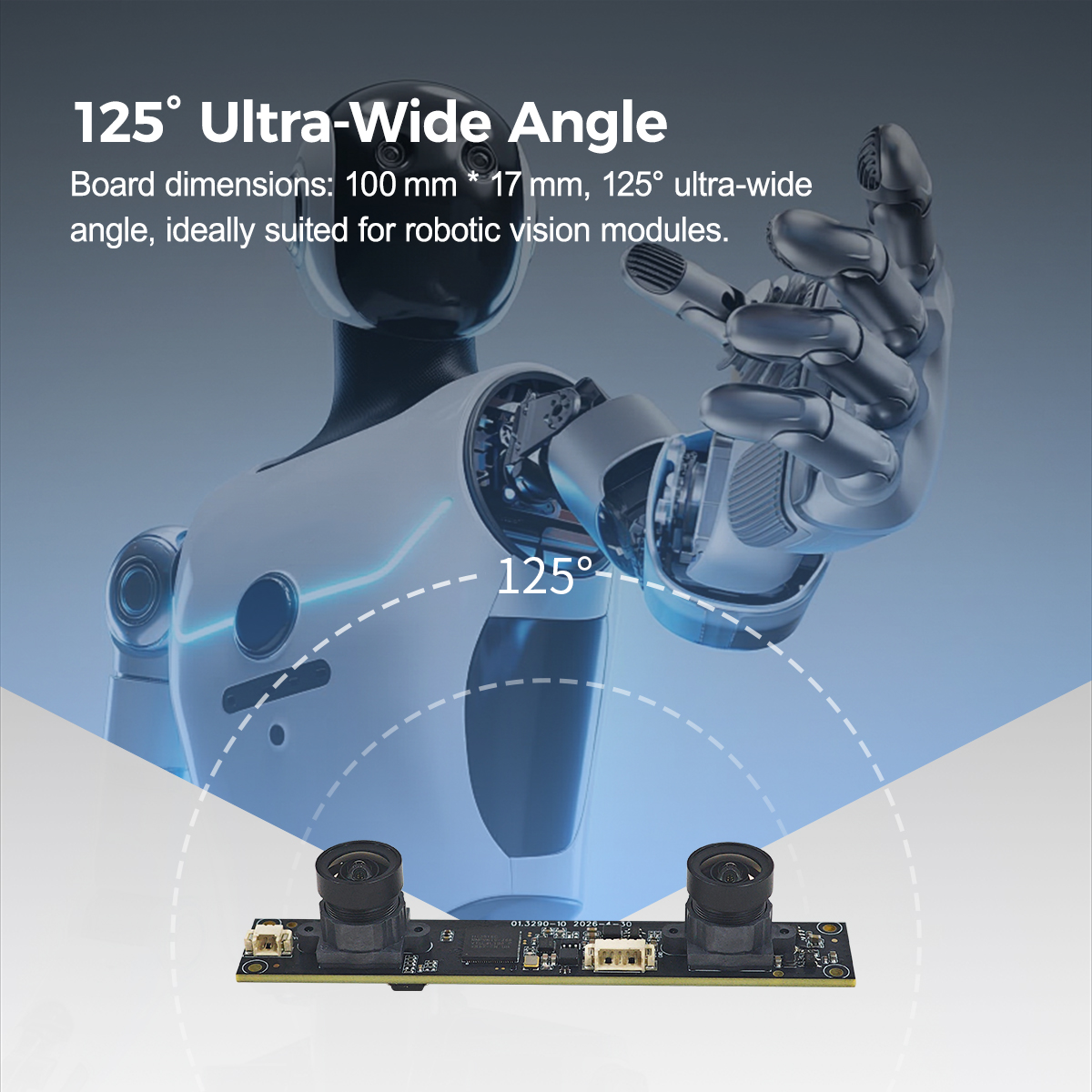

The compact PCB, fixed M12 lens and USB 2.0 plug‑and‑play compatibility allow easy embedding into self‑service kiosks, ticket vending machines and interactive information terminals. Wide 125° FOV covers a large capture area, accommodating users of different heights and distances.
3D Reconstruction & Depth Sensing
Native support for dual‑camera synchronization, ranging and calibration enables precise depth map generation and 3D point cloud output. This is essential for body scanning, object modelling, robotic picking and 3D face reconstruction in security or retail analytics.
Virtual Reality (VR) Vision & Immersive Interaction
Low‑distortion dual 125° lenses and synchronized global shutter capture natural stereoscopic video at 30fps. The module can serve as an entry‑level stereo camera for VR headset pass‑through, motion tracking or gesture recognition in interactive installations.
Surveillance & Security Systems
HDR mode (91.56dB) maintains clear details in scenes with strong backlight or rapid lighting changes, such as entrances, parking lots or ATMs. The wide FOV reduces blind spots and the dual‑camera setup enables people counting, loitering detection and object distance estimation.Embedded Vision for
Industrial & Logistics
Fixed focus, low distortion and global shutter make it suitable for barcode reading, package dimensioning (via depth detection) and robotic guidance on assembly lines. USB 2.0 and Linux/Windows support simplify integration into industrial PCs and embedded systemsLiveness & Identity Verification for
Financial Terminals
High‑resolution 3840×1080P combined with dual‑camera ranging allows simultaneous face capture and depth verification, reducing fraud risks in ATMs, banking kiosks and digital onboarding stations.
Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
Hampo has three production plants covering 13,000m2 with up to 500 employees.
Hampo is heavily invested in R&D, with some of the most experienced engineers. We work closely with clients in different industries, to develop new and cutting-edge camera solutions, using the latest technologies. Technical support is readily available to assist in trouble shooting.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(25.00%),Eastern Asia(25.00%),Western Europe(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Camera Module/PC Camera/Smart Pen
4. why should you buy from us not from other suppliers?
We are a manufacturer and specialized in research, design and develop camera module, camera, OID devices. Our workshop covers 13,000m2. We have up to 500 staff includes engineering team, QC team, sales team, manufacturing team etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
