5MP OV5645 MIPI Interface M12 Fixed Focus Camera Module
OEM/ODM 5MP High Resolution OmniVision OV5645 CMOS Sensor MIPI Interface M12 Fixed Focus Camera Module
Product Description
HAMPO-L1K-OV5645 V1.0 is a 5megapixel MIPI interface camera module, adopting a 5-megapixel OV5645 CMOS image sensor,which was built on OmniVision’s 1.4-micron OmniBSI™ pixel architecture, the OV5645 offers high performance 5-megapixel photography and 720p HD video at 60 frames per second (FPS) and 1080p HD video at 30 FPS with complete user control over formatting and output data transfer. The sensor’s 720p HD video is captured in full field-of-view with 2 x 2 binning, which doubles the sensitivity and improves the signal-to-noise ratio (SNR). A unique post-binning, re-sampling filter function removes zigzag artifacts around slant edges and minimizes spatial artifacts to deliver even sharper, crisper color images.
Specification
|
Camera Module No.
|
HAMPO-L1K-OV5645 V1.0
|
|
Resolution
|
5MP
|
|
Image Sensor
|
OV5645
|
|
Sensor Size
|
1/4″
|
|
Pixel Size
|
1.4 um x 1.4 um
|
|
EFL
|
2.27 mm
|
|
F/No.
|
2.4
|
|
Pixel
|
2592 x 1944
|
|
View Angle
|
125°(DFOV)
|
|

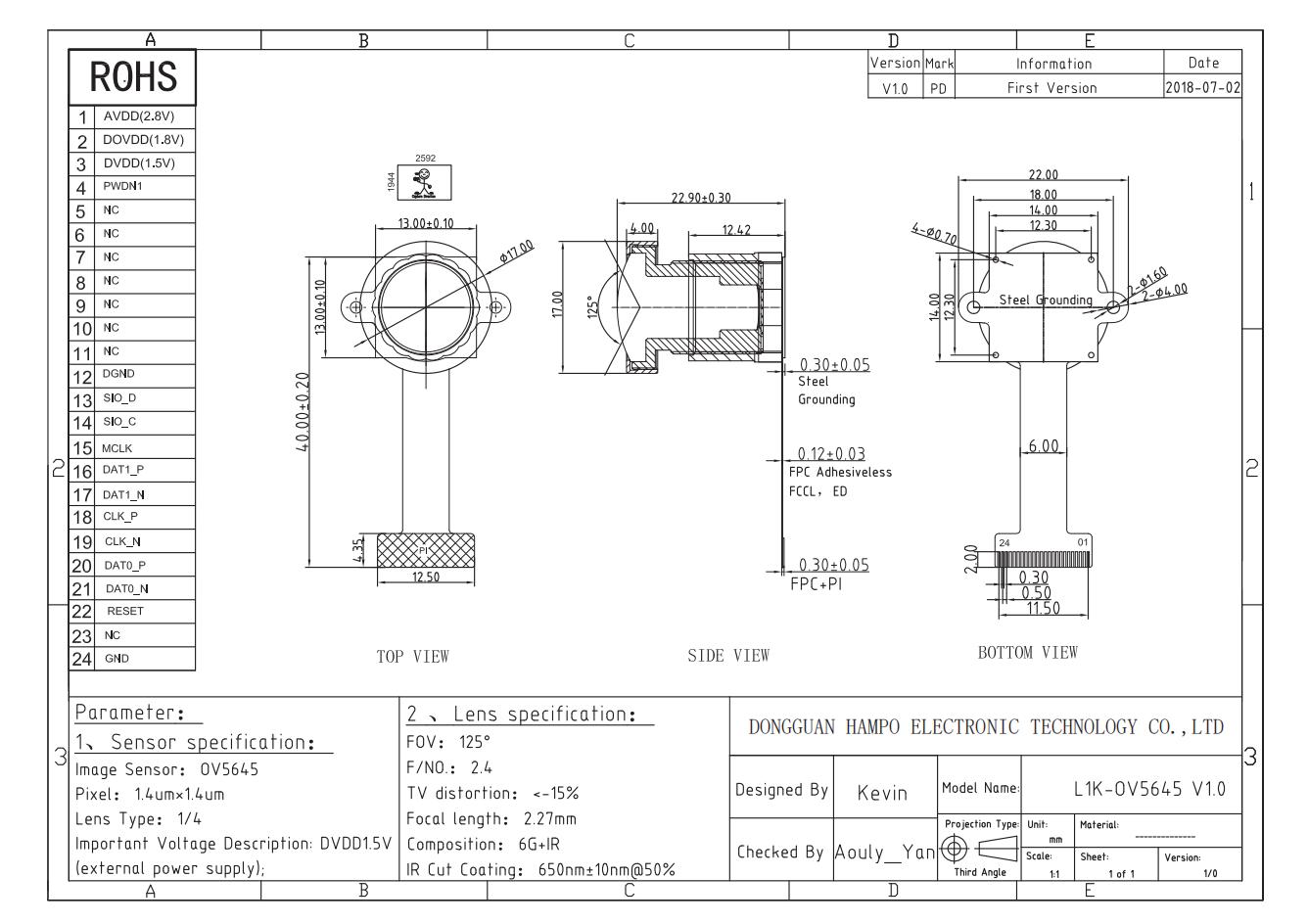

Lens Dimensions
|
13.00 x 13.00 x 22.90 mm
|
|
Module Size
|
40.00 x 22.00 mm
|
|
Focusing
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Lens Type
|
650nm IR Filter Lens
|
|
Operating Temperature
|
-30°C to +70°C
|
Key Features
1.4 µm x 1.4 µm pixel with OmniBSI+™ technology for high performance (high sensitivity, low crosstalk, low noise,improved quantum efficiency);
optical size of 1/4″
Support for internal and external frame synchronization for frame exposure mode
