1080P 2K Dvp Mipi Cam Module AF FF Ov5645 ov5640 Cmos Usb 5MP Camera Module

HAMPO-F1MA-OV5645 V2.1 is a 5megapixel MIPI interface camera module, adopting a 5-megapixel OV5647 CMOS image sensor,built on OmniVision’s 1.4-micron OmniBSI™ pixel architecture, the OV5645 offers high performance 5-megapixel photography and 720p HD video at 60 frames per second (FPS) and 1080p HD video at 30 FPS with complete user control over formatting and output data transfer.



Support: OEM/ODM, Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

DATASHEET

Product Tags

High Quality Hd 5mp 1080P 2K Dvp Mipi csi Ip Cam Module AF FF Ov5645 ov5640 Cmos Usb 5megapixel Camera Module

Product Description
HAMPO-F1MA-OV5645 V2.1 is a 5megapixel MIPI interface camera module, adopting a 5-megapixel OV5645 CMOS image sensor,built on OmniVision’s 1.4-micron OmniBSI™ pixel architecture, the OV5645 offers high performance 5-megapixel photography and 720p HD video at 60 frames per second (FPS) and 1080p HD video at 30 FPS with complete user control over formatting and output data transfer.
The sensor’s 720p HD video is captured in full field-of-view with 2 x 2 binning, which doubles the sensitivity and improves the signal-to-noise ratio (SNR). A unique post-binning, re-sampling filter function removes zigzag artifacts around slant edges and minimizes spatial artifacts to deliver even sharper, crisper color images.
Specification
 Camera Module No.
HAMPO-F1MA-OV5645 V2.1
Resolution
5MP
Image Sensor
OV5645
Sensor Size
1/4″
Pixel Size
1.4 um x 1.4 um
EFL
3.29mm
F/No.
2.8
Pixel
2592 x 1944
View Angle
68.7°(DFOV) 58.1°(HFOV) 45.0°(VFOV)
Lens Dimensions
8.50 x 8.50 x 5.17 mm
Module Size
36.14 x 8.50mm
Focusing
Auto Focus
Interface
MIPI
 Lens Type
650nm IR Filter Lens
Operating Temperature
-30°C to +70°C

Key Features

1.4 µm x 1.4 µm pixel with OmniBSI+™ technology for high performance (high sensitivity, low crosstalk, low noise,improved quantum efficiency);

optical size of 1/4″;
image quality controls: color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defectivepixelcanceling, and noise canceling.
Applications
FAQ
1.What’s the sensor this MIPI camera module adopt?
Omnivision OV5645
2.Are you factory or trade company?
We are factory and have our own production line with 100 levels of dust-free workshops professional trained production workers.
3.Could you offer OEM&ODM service?
Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
4.Do you guarantee the quality of products?
We offer 2 years warranty service and introduced complete quality management system as well as rigorous technical standards.

  • Previous:
  • Next:

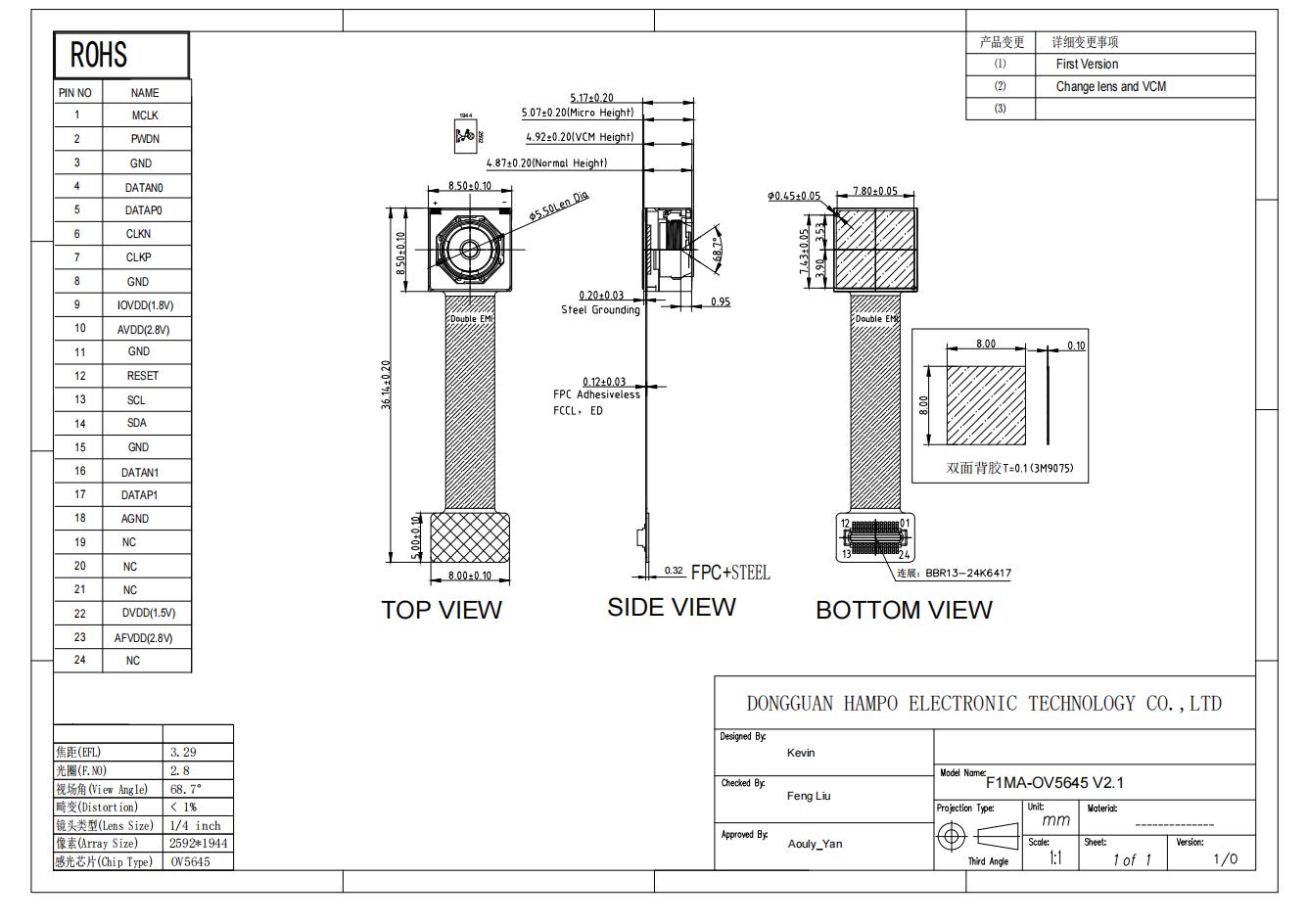

  • HAMPO-F1MA-OV5645 V2.1_00
