5mp OV5640 Fixed Focus MIPI Interface Camera Module
5mp OV5640 CMOS Sensor Module Fixed Focus MIPI Interface Camera Module for mobile imaging smart vision
Product Description
HAMPO-A6MF-OV5640-1B V1.0 is a 5megapixel MIPI interface camera module, adopting a 5-megapixel OV5640 CMOS image sensor,which enables 720p HD video at 60 frames per second (fps) and 1080p HD video at 30 fps with complete user control over formatting and output data transfer. The 720p/60 HD video is captured in full field of view (FOV) with 2 x 2 binning, which doubles the sensitivity and improves the signal-to-noise ratio (SNR). Additionally, a unique post-binning re-sampling filter function removes zigzag artifacts around slant edges and minimizes spatial artifacts to deliver even sharper, crisper color images. To further improve camera performance and user experience, the OV5640 features an internal anti-shake engine for image stabilization, and it supports Scalado™ tagging for faster image preview and zoom.

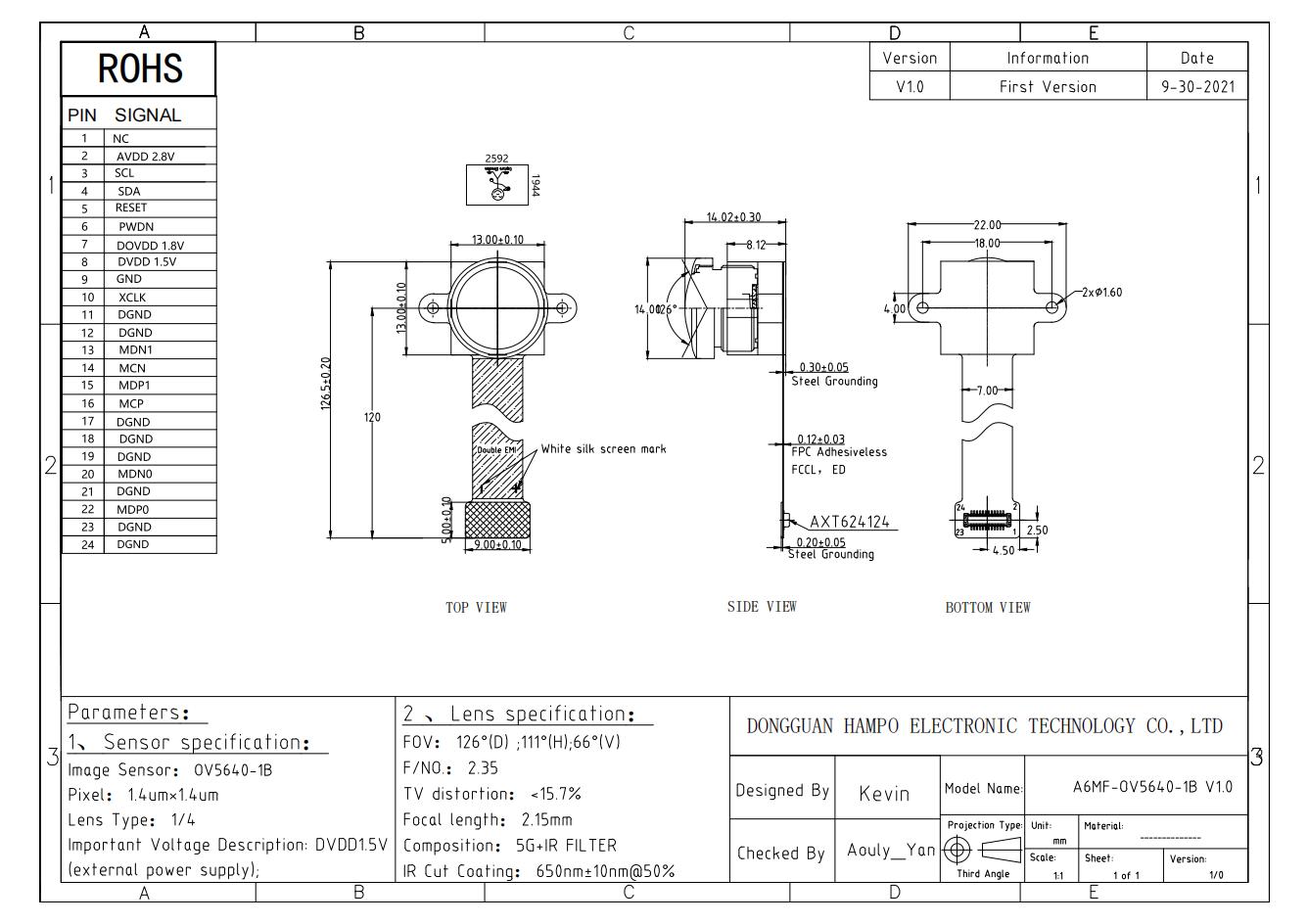

Specification
|
Camera Module No.
|
HAMPO-A6MF-OV5640-1B V1.0
|
|
Resolution
|
5MP
|
|
Image Sensor
|
OV5640
|
|
Sensor Size
|
1/4"
|
|
Pixel Size
|
1.4 um x 1.4 um
|
|
EFL
|
2.15 mm
|
|
F/No.
|
2.35
|
|
Pixel
|
2592 x 1944
|
|
View Angle
|
126.0°(DFOV) 111.0°(HFOV) 66.0°(VFOV)
|
|
Lens Dimensions
|
13.00 x 13.00 x 14.02 mm
|
|
Module Size
|
126.50 x 22.00 mm
|
|
Focusing
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Lens Type
|
650nm IR Filter Lens
|
|
Operating Temperature
|
-30°C to +70°C
|
Key Features
active array size: 2592 x 1944
operating: -30°C to 70°C junction temperature
lens size: 1/4"
max S/N ratio: 36 dB
dynamic range: 68 dB @ 8x gain
maximum image transfer rate:
QSXGA (2592x1944): 15 fps
1080p: 30 fps
1280x960: 45 fps
720p: 60 fps
VGA (640x480): 90 fps
sensitivity: 600 mV/Lux-sec
shutter: rolling shutter / frame exposure
maximum exposure interval: 1964 x tROW
pixel size: 1.4 µm x 1.4 µm
dark current: 8 mV/s @ 60°C junction temperature
image area: 3673.6 µm x 2738.4 µm
package dimensions: 5985 µm x 5835 µm
operating: -30°C to 70°C junction temperature
lens size: 1/4"
max S/N ratio: 36 dB
dynamic range: 68 dB @ 8x gain
maximum image transfer rate:
QSXGA (2592x1944): 15 fps
1080p: 30 fps
1280x960: 45 fps
720p: 60 fps
VGA (640x480): 90 fps
sensitivity: 600 mV/Lux-sec
shutter: rolling shutter / frame exposure
maximum exposure interval: 1964 x tROW
pixel size: 1.4 µm x 1.4 µm
dark current: 8 mV/s @ 60°C junction temperature
image area: 3673.6 µm x 2738.4 µm
package dimensions: 5985 µm x 5835 µm
