5MP OV5647 Sensor Auto Focus Mipi Camera Module

Hello, welcome to consult our products!

5MP OV5647 Sensor Auto Focus Mipi Camera Module

HAMPO-H7MA-OV5647 V1.0 is a 5megapixel MIPI interface camera module, adopting a 5-megapixel OV5647 CMOS image sensor,which was built on OmniVision’s proprietary 1.4-micron OmniBSI™ backside illumination pixel architecture. The OV5647 camera module delivers 5-megapixel photography in addition to high frame rate of 720p/60 and 1080p/30 high-definition (HD) video capture in an industry standard camera module size of 8.5 x 8.5 x 5 mm, making it an ideal solution for the mainstream mobile phone market.



Support: OEM/ODM, Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

DATASHEET

Product Tags

5MP OV5647 Sensor Auto Focus Mini Camera Module Mipi 2K Camera Module

HAMPO-H7MA-OV5647 V1.0 is a 5megapixel MIPI interface camera module, adopting a 5-megapixel OV5647 CMOS image sensor,which was built on OmniVision's proprietary 1.4-micron OmniBSI™ backside illumination pixel architecture. The OV5647 camera module delivers 5-megapixel photography in addition to high frame rate of 720p/60 and 1080p/30 high-definition (HD) video capture in an industry standard camera module size of 8.5 x 8.5 x 5 mm, making it an ideal solution for the mainstream mobile phone market.

OmniVision’s 1.4-micron OmniBSI pixel delivers best-in-class low light sensitivity (680-mV/lux-sec), low profile z-height and a small footprint, making it ideal for the ultra-compact camera modules used in mobile phones and notebooks. The superior pixel performance of the OV5647 enables 720p HD video at 60 frames per second (fps) and 1080p HD video at 30 fps, with complete user control over formatting and output data transfer. The 720p/60 HD video is captured in full field of view with 2 x 2 binning, which doubles the sensitivity and improves the signal-to-noise ratio. Additionally, a post-binning re-sampling filter function unique to the OV5647 removes image artifacts around edges and minimizes spatial artifacts to deliver even sharper, crisper color images.

Specification
 Camera Module No.
HAMPO-H7MA-OV5647 V1.0
Resolution
5MP
Image Sensor
OV5647
Sensor Size
1/4"
Pixel Size
1.4 um x 1.4 um
EFL
3.2 mm
F/No.
2.8
Pixel
2592 x 1944
View Angle
70.0°(DFOV) 58.6°(HFOV) 45.3°(VFOV)
Lens Dimensions
8.50 x 8.50 x 4.97 mm
Module Size
15.60 x 8.50 mm
Focusing
Auto Focus
Interface
MIPI
 Lens Type
650nm IR Filter Lens
Operating Temperature
-30°C to +70°C

Key Features

optical size of 1/4"
automatic image control functions:
-automaticexposure control (AEC)
-automaticwhite balance (AWB)
-automaticband filter (ABF)
-automatic50/60 Hz luminance detection
-automaticblack level calibration (ABLC)
programmable controls for frame rate,
AEC/AGC 16-zone size/position/weight
control, mirror and flip, cropping,
windowing, and panning
image quality controls: lens correction,
defective pixel canceling
support for output formats: 8-/10-bit
raw RGB data
support for video or snapshot
operations
Applications

  • Previous:
  • Next:

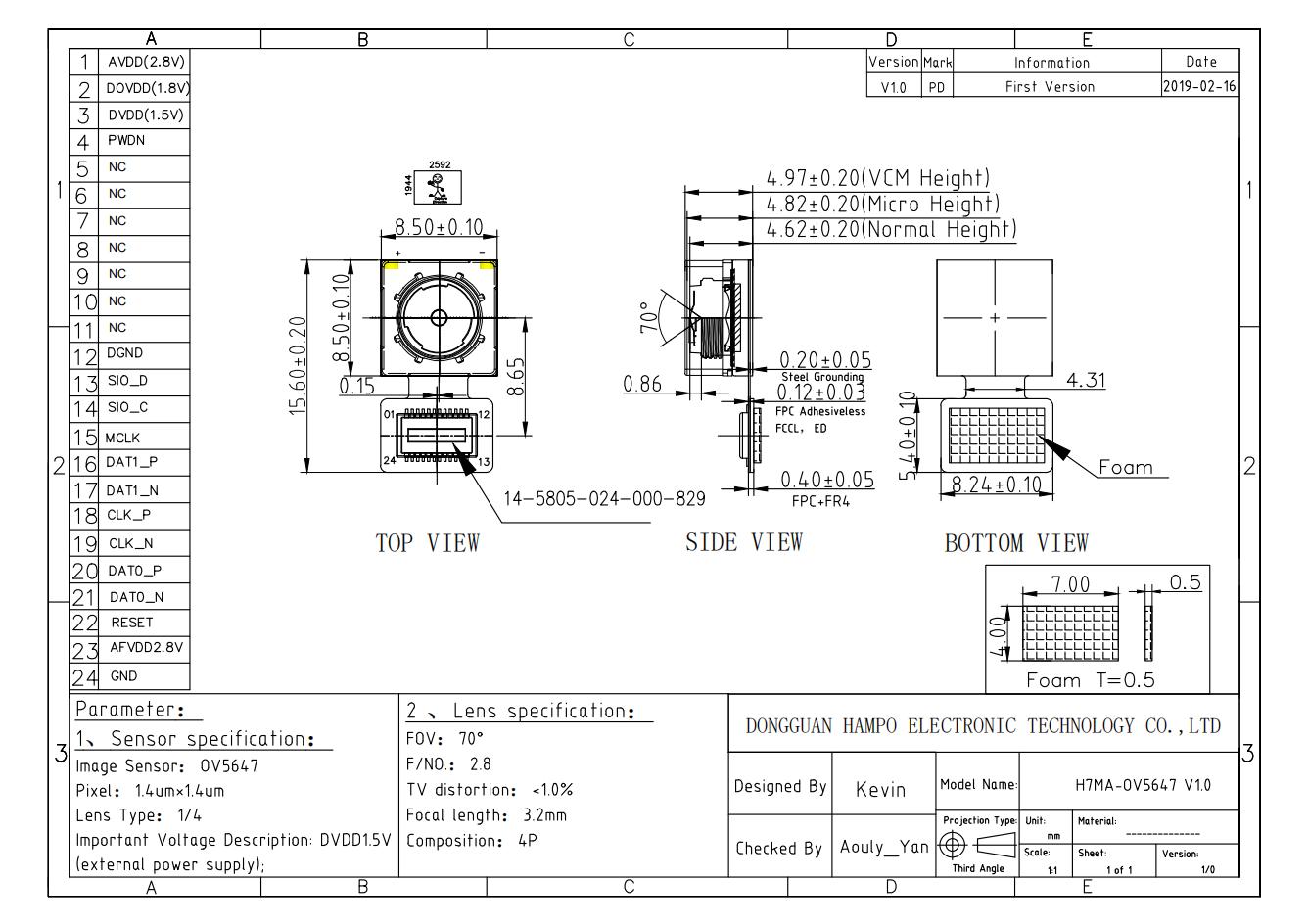

  • HAMPO-H7MA-OV5647 V1.0_00
