CAMERA MODULE

12MP OV12895 MIPI Interface M12 Fixed Focus Camera Module

Hello, welcome to consult our products!

12MP OV12895 MIPI Interface M12 Fixed Focus Camera Module

HAMPO-K5MF-OV12895 V1.2 is a 12Megapixel Mipi interface camera module, adopting OV12895 image sensor, which could captures ultra-high-resolution 4K2K video at 60 frames per second (fps) and full high-definition (FHD) 1080p videos at 240 fps with full field of view, enabling high-quality slow-motion video capture.



Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

DATASHEET

FAQ

Product Tags

Factory Direct Supply 12MP OmniVision OV12895 MIPI Interface M12 Fixed Focus Camera Module MIPI Camera Module

Product Description
HAMPO-K5MF-OV12895 V1.2 is a 12Megapixel Mipi interface camera module, adopting OV12895 image sensor, which could captures ultra-high-resolution 4K2K video at 60 frames per second (fps) and full high-definition (FHD) 1080p videos at 240 fps with full field of view, enabling high-quality slow-motion video capture.
HAMPO-K5MF-OV12895 V1.2(3)
HAMPO-K5MF-OV12895 V1.2(1)
HAMPO-K5MF-OV12895 V1.2(2)

Specification

 Camera Module No.
HAMPO-K5MF-OV12895 V1.2
Resolution
12MP
Image Sensor
OV12895
Sensor Size
1/2.3"
Pixel Size
1.55 um x 1.55 um
EFL
3.0 mm
F/No.
2.4
Pixel
4096 x 3072
View Angle
160.0°(DFOV) 125.0°(HFOV) 92.0°(VFOV)
Lens Dimensions
14.80 x 14.80 x 21.82 mm
Module Size
40.04 x 23.00 mm
Focusing
Fixed Focus
Interface
MIPI
Auto Focus VCM Driver IC
NONE
 Lens Type
650nm IR Cut
Operating Temperature
-20°C to +85°C

Key Features

1.55 µm x 1.55 µm pixel
optical size of 1/2.3"
5° CRA
enhanced dual camera support
high-speed architecture for
fast frames per second (fps)
programmable controls for:
- gain
- exposure
- frame rate
- image size
- horizontal mirror
- vertical flip
- cropping
- panning
- windowing
support for image sizes:
- 12MP (4096x3072)
- 4K2K (3840x2160)
- 1080p (1920x1080), and more

  • Previous:
  • Next:

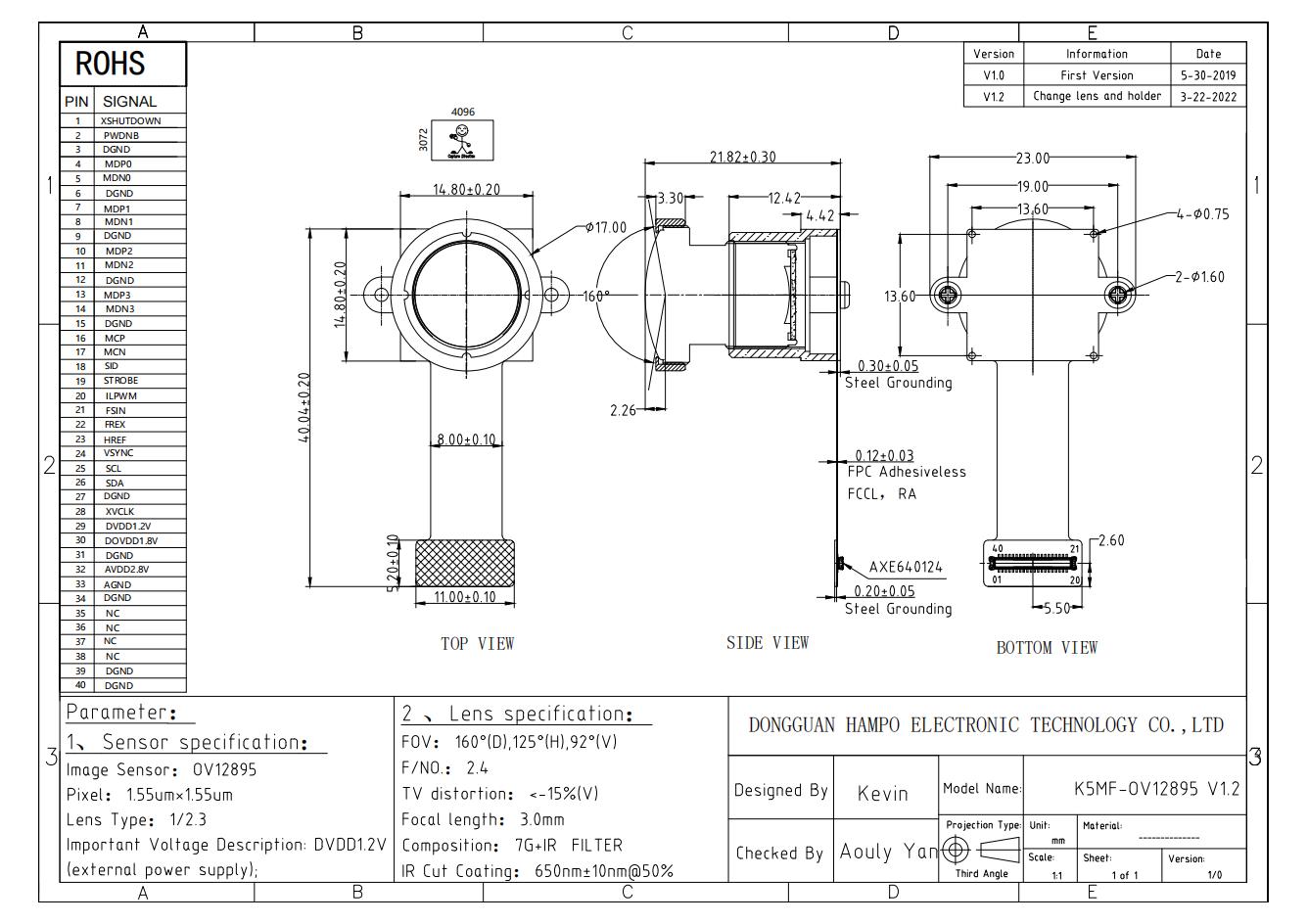

  • HAMPO-K5MF-OV12895 V1.2_00
