12MP IMX377 MIPI Interface M14 Fixed Focus Camera Module
Mipi Camera Module 12MP Sony IMX377 MIPI Interface 90degree View of Angle M14 Fixed Focus Camera Module
|
Camera Module No.
|
HAMPO-B9MF-IMX377 V1.0
|
|
Resolution
|
12MP
|
|
Image Sensor
|
IMX377
|
|
Sensor Size
|
1/2.3"
|
|
Pixel Size
|
1.55um x 1.55 um
|
|
EFL
|
4.1mm
|
|
F/No.
|
2.5
|
|
Pixel
|
4056 x 3046
|
|
View Angle
|
90.0°(DFOV) 77.0°(HFOV) 59.0°(VFOV)
|
|

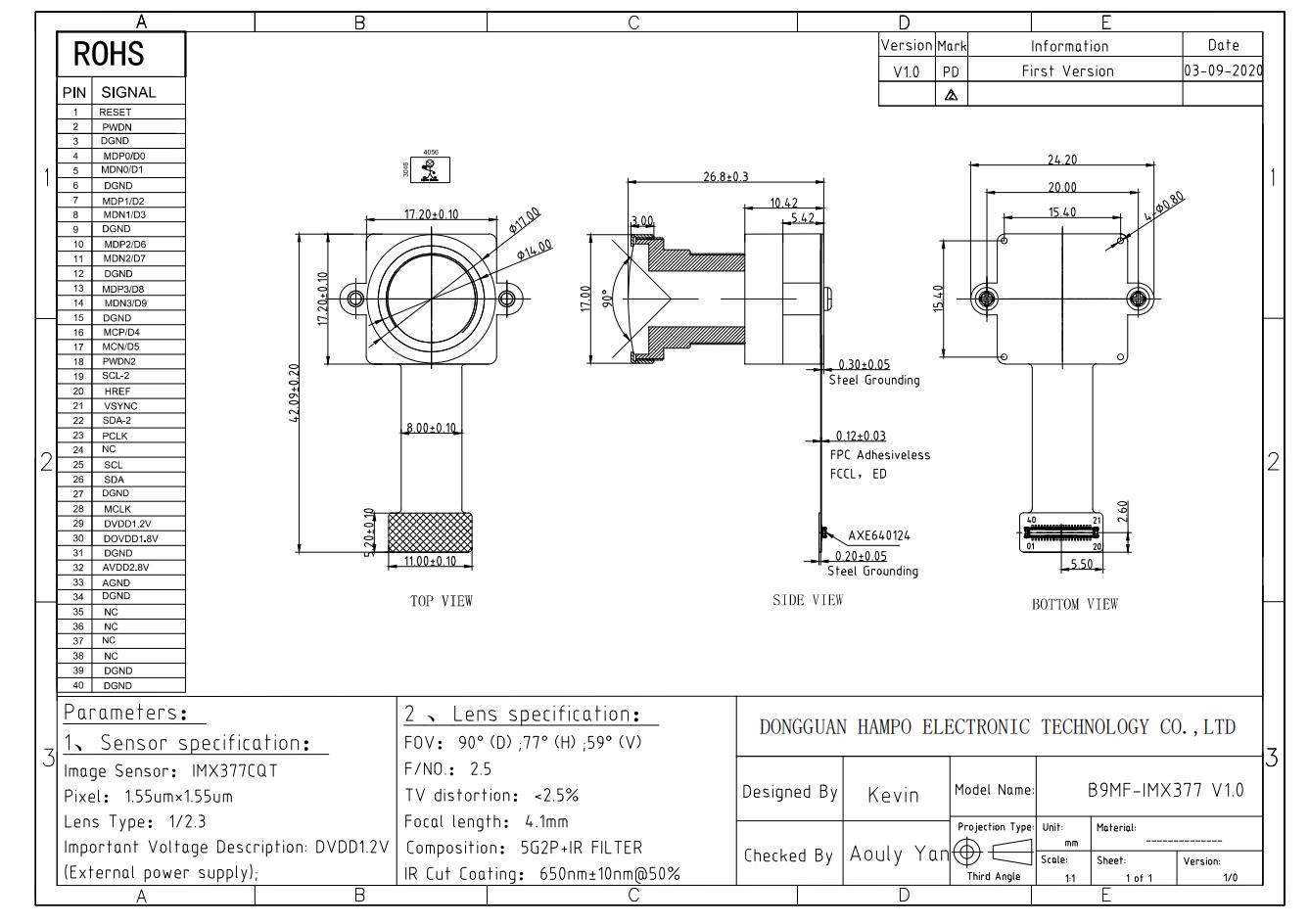

Lens Dimensions
|
17.20 x 17.20 x 26.80 mm
|
|
Module Size
|
42.09 x 24.20 mm
|
|
Focusing
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Auto Focus VCM Driver IC
|
None
|
|
Lens Type
|
650nm IR Cut
|
|
Operating Temperature
|
-20°C to +70°C
|
Key Features
The 12MP IMX377 MIPI camera module has the feactures as below:
◆Input clock frequency 6 to 27 MHz
◆MIPI Specifications (CSI-2 high-speed serial interface)
◆All-pixel scan mode
Various readout modes (*)
◆High-sensitivity, low dark current, no smear, excellent anti-blooming characteristics
◆Vertical and horizontal arbitrary cropping function
◆Variable-speed shutter function (minimum unit: 1 horizontal period)
◆Low power consumption
◆H driver, V driver and I2C communication circuit on chip
◆CDS/PGA on chip: Gain +27 dB (step pitch 0.1 dB)
◆10-bit/12-bit A/D conversion on chip
◆R, G, B primary color mosaic filters on chip
◆All-pixel simultaneous reset supported
◆98-pin high-precision ceramic package
