Black and White Dual Lens WDR USB Camera Module

Hello, welcome to consult our products!

Black and White Dual Lens WDR USB Camera Module

003-0511/002-0447 is a synchronized dual lens USB camera module, with 1/2.7″ CMOS AR0230 & RX2719 sensor, the resolution is 1920*1080 &1920*1080P. Wide dynamic rage could reach 96dB Max.Binocular dual lens camera can obtain depth range data without identifying the target, but the single lens camera must identifying the target first, that’s why the dual lens cameras being used widely on some industrial like face recognition, intelligent traffic etc. Smaller error, and more accurate.



Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

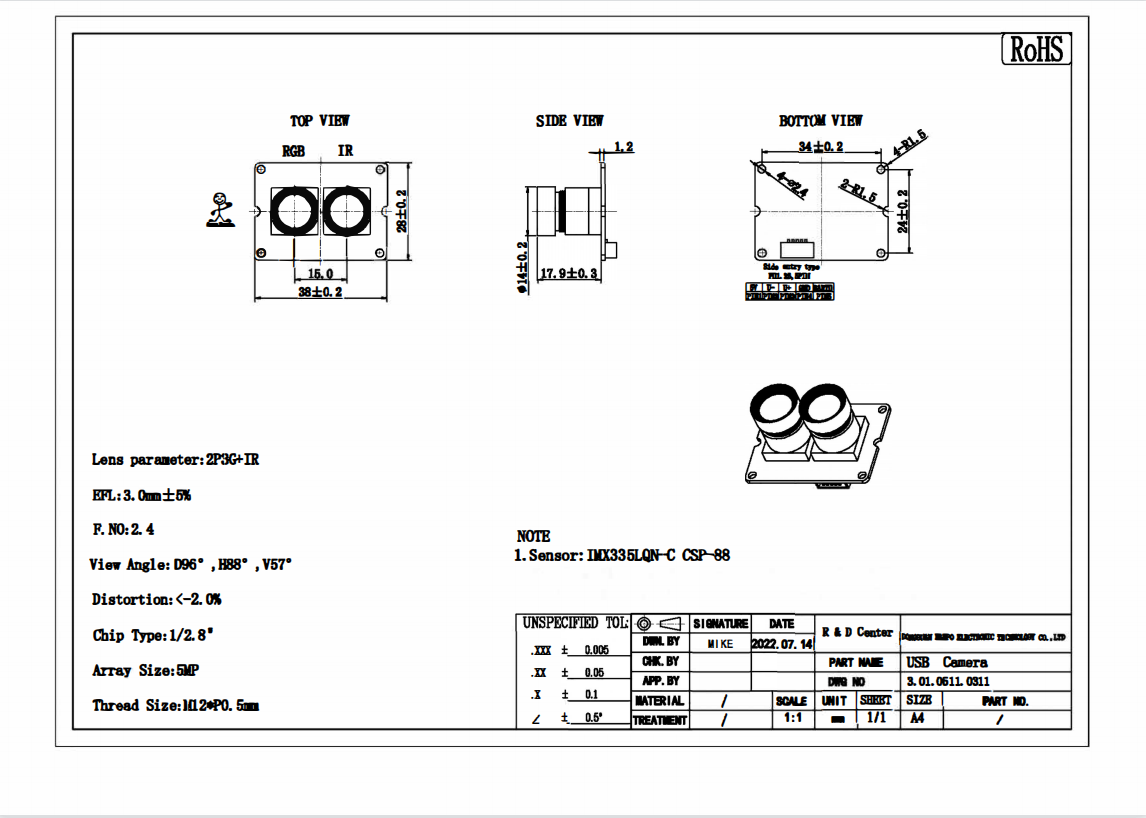

datasheet

Product Tags

HD 1080P Camera Module USB No-Drive Binocular Wide Dynamic 3D Detection Passenger Witness Visiting Aircraft USB Camera Module

003-0511 is a dual lens USB camera, two Synchronized camera, 3MP+1.3MP camera module at 30 fps high frame rate. This tiny 38mmx28mm camera board can be installed in any machine of the ticket gate, face recognition, bioassay, and other machine vision application.

01

WDR Dual Lens Camera Module

Features:

1. Dual Lens AI Camera & Bioassay: This is a binocular camera module which features dual AR0230 & RX2719 cameras board, 3MP+1.3MP for two cameras. It is suitable for AI vision applications like depth vision and stereo vision.



2. WDR USB Dual Lens Camera Module: WDR dual lens usb camera module use AR0230 image sensor with a 100db wide dynamic rage which is the high standard in terms of image quality and sensitivity performance. The image sensor helps to produce sharp images effectively. 3MP+1.3MP usb camera module with 89degree megapixel lens, the cameras module can meet most capturing and video requirements.



3. Plug & Play: Drive-free USB camera module is very easy to use, just need to plug the camera to USB port, no need to download or install any drivers. High speed USB 2.0 USB camera also support OTG protocol(UVC).



4. Have a clear image on backlight: It have a clear image even if you take the image under  backlight.



5. Wide Compatibility: This USB camera widely compatible with Windows Win XP/Vista/Win7/Win8 /Win10, Linux with UVC

02

03



04

05







07

SPEC

Model
003-0511
002-0447
Max Resolution
1920*1080
1920*1080
Sensor Size
1/2.7″
1/2.7″
Pixel Size
3.0μm*3.0μm
3.0μm*3.0μm
Wide Dynamic range
96DB
76DB
Output Format
MJPG/YUY2
MJPG/YUY2
Focus
Fixed focus
Frame rate
30fps
Voltage
DC 5V
Working current
MAX 500mA
Interface
USB 2.0
Storage Temperature
-20°C to +70°C
System compatibility
1) Windows XP(SP2,SP3)/Vista/7/8/10

2) Linux or OS with UVC driver
PCBA Size
38*28mm
FOV
D=95°
TTL
15.29mm
Lens construction
2G2P
Thread size
M12*P0.5mm



Applications

This camera board can be installed in most hidden and narrow position for Face recognition,ATM,Access control,Bioassay;
