OV9714 Fixed Focus Lens 1MP Mini MIPI Camera Module
OV9714 Fixed Focus Lens 1MP Mini MIPI Camera Module

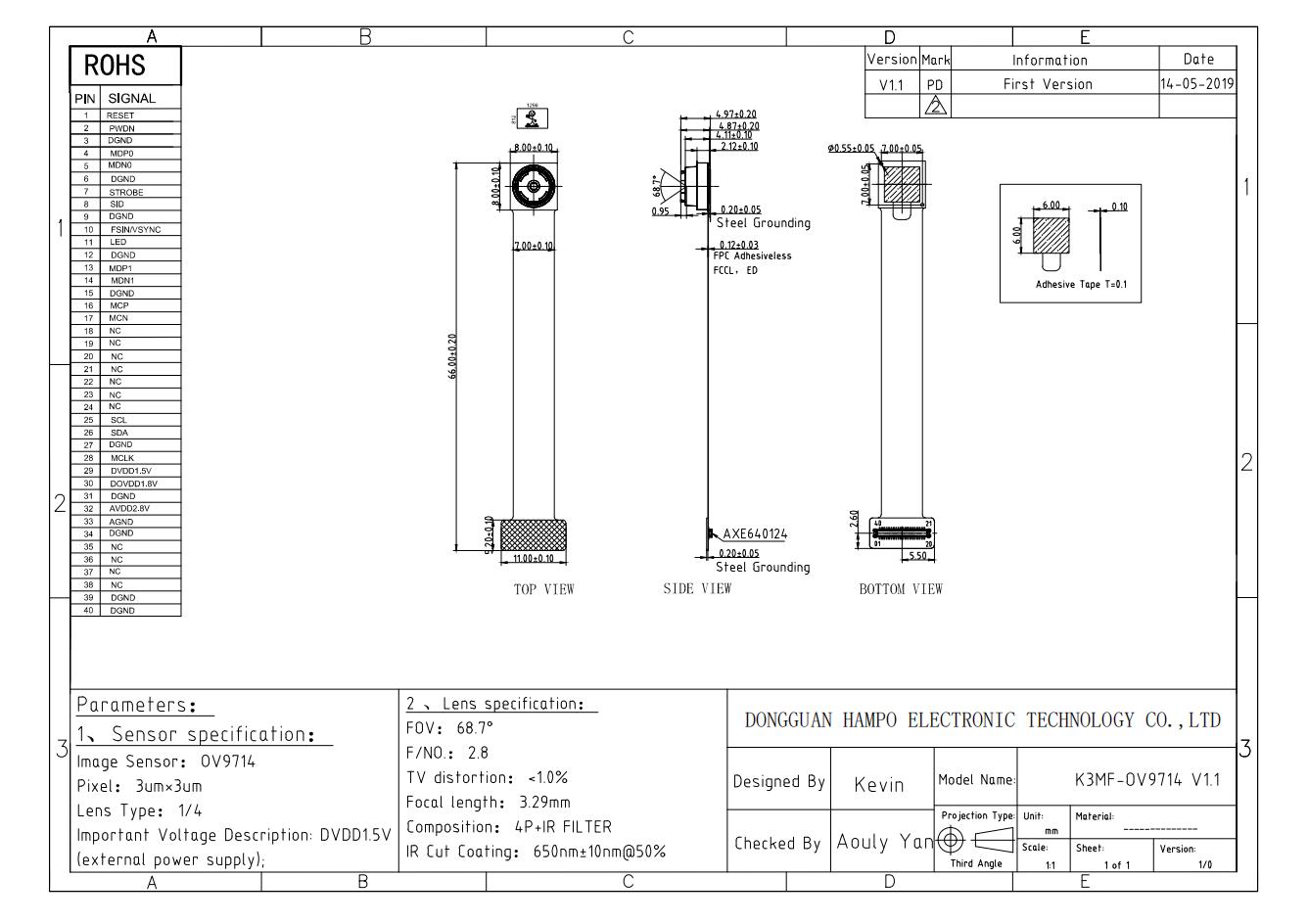

HAMPO-K3MF-OV9714 V1.1 is a 1MP OmniVision OV9714 MIPI Interface Fixed Focus Camera Module.It uses Narrow pitch connectors (0.4mm pitch).
APPLICATIONS :Recommended for board-to-FPC connections of mobile equipment, such as cellular phones, smart phones, laptops, and portable music players.
Specification
|
Camera Module No.
|
HAMPO-K3MF-OV9714 V1.1
|
|
Resolution
|
1MP
|
|
Image Sensor
|
OV9714
|
|
Sensor Type
|
1/4"
|
|
EFL
|
3.29 mm
|
|
F.NO
|
2.80
|
|
Pixel
|
1296 x 816
|
|
View Angle
|
68.7°(DFOV) 58.1°(HFOV) 45.0°(VFOV)
|
|
Lens Dimensions
|
8.00 x 8.00 x 4.97 mm
|
|
Module Size
|
66.00 x 11.00 mm
|
|
Module Type
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Auto Focus VCM Driver IC
|
None
|
|
Operating Temperature
|
-30°C to +85°C
|
|
Mating Connector
|
AXE540124
|
Key Features
*automatic black level calibration (ABLC)
*programmable controls for frame rate, mirror and flip, cropping and windowing
*image quality controls: lens correction and defective pixel canceling
*supports output formats: 8/10/12-bit RAW RGB (MIPI/LVDS)
*supports horizontal and vertical sub-sampling
*supports images sizes: 1280x800, 640x400, 320x200, and 160x100
*fast mode switching
