Customized 1MP OV9712 DVP Parallel MIPI Camera Module
Customized OEM Fixed Focus AXT524124 Mating Connector OV9712-1D 1 MP DVP Parallel Camera Module
Customized OEM Fixed Focus AXT524124 Mating Connector OV9712-1D 1 MP DVP Parallel Camera Module

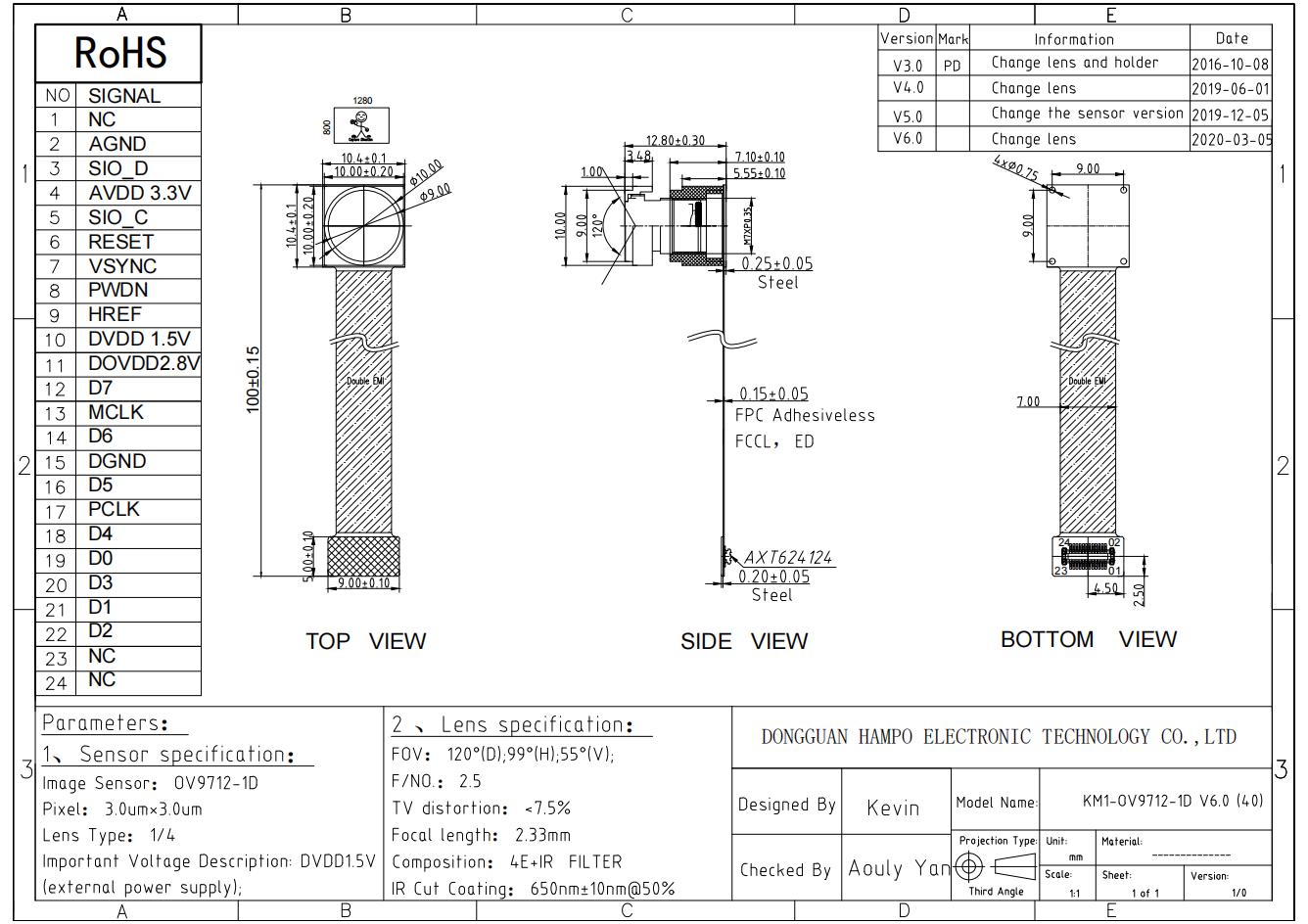

HAMPO-KM1-OV9712-1D V6.0 is a 1MP OmniVision OV9712-1D DVP Parallel Interface Fixed Focus Camera Module.It uses NARROW PITCH (0.4 mm) CONNECTORS F4S SERIES.APPLICATIONS :Compact portable devices “Cellular phones, DVC, Digital cameras, etc”.
The OV9712 CameraChip image sensor is built on OMNIVISION’s OmniPixel3-HS™ high-sensitivity pixel technology. This technology enables delivery of outstanding scene reproduction in a variety of lighting conditions, which is a critical capability for home security cameras operating in indoor, outdoor, or low-light environments. The 1/4-inch OV9712 can capture 720p HD video at 30 frames per second. The OV9712 pairs with the OV788 video processor chip to deliver instant-on video recording and streaming over Wi-Fi networks.
Specification
|
Camera Module No.
|
HAMPO-KM1-OV9712-1D V6.0
|
|
Resolution
|
1MP
|
|
Image Sensor
|
OV9712-1D
|
|
Sensor Type
|
1/4"
|
|
EFL
|
2.33
|
|
F.NO
|
2.80
|
|
Pixel
|
1280 x 800
|
|
View Angle
|
120.0°(DFOV) 99.0°(HFOV) 55.0°(VFOV)
|
|
Lens Dimensions
|
10.40 x 10.40 x 12.80 mm
|
|
Module Size
|
100.00 x 10.40 mm
|
|
Module Type
|
Fixed Focus
|
|
Interface
|
DVP Parallel
|
|
Auto Focus VCM Driver IC
|
None
|
|
Operating Temperature
|
-30°C to +70°C
|
|
Mating Connector
|
AXT524124
|
Key Features
*high sensitivity for low-light operation
- lens correction
- defective pixel canceling
