2MP OV2732 MIPI and DVP Parallel Camera Mini Board Camera Module

Hello, welcome to consult our products!

2MP OV2732 MIPI and DVP Parallel Camera Mini Board Camera Module

HAMPO-J4K-OV2732 V3.0 is a 2MP OmniVision OV2732 MIPI and DVP Parallel Interface Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.



Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

DATASHEET

Product Tags

OEM Camera Module 2MP MIPI and DVP Parallel Camera Mini Board Camera

HAMPO-J4K-OV2732 V3.0 is a 2MP OmniVision OV2732 MIPI and DVP Parallel Interface Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.

Built on OMNIVISION’s PureCel® technology, the 1/4-inch OV2732 captures 1080p high definition (HD) video at 60 frames per second (fps), 720p HD video at 90 fps, and VGA resolution video at 120 fps. The OV2732 delivers crisp images and video, even in challenging low-light conditions.
HAMPO-J4K-OV2732 V3.0(4)
HAMPO-J4K-OV2732 V3.0(2)

Specification

 Camera Module No.
HAMPO-J4K-OV2732 V3.0
Resolution
2MP
Image Sensor
OV2732
Sensor Type
1/4"
EFL
3.29 mm
F.NO
2.80
Pixel
1920 x 1080
View Angle
68.7°(DFOV) 58.1°(HFOV) 45.0°(VFOV)
Lens Dimensions
8.00 x 8.00 x 4.90 mm
Module Size
18.50 x 12.50 mm
Module Type
Fixed Focus
Interface
MIPI and DVP Parallel
Auto Focus VCM Driver IC
None
 Operating Temperature
-40°C to +85°C
 Mating Connector
FH12-24S-0.5SH



Key Features

*automatic image control functions:- black level calibration (BLC)
*serial camera control bus (SCCB)
*defective pixel correction (DPC)
*digital video port (DVP) parallel output interface

  • Previous:
  • Next:

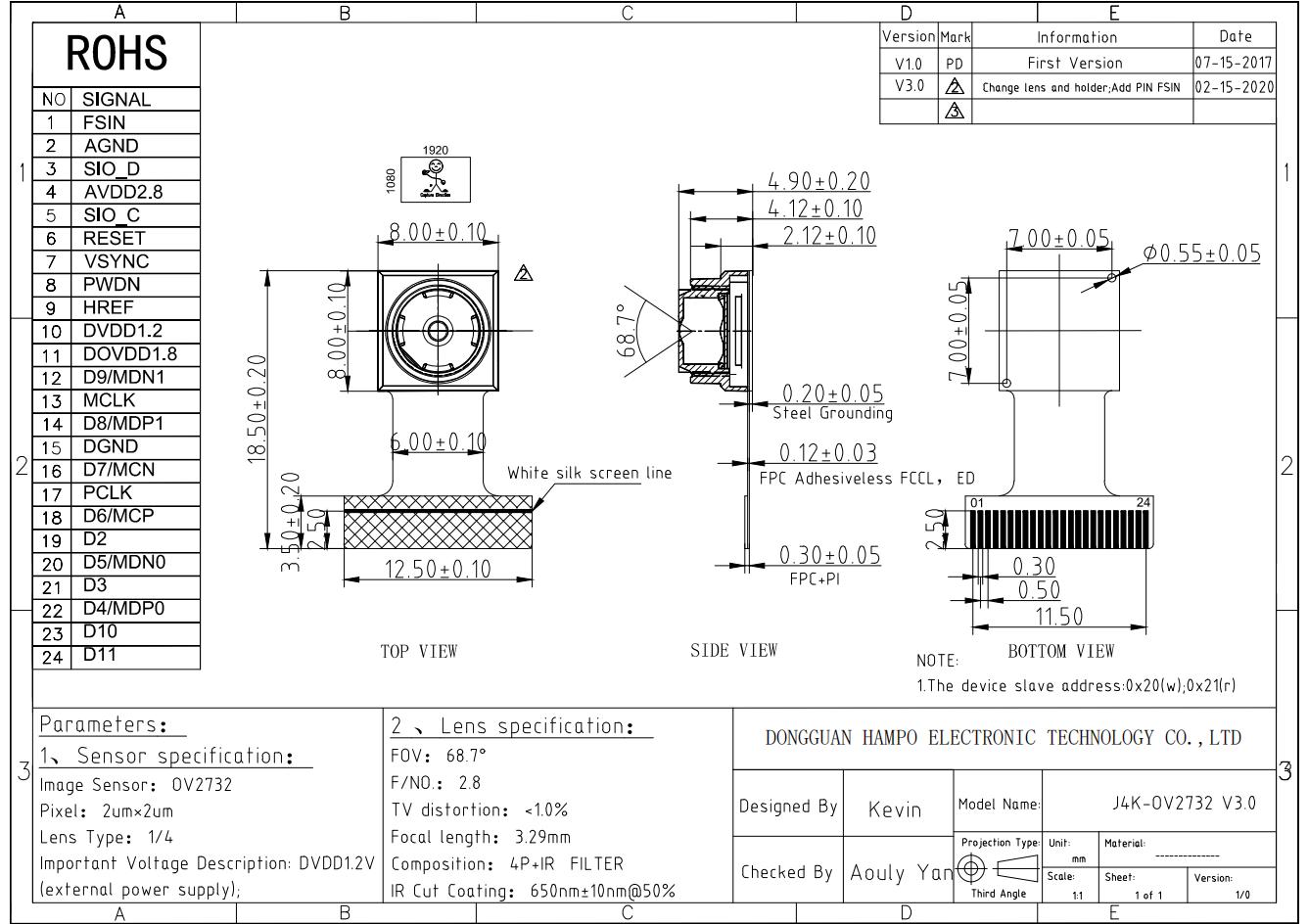

  • HAMPO-J4K-OV2732 V3.0_00
