2MP GC2053 Micro Fixed Focus MIPI Camera Module
2MP Full HD GC2053 Micro Fixed Focus MIPI Camera Module

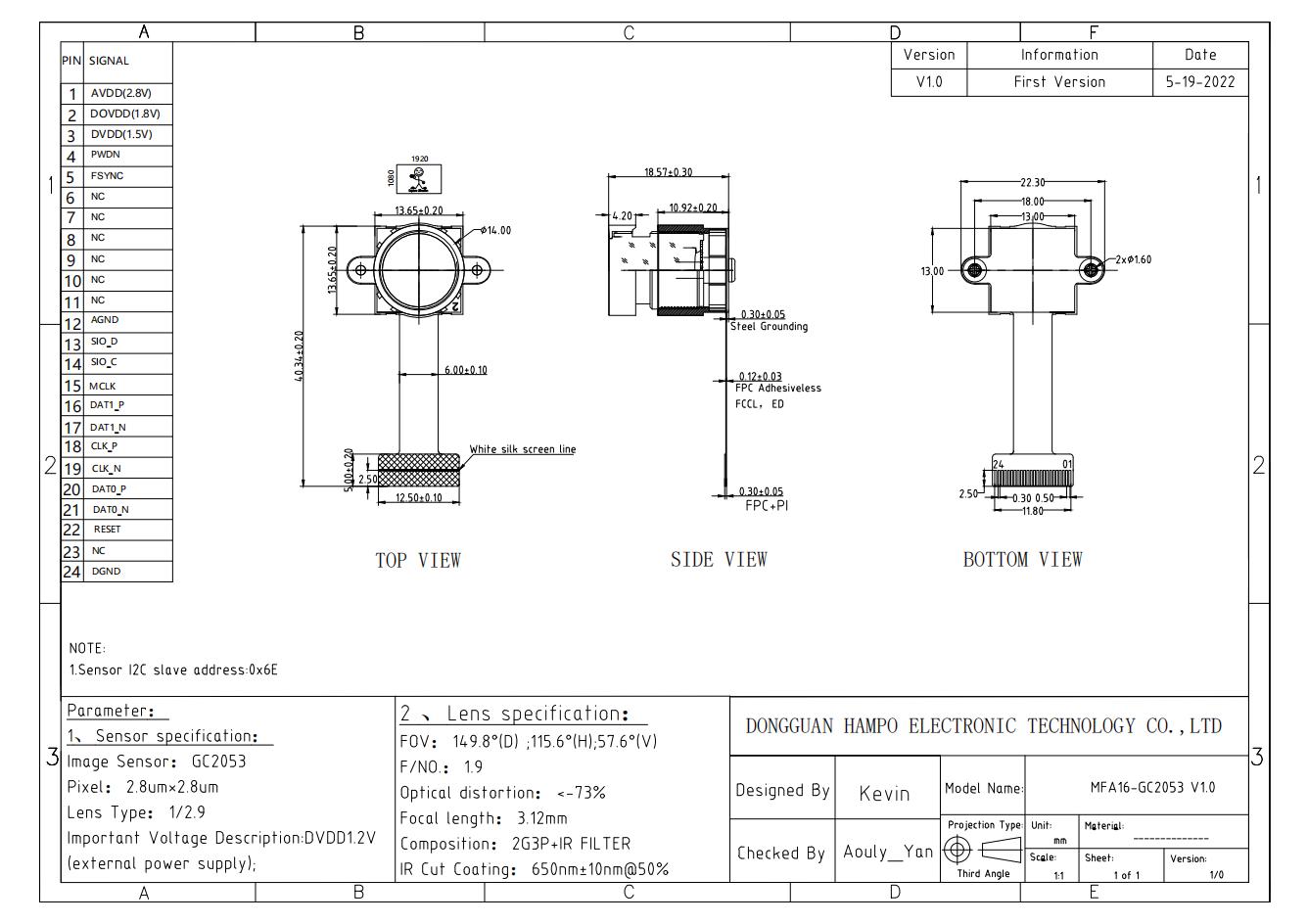

HAMPO-MFA16-GC2053 V1.0 is a 2MP GalaxyCore GC2053 MIPI Interface M12 Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.
APPLICATIONS :Notebook computers, printers, PDAs, digital cameras and other compact devices for interconnecting the main circuit board with the LCD, HDD or other device.
Specification
|
Camera Module No.
|
HAMPO-MFA16-GC2053 V1.0
|
|
Resolution
|
2MP
|
|
Image Sensor
|
GC2053
|
|
Sensor Type
|
1/2.9"
|
|
EFL
|
3.12 mm
|
|
F.NO
|
1.90
|
|
Pixel
|
1920 x 1080
|
|
View Angle
|
149.8°(DFOV) 115.6°(HFOV) 57.6°(VFOV)
|
|
Lens Dimensions
|
13.65 x 13.65 x 18.57 mm
|
|
Module Size
|
40.34 x 22.30 mm
|
|
Module Type
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Auto Focus VCM Driver IC
|
None
|
|
Operating Temperature
|
-30°C to +85°C
|
|
Mating Connector
|
FH12-24S-0.5SH
|
Key Features
Support frame sync
DVP /MIPI (2lane ) interface support
Horizontal/Vertical mirror
Image processing module
OTP support(1K for customers):Module information/WB
Package: CSP
