No Distortion UVC OV2710 USB Dual Lens Camera Module

Hello, welcome to consult our products!

No Distortion UVC OV2710 USB Dual Lens Camera Module

Hampo 003-0409 is a simultaneous dual lens USB camera module, with dual 1/2.7″ CMOS Omnivision OV2710 image sensor, the max resolution is 1920*1080P @30fps for each camera,delivery about 0.5Lux of low illumination. The PCB board size is about 80*16*20(mm).



Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

Datasheet

Product Tags

Hampo 003-0409 is a simultaneous dual lens USB camera module, with dual 1/2.7" CMOS Omnivision OV2710 image sensor, the max resolution is 1920*1080P @30fps for each camera,delivery about 0.5Lux of low illumination. The PCB board size is about 80*16*20(mm).
The outstanding feature for this module is the two camera’s video frame is synchronous, just like human's eyes. Dual-Lens Camera Module, equipped with high-performance AI intelligent vision processor, has powerful AI computing performance, supports various AI frameworks and human detection with high recognition accuracy,widely used for binocular stereo vision secondary development which directly simulates the manner of human eyes observing one scene from two different viewpoints.
Like Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, People Counting & Tracking etc application. Customer could develop their own software and device,integrated with this dual lens camera to capture or view dual image picture or video.The dual lens camera module compatible with Android, Linux and Windows system with UVC and recognized as 2 pcs cameras.

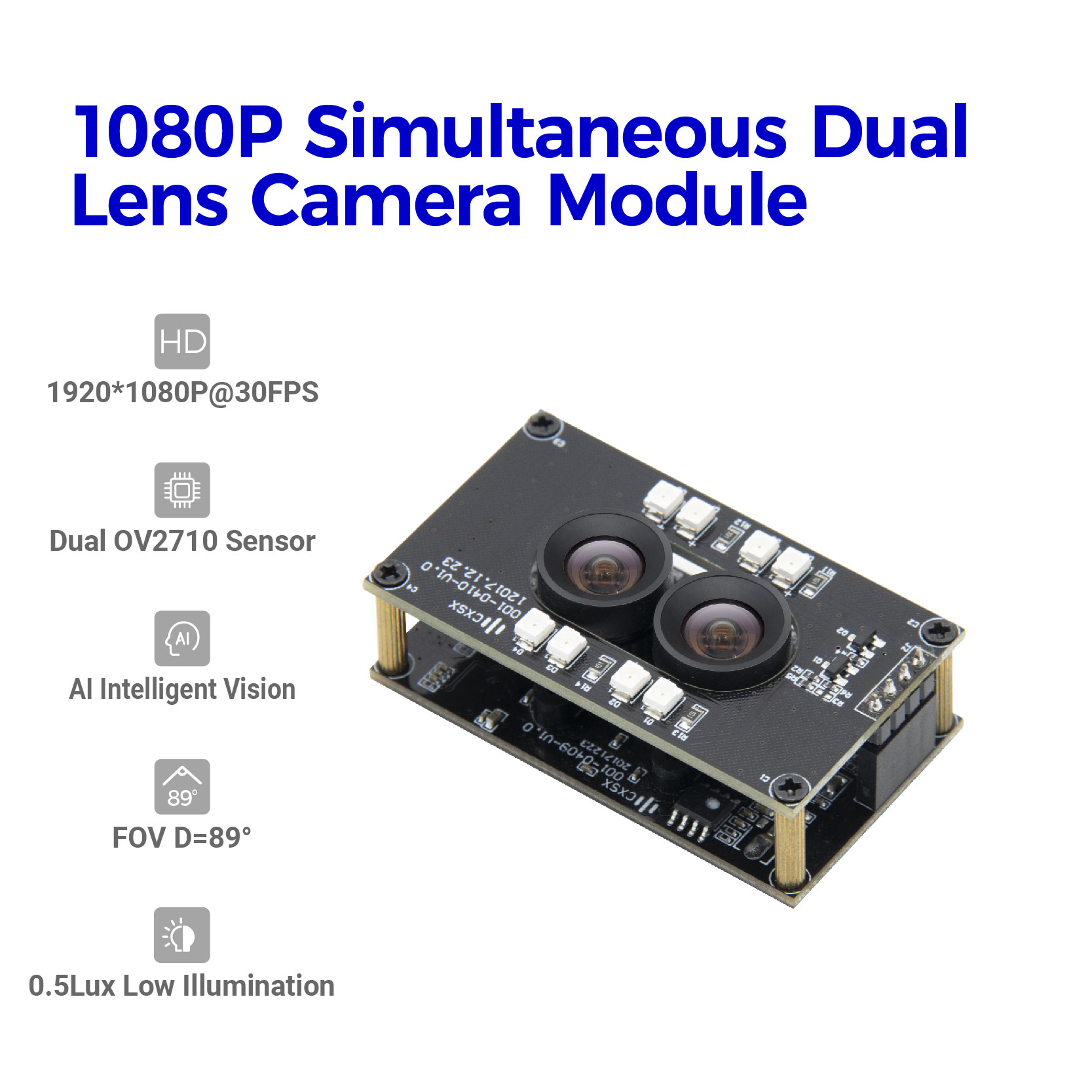

0409_1



Key Features:

Synchronized dual lens camera module: This 2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do. Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.
Full HD 1080P Resolution: The camera module adopt two 1/2.7” OV2710 sensor. The max frame rate 1920*1080@ 30fps for each.
Excellent Low Light Performance: Adopting Omnivision OV2710 CMOS sensor, feature at 0.5Lux illumination and high quality image under the low light condition.
Wide View of Angle: Assembled with a 95°(D) wide angle M12 lens.
Best Universal Compatibility: Dual lens camera module support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux.
Wide Application: This mini 80*16*20(mm) camera board can be installed in most hidden and narrow position for access control system, advertisement machine, ATM machin, self-service terminal etc. application.

 0409_3

SPECS:

003-0409 Camera Module
Camera
RGB Camera
IR Camera
Max Resolution
1920*1080P
1920*1080P
Sensor
1/2.7" OV2710
1/2.7" OV2710
Frame Rate
MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS;
1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS
MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS;
1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS
Pixel Size
3.0μm*3.0μm
3.0μm*3.0μm
Output Format
YUY2/MJPG
YUY2/MJPG
Illumination
0.5Lux
0.5Lux
Lens
Focus
Fixed focus
Fixed focus
FOV
D=95°
D=95°
Lens Mount
M12 * P0.5mm
M12 * P0.5mm
Focusing Range
3.3ft (1M) to infinity
3.3ft (1M) to infinity
Power
Working Current
 200mA
 200mA
Voltage
DC 5V
DC 5V
Physical
Interface
USB2.0
USB2.0
Storage Temperature
-20ºC to +70ºC
-20ºC to +70ºC
PCB Size
80*16*20(mm)
Cable Length
3.3ft (1M)
3.3ft (1M)
TTL
15.59MM
15.59MM
Functionality and Compatibility
Adjustable parameter
Exposure/ White balance
Exposure/ White balance
System Compatibility
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

0409_4


  • Previous:
  • Next:

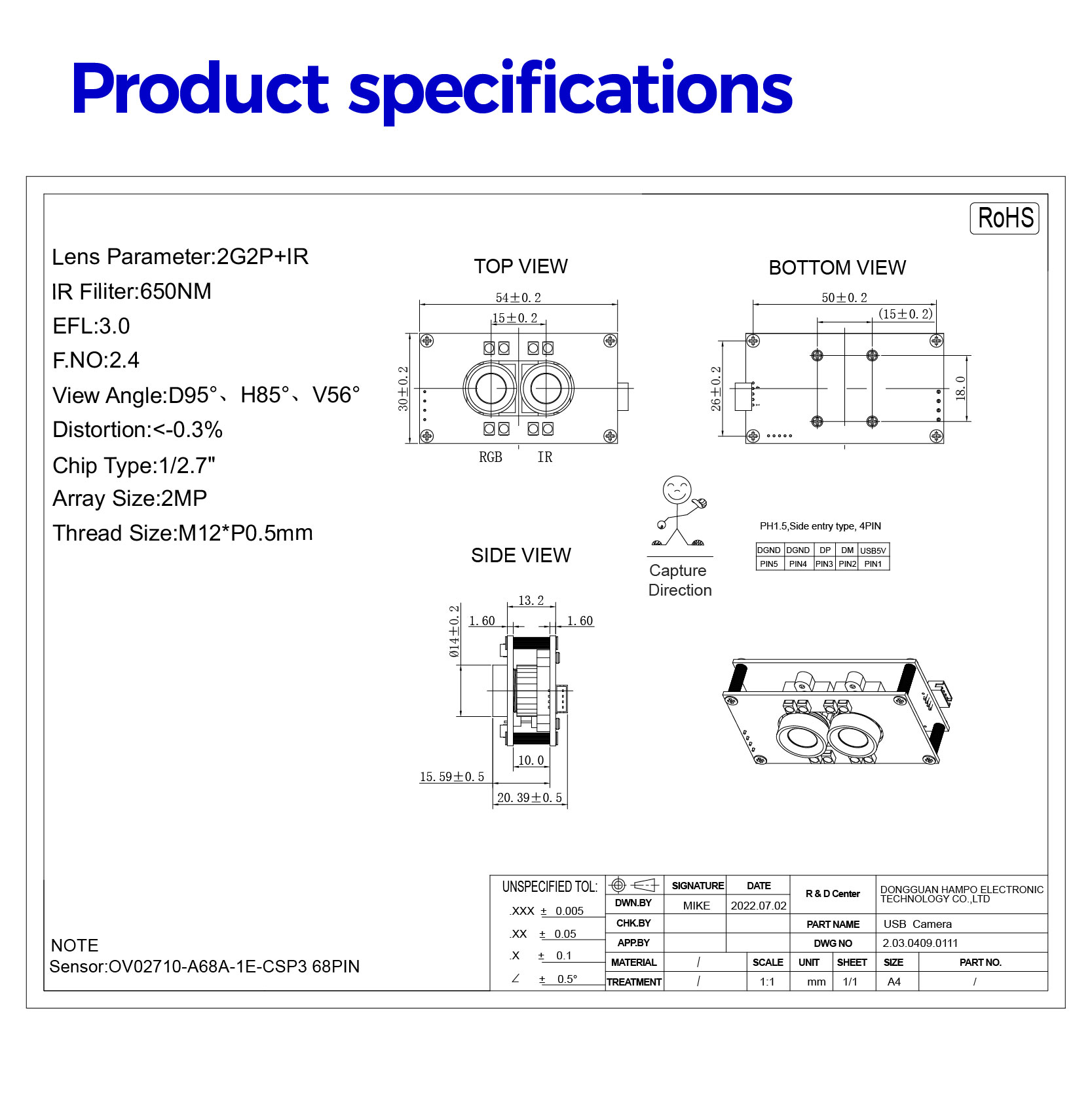

  • 0409_2
