Dual Operating System H.264 Imx307 Camera Module

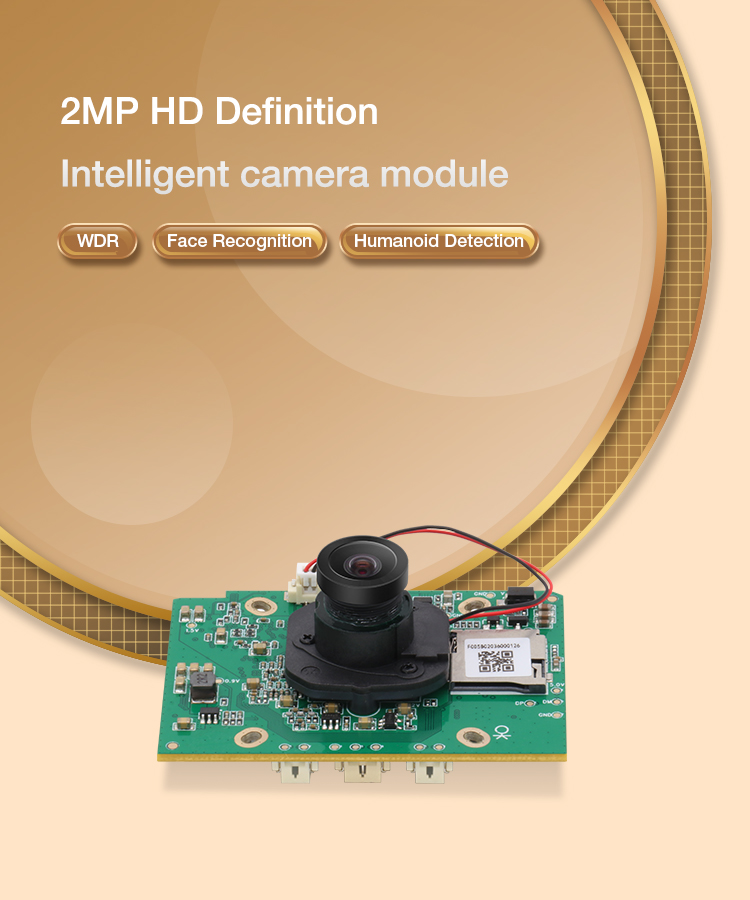

GN-CYI220 is a 2 megapixel resolution intelligent camera module which to meet the needs of AI users for image recognition.
The camera module is in 1080P 30fps,it’s strong ISP neural network unit addition enables it to having AI algorithm ability, which could meet the most image scene requirements in different application, it has a balance performance and competitive price,2MP definition of camera module.
Feature:

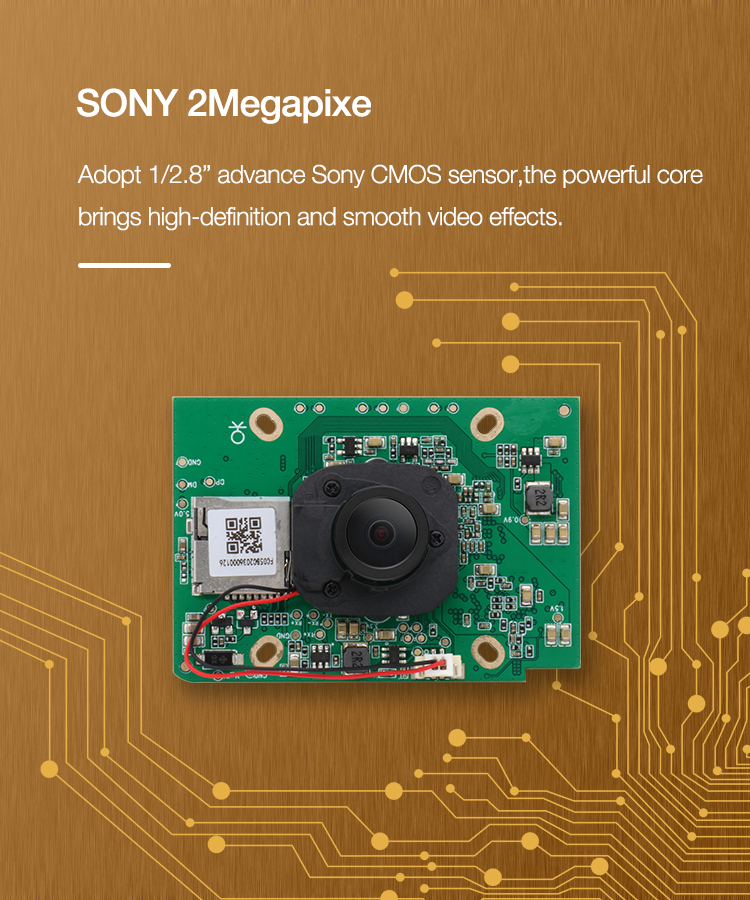

1.Adopt 1/2.8″ advance Sony CMOS sensor;2.Max frame rate:JPEG 1080p@30fps4608*3456@10fps;3.Support face recognition and human detection;4.Support WDR,could adjust strong sunlight andcompensation under backlight;5.0.5T Neural network acceleration engine;6.Support audio codec;7.Support dual operating system, customized SDK

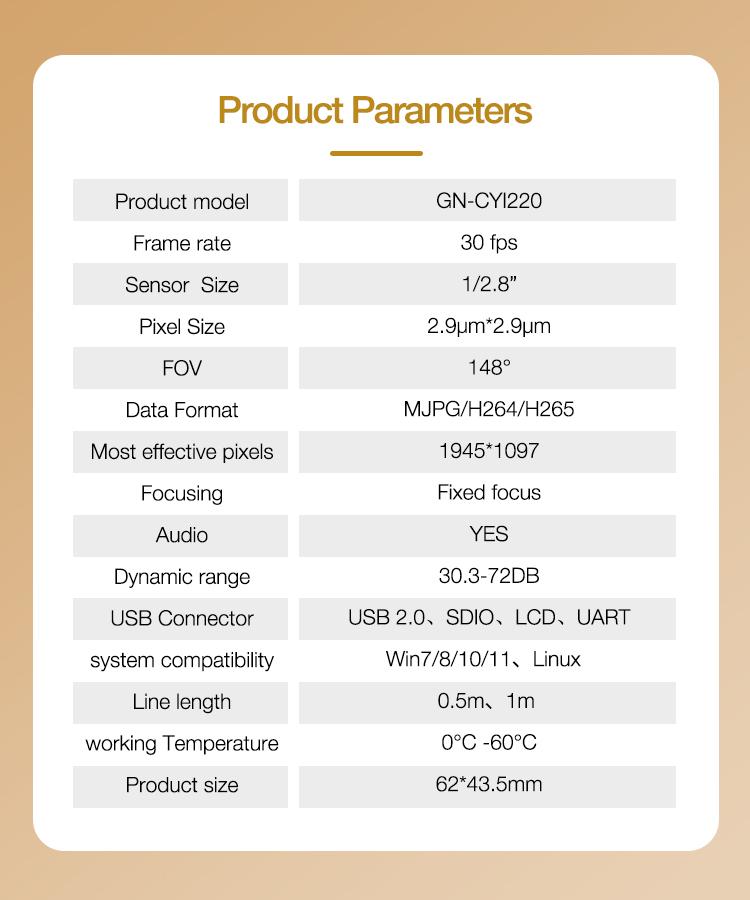

SPECS
| Model No. | GN-CYI220 | ||
| Image Sensor | IMX307 | ||
| Max.Resolution | 1945(H) x 1097(V) | ||
| Sensor Size | 1/2.8”(6.46mm) | ||
| Pixel Size | 2.9*2.9μm | ||
| Output | Format | Resolution | Frame Rate |
| MJPG/H264/H265 | 2.12MP and below | 30fps max | |
| Focusing | FF | ||
| Dynamic Range | 30.3dB-72dB | ||
| Connector | USB 2.0,SDIO,LCD,UART | ||
| Adjustable | Brightness,contrast,saturation, color,gamma,gain,white balance,exposure,backlight contrast | ||
| Auto Control | White balance,Exposure, gain | ||
| Algorithm Pre-set | Face and human detection | ||
| Lens | FOV:D=148° mount:M12*P0.5 | ||
| Power&Dimension | DC12V,40*40mm | ||
| Main Chips | DSP/SENSOR/FLASH/DDR | ||
| Storage | SD card | ||
| Operation Temperature | 0C° to 60°C | ||
| Support Systems | WINXP/WIN7/WIN8/WIN10/Android | ||
Applications
Industrial Machine
Security Mornitoring
