Factory Price 8MP 4K Camera Module Sony Cmos Sensor IMX274 140Degree Wide Angle MIPI Camera Module

Product Description

HAMPO-N6MF-IMX274 V1.0 is a 8megapixel MIPI interface camera module,adopting IMX274LQC advanced image sensor which realizes 4K (3840 × 2160) all-pixel scan at 30 frames/s in ADC 12-bit mode, and at the high frame rate output of 60 frames/s in ADC 10-bit mode, making it the ideal CMOS image sensor for expanding 4K market applications. The Full HD (1920 × 1080) output at 60 frames/s in ADC 12-bit mode (mode 1) and 120 frames/s in ADC 10-bit mode (mode 2), enabling high-speed video imaging. In addition, various other readout methods are also supported, and diverse drive modes can be selected (Table-3). Use of a lower frame rate makes it possible to reduce power consumption.

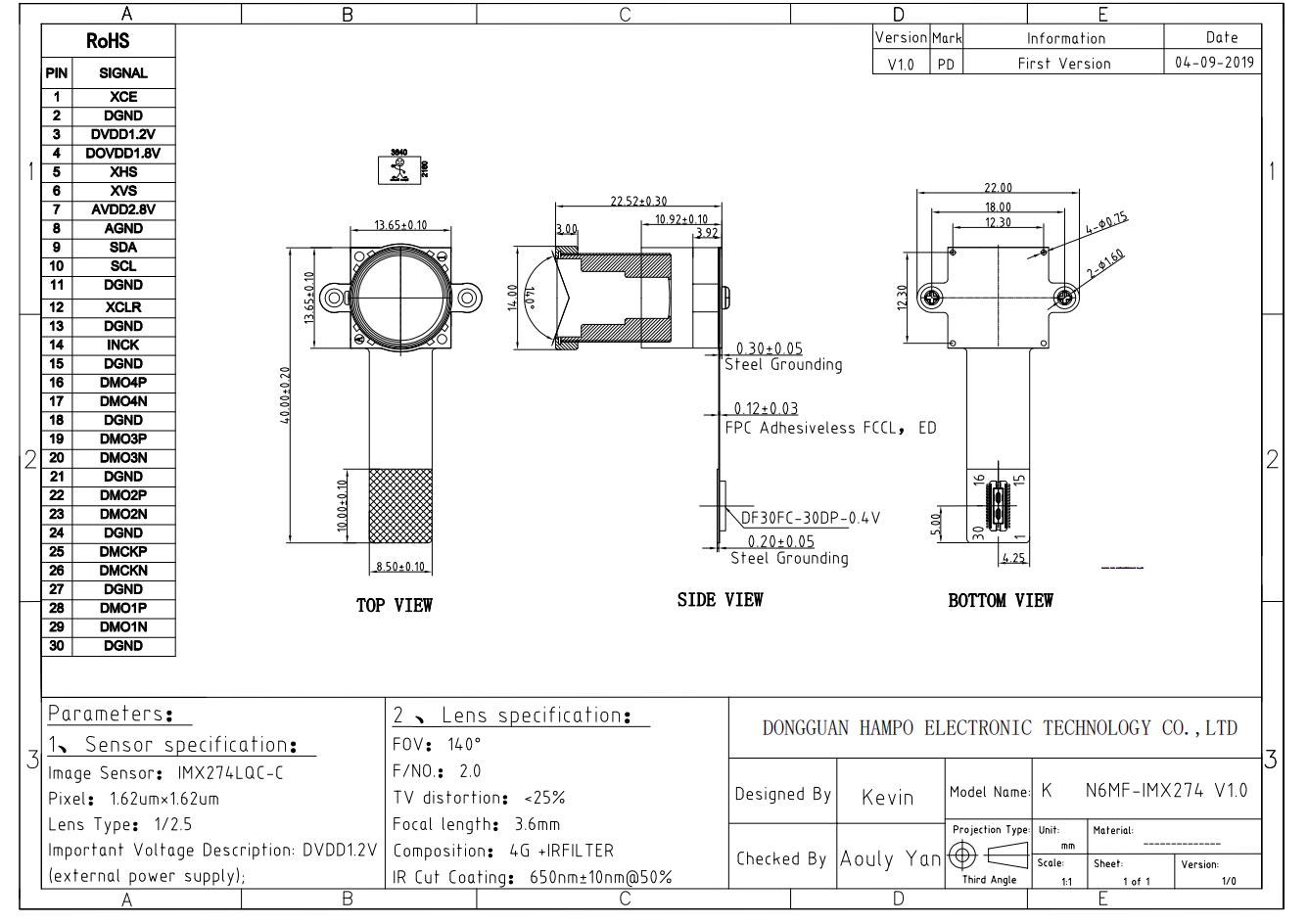

Specification

Camera Module No.	HAMPO-N6MF-IMX274 V1.0
Resolution	8MP
Image Sensor	IMX274
Sensor Size	1/2.5"
Pixel Size	1.62 um x 1.62 um
EFL	3.6 mm
F/No.	2.0
Pixel	3840 x 2160
View Angle	130.0°(DFOV) 100.0°(HFOV) 59.0°(VFOV)
Lens Dimensions	13.65 x 13.65 x 22.52 mm
Module Size	40.00 x 22.00 mm
Focusing	Fixed Focus
Interface	MIPI
Lens Type	650nm IR Filter
Operating Temperature	-30°C to +75°C

Key Features

■ High-speed video imaging function
■ Versatile interface
■ DOL-HDR function
■ Compact device size

Applications
