4K 8MP Sony IMX334 Low Illumination MIPI Fixed Focus Camera Module
Customized 4K 8MP Sony IMX334 Low Illumination MIPI Interface M12 Fixed Focus Camera Module with 130degree Wide Angle Lens
|

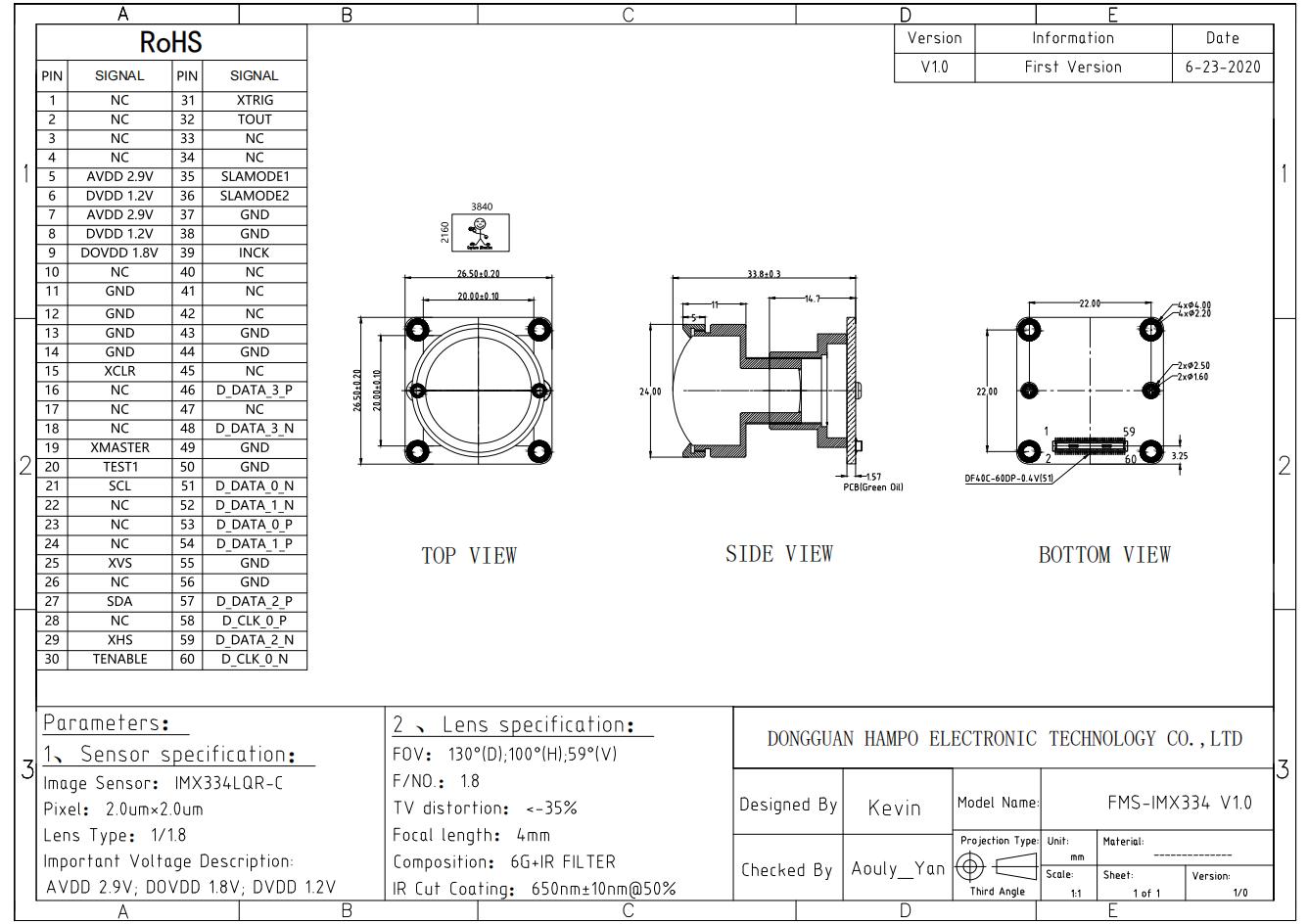

Camera Module No.
|
HAMPO-FMS-IMX334 V1.0
|
|
Resolution
|
8MP
|
|
Image Sensor
|
IMX334
|
|
Sensor Size
|
1/1.8"
|
|
Pixel Size
|
2.0 um x 2.0 um
|
|
EFL
|
4 mm
|
|
F/No.
|
1.8
|
|
Pixel
|
3840 x 2160
|
|
View Angle
|
130.0°(DFOV) 100.0°(HFOV) 59.0°(VFOV)
|
|
Lens Dimensions
|
20.00 x 20.00 x 33.80mm
|
|
Module Size
|
26.50 x 26.50 mm
|
|
Focusing
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Lens Type
|
650nm IR Filter
|
|
Operating Temperature
|
-30°C to +85°C
|
Key Features
◆Built-in timing adjustment circuit, H/V driver and serial communication circuit
◆Input frequency: 6 to 27 MHz / 37.125 MHz / 74.25 MHz
◆Number of recommended recording pixels: 3840 (H) × 2160 (V) approx. 8.29 M pixels
◆Readout mode
All-pixel scan mode
Window cropping mode
Vertical / Horizontal direction-normal / inverted readout mode
◆Readout rate
Maximum frame rate in All-pixel scan mode 3840(H)×2160(V) A/D 12-bit: 60 frame/s
◆High dynamic range (HDR) function
Multiple exposure HDR
Digital overlap HDR
◆Variable-speed shutter function (resolution 1H units)
◆10-bit / 12-bit A/D converter
◆CDS / PGA function
