5MP OV5670 Fixed Focus MIPI Camera Module
FH12-24S-0.5SH Mating Connector OV5670 5MP MIPI Camera Module

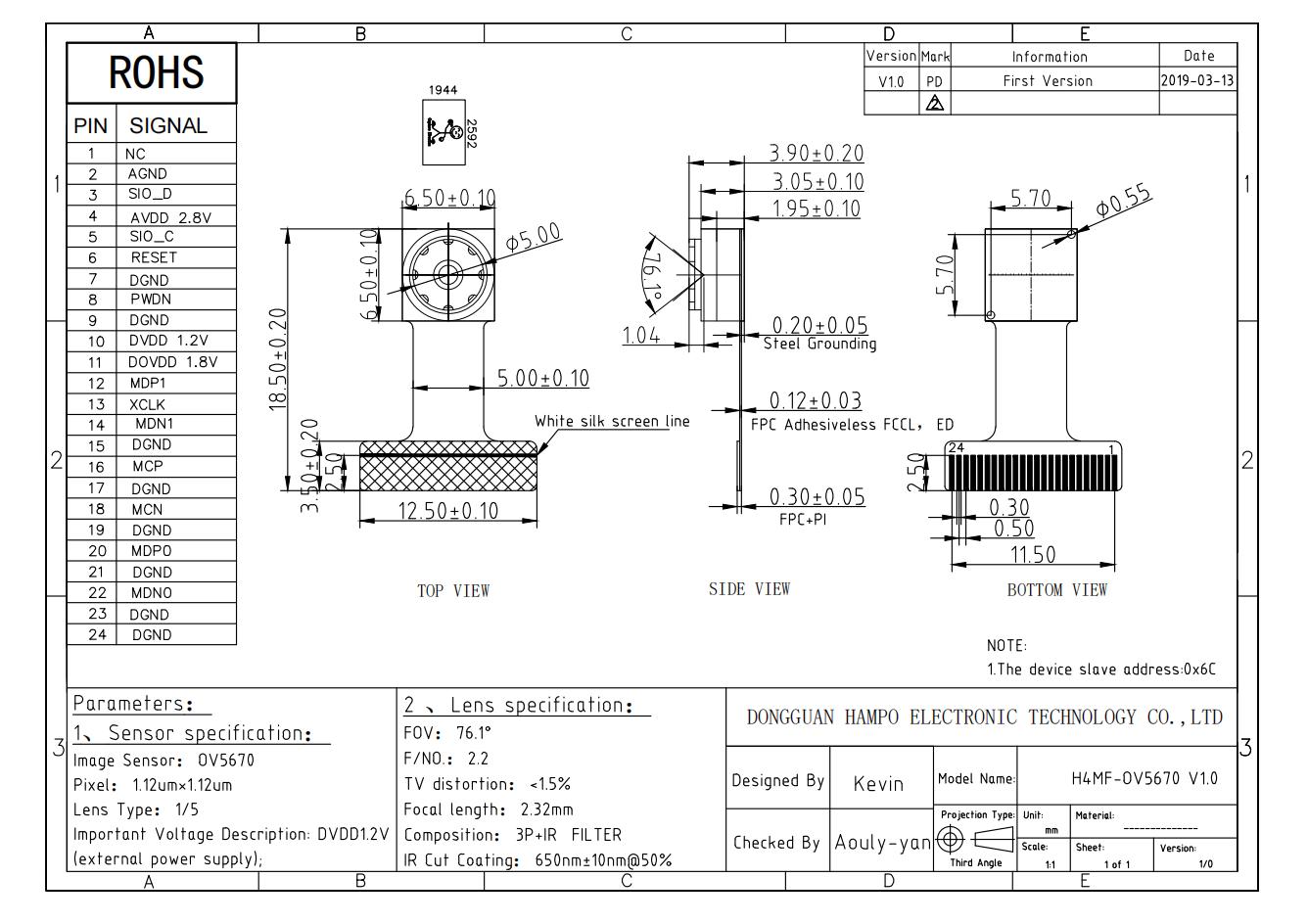

HAMPO-H4MF-OV5670 V1.0 is a 5MP OmniVision OV5670 MIPI Interface Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.Wide APPLICATIONS :Smartphones and Feature Phones ,PC Multimedia ,Tablets ,Wearables.
The OV5670 PureCel image sensor can capture full resolution 5-megapixel (2592 x 1944) images at 30 frames per second (FPS), quad HD video at 30 FPS, cropped 1080p HD at 60 FPS, or 720p HD at 60 FPS. When recording 720p HD video with binning, the sensor achieves sensitivity and signal-to-noise ratio that is comparable to popular 1.75-micron pixel-based sensors. Additionally, the sensor’s 1.12-micron pixel achieves similar full-well capacity as OMNIVISION’s previous generation 1.4-micron pixel.
|
Camera Module No.
|
HAMPO-H4MF-OV5670 V1.0
|
|
Resolution
|
5MP
|
|
Image Sensor
|
OV5670
|
|
Sensor Type
|
1/5"
|
|
EFL
|
2.32 mm
|
|
F.NO
|
2.20
|
|
Pixel
|
2592 x 1944
|
|
View Angle
|
76.1°(DFOV) 63.9°(HFOV) 49.8°(VFOV)
|
|
Lens Dimensions
|
6.50 x 6.50 x 3.90 mm
|
|
Module Size
|
18.50 x 12.50 mm
|
|
Module Type
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Auto Focus VCM Driver IC
|
None
|
|
Operating Temperature
|
-30°C to +85°C
|
|
Mating Connector
|
FH12-24S-0.5SH
|
Key Features
