1080P AR0230 Dual Lens Camera Module
Customized Dual Lens 1080P 30fps Driver Free WDR USB Video Class Camera Module for Face Recognition ID Detection Access System
Hampo 003-0712 is a a synchronized dual lens USB camera module, with 1/2.7" CMOS AR0230 & RXS2719 image sensor, the max resolution is 1920*1080P @30fps for each camera,delivery 96dB of wide dynamic range. The PCB board size is about 80*16*11.6(mm).
The outstanding feature for this module is the two camera’s video frame is synchronous, just like human's eyes. WDR Dual-Lens Camera Module, equipped with high-performance AI intelligent vision processor, has powerful AI computing performance, supports various AI frameworks and human detection with high recognition accuracy，widely used for binocular stereo vision secondary development which directly simulates the manner of human eyes observing one scene from two different viewpoints. Like Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, People Counting & Tracking etc application. Customer could develop their own software and device,integrated with this dual lens camera to capture or view dual image picture or video.The dual lens camera module compatible with Android, Linux and Windows system with UVC and recognized as 2 pcs cameras.
Features:
Synchronized dual lens camera module: This 2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do. Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.
Full HD 1080P Resolution: The camera module adopt 1/2.7” AR0230 WDR color sensor and 1/2.7"RXS2719 IR sensor. The max frame rate 1920*1080@ 30fps for each, full HD image.
Excellent WDR Technology: Adopting Aptina AR0230 CMOS sensor, feature at wide dynamic range and high quality image under the backlight.The max dynamic range up to 96dB.
Best Universal Compatibility: Dual lens camera module support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux.
Wide Application: This mini 80*16*11.6(mm) camera board can be installed in most hidden and narrow position for access control system, advertisement machine, ATM machin, self-service terminal etc. application.

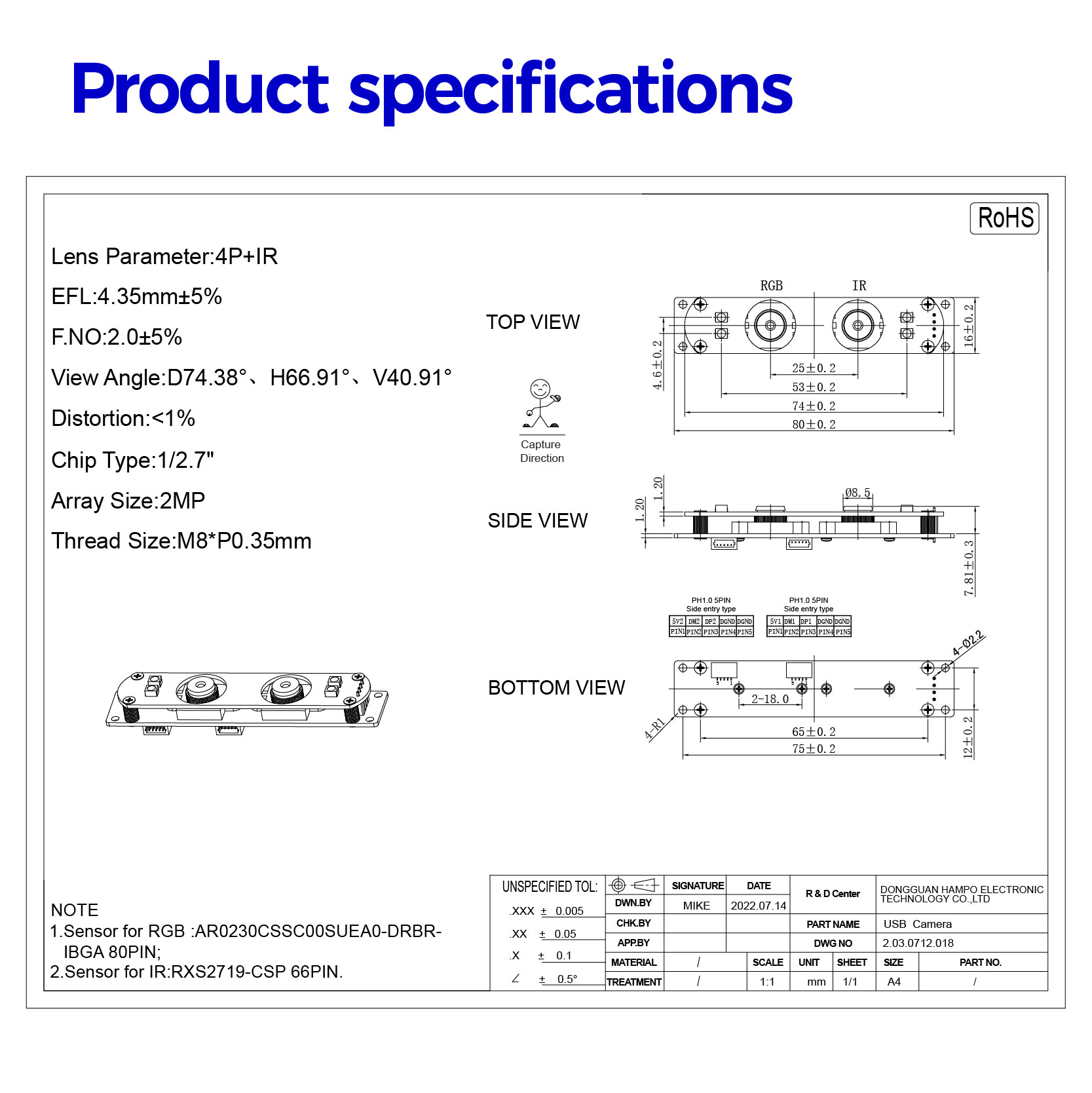

SPECS:
|
003-0712 Camera Module
|
||
|
Camera
|
RGB Camera
|
IR Camera
|
|
Max Resolution
|
1920*1080P
|
1920*1080P
|
|
Sensor
|
1/2.7" AR0230
|
1/2.7" RXS2719
|
|
Frame Rate
|
MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS;
1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS |
MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS;
1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS |
|
Pixel Size
|
3.0μm*3.0μm
|
3.0μm*3.0μm
|
|
Output Format
|
YUY2/MJPG
|
YUY2/MJPG
|
|
Dynamic Range
|
96dB
|
76dB
|
|
Lens
|
||
|
Focus
|
Fixed focus
|
Fixed focus
|
|
FOV
|
D=74.38°
|
D=74.38°
|
|
Lens Mount
|
M8 * P0.5mm
|
M8 * P0.5mm
|
|
Focusing Range
|
3.3ft (1M) to infinity
|
3.3ft (1M) to infinity
|
|
Power
|
||
|
Working Current
|
200mA
|
200mA
|
|
Voltage
|
DC 5V
|
DC 5V
|
|
Physical
|
||
|
Interface
|
USB2.0
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
-20ºC to +70ºC
|
|
PCB Size
|
80*16*11.6（mm)
|
|
|
Cable Length
|
3.3ft (1M)
|
3.3ft (1M)
|
|
TTL
|
7.81MM
|
7.81MM
|
|
Functionality and Compatibility
|
||
|
Adjustable parameter
|
Exposure/ White balance
|
Exposure/ White balance
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
ApplicationsAccess Control SystemID Detection
Face Recognition
LED Display etc.
