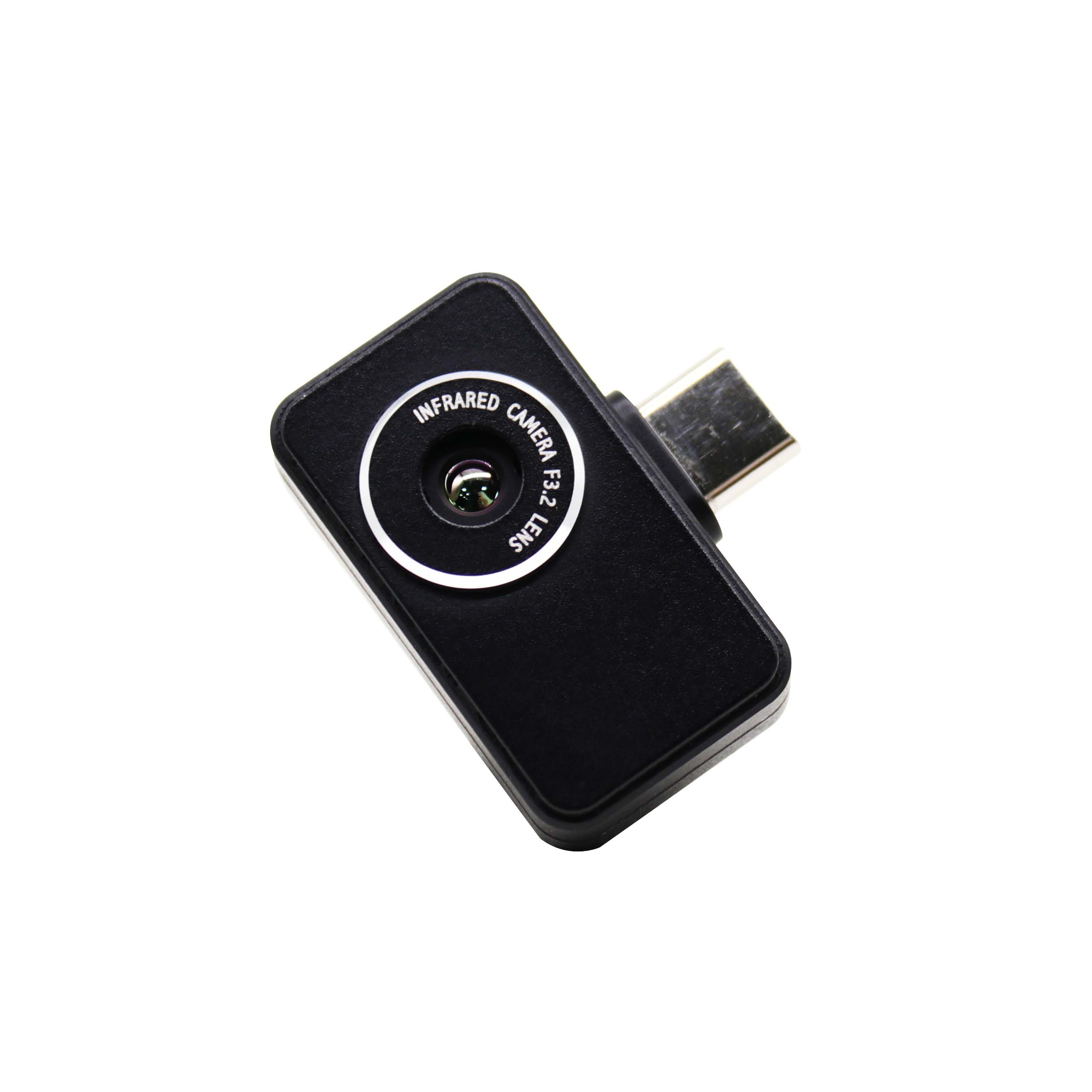

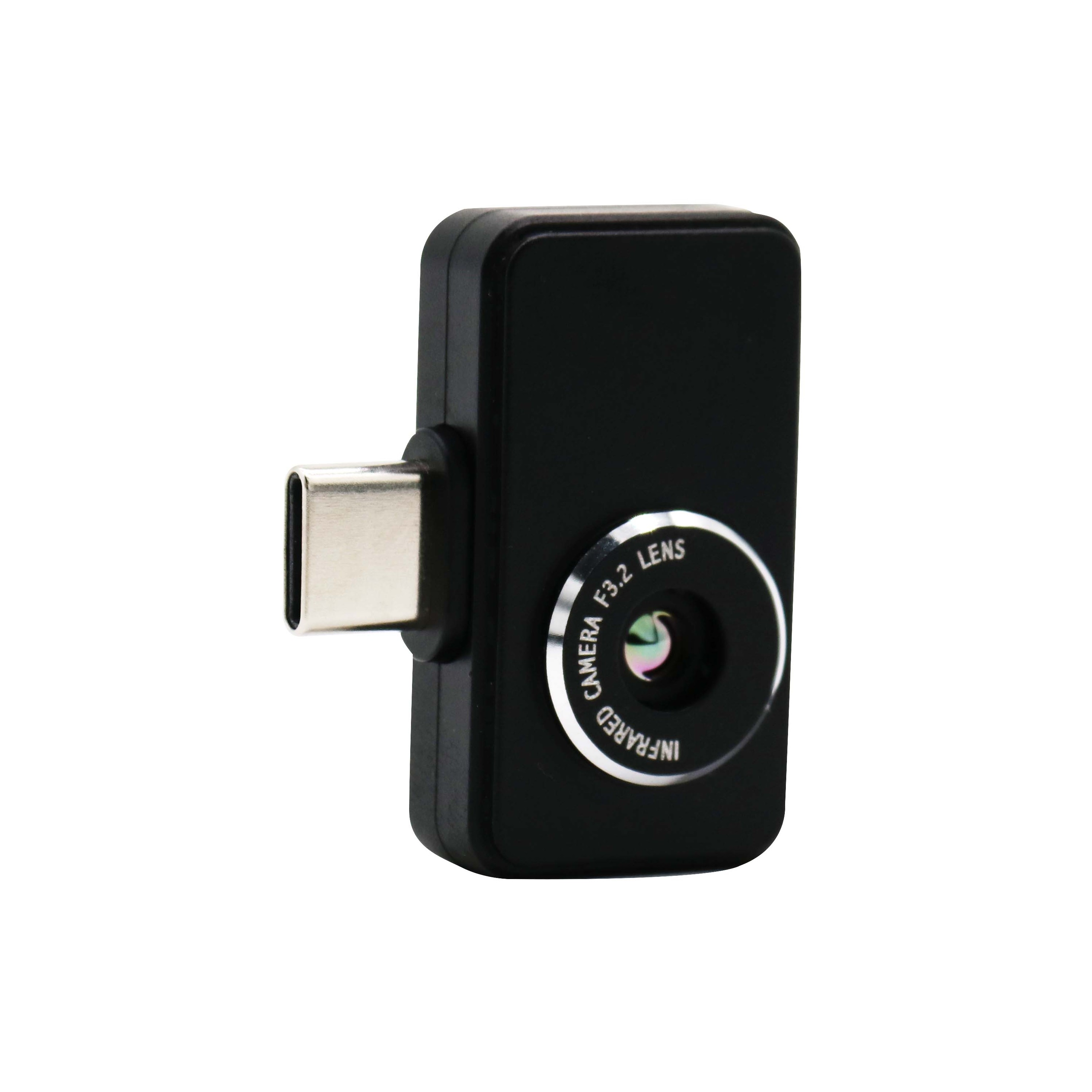

Small 256*192 Smartphone Thermal Image Camera
SMC256 adopts new self-developed 12μm VOx WLP detector and is equipped with an ASIC processing chip independently developed by InfiRay®, featuring extremely small size, lighter weight, and lower power consumption. Its 640-resolution thermal imaging camera has a size of 27x18x9.8(mm), which is very suitable for applications with extremely high requirements such as various miniaturized handheld devices, wearable devices, and light UAVs.
Cameras can be hidden inside everyday objects such as power sockets, toilets, bath bottles, and smoke alarms for secret shooting!Incidents of pinhole cameras have frequently occurred in recent years, and such incidents are severe threats to the privacy of the public. To deal with such threats, the Ministry of Industry and Information Technology has announced that activities of regulating network security of cameras will be rolled out. The thermal camera for smartphones, a weapon for anti-stealthier, can play an important role in such activities.
|Processor||Self-developed ASIC chip|
|Focusing Mode||Athermalized fix-focus lens|
|Measuring Error||±2°ºC(±2% of readingthe greater shall prevail)|
|Temperature Correction||Emissivity,distance,environmental temperature|
|Interface||USB type C|
|Measurement Mode||Point/line/area temperature measurement|
|Information Sharing||Instant picture sharing|
|Data Analysis||Secondary temperature analysis and processing of images|
|Imaging Tool||Android 6.0 and above|
|Software Update||Online update|
