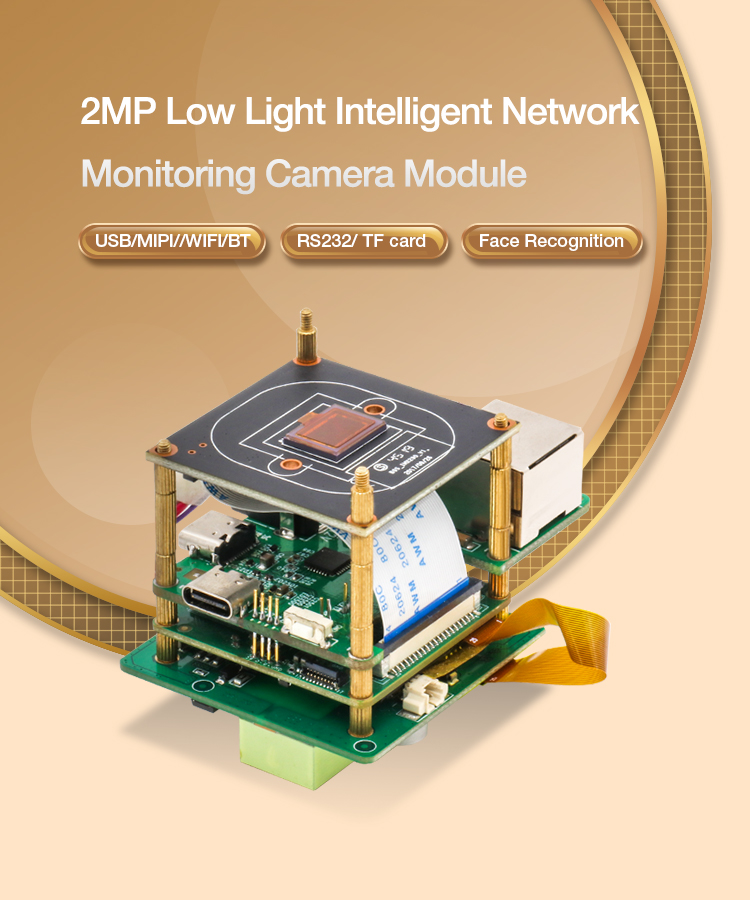

RV1126 Low Light 1080P Network Camera Module

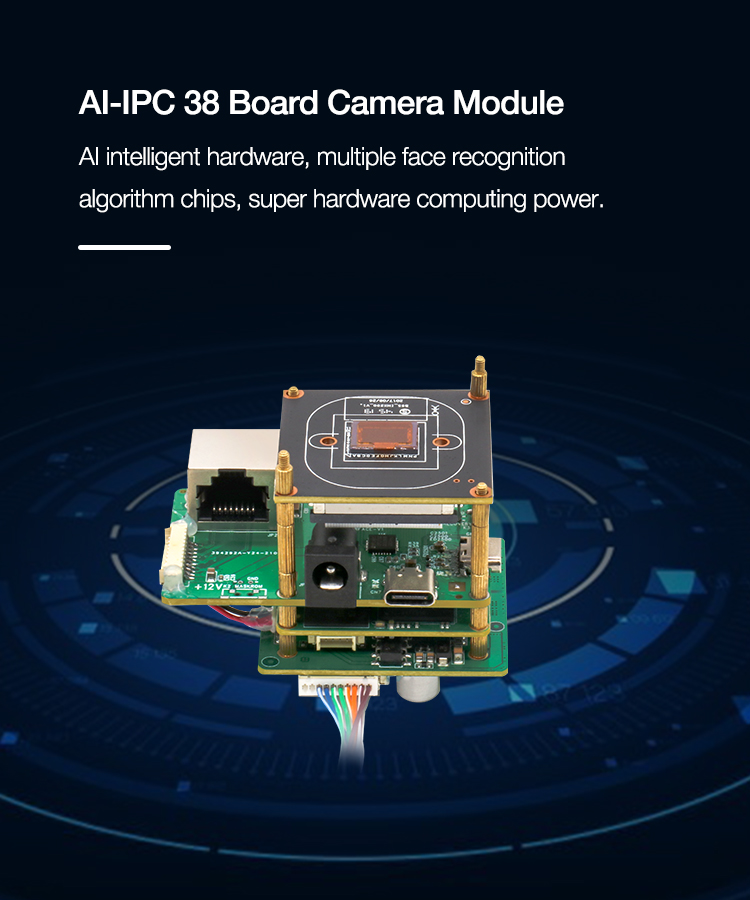

RV1126-IPC-38 is an IPC38 board based on Rockchip’s mainstream chip RV1126 RV1109.At the same time, it is also an AI intelligent hardware solution that can integrate multiple face recognition algorithm chips on the market.The hardware computing power can meet various applications in the industry.
Feature:

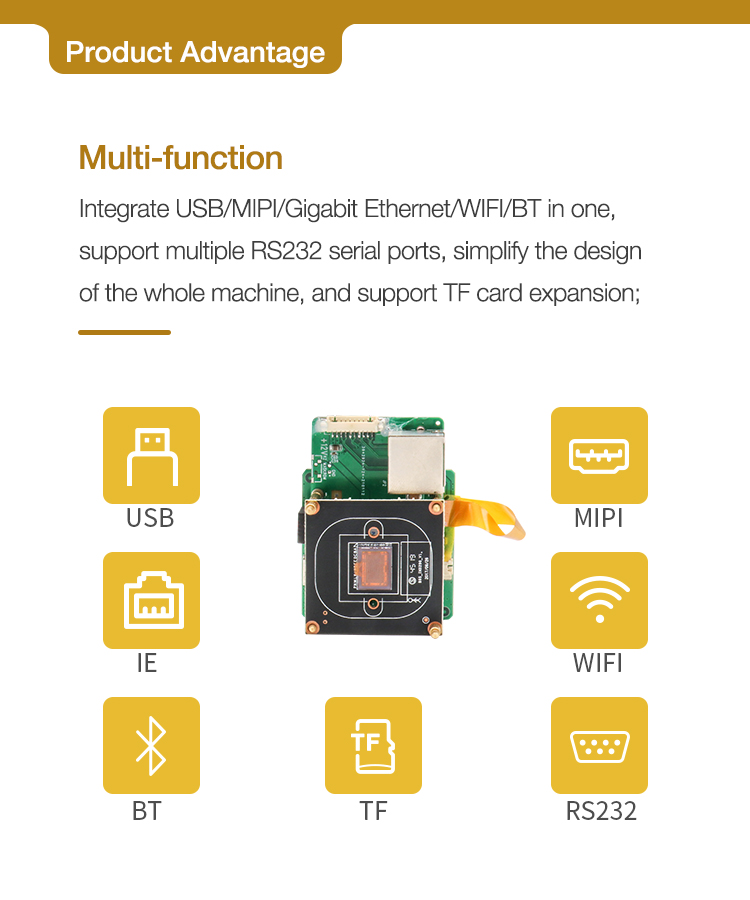

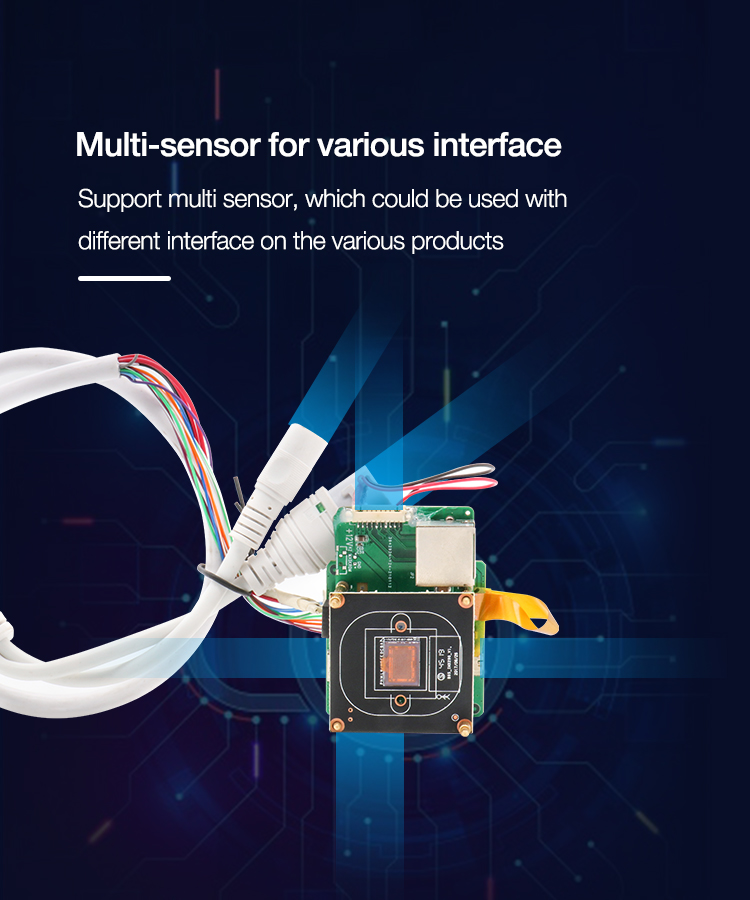

1.Adopting 1/2.8″ 2MP starlight low illumination CMOS sensor;2.Multi-function:Integrate USB/MIPI/Gigabit Ethernet/WIFI/BT in one, support multiple RS232 serial ports, simplify the design of the whole machine, and support TF card expansion;3.1080P@30fps;4.Network:Support WIFI,wired network5.Support various sensor

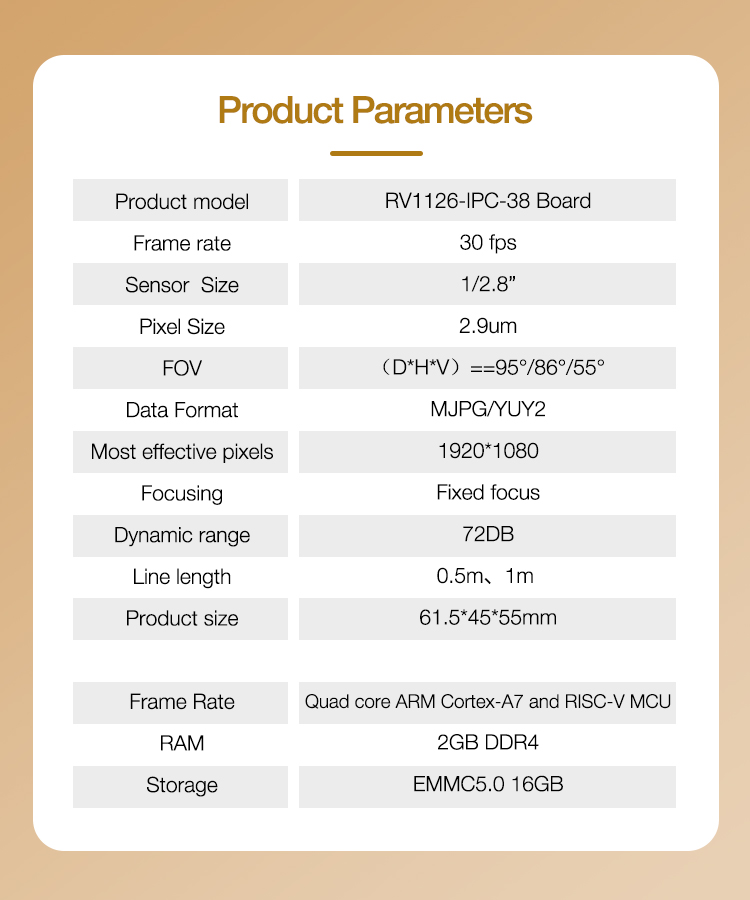

SPECS
| CPU | |
| Processing Unit | RV1126 |
| Frame Rate | Quad core ARM Cortex-A7 and RISC-V MCU |
| Technology | 14nm |
| RAM | 2GB DDR4 |
| Storage | EMMC5.0 16GB |
| HashRate | 2.0Tops NPU |
| Camera | |
| Image Sensor | IMX307 |
| Sensor Size | 1/2.8″ |
| Resolution | 1920*1080 |
| Pixel Size | 2.9um |
| Dynamic Range | 72DB |
| Lens | Focal length:3.0mm TTL:14.89 |
| FOV(D*H*V)=95°/86°/55° | |
| TV DISTORTION≤1% | |
| Mount:M12*P0.5 | |
| Focusing | FF |
| Frame Rate | 30FPS |
| Auto Control | Saturation,contrast,acutance,white balance,exposure |
| Voltage | DC 12V |
| Max Current | MAX 500mA |
| Storage Temperature | -20ºC-70ºC |
Applications
Industrial Machine
Security Mornitoring
