MIPI Interface MT9M114 1.3MP Pixel Micro hd mini Camera Module
MIPI Interface MT9M114 1.3MP Pixel Micro hd mini Camera Module

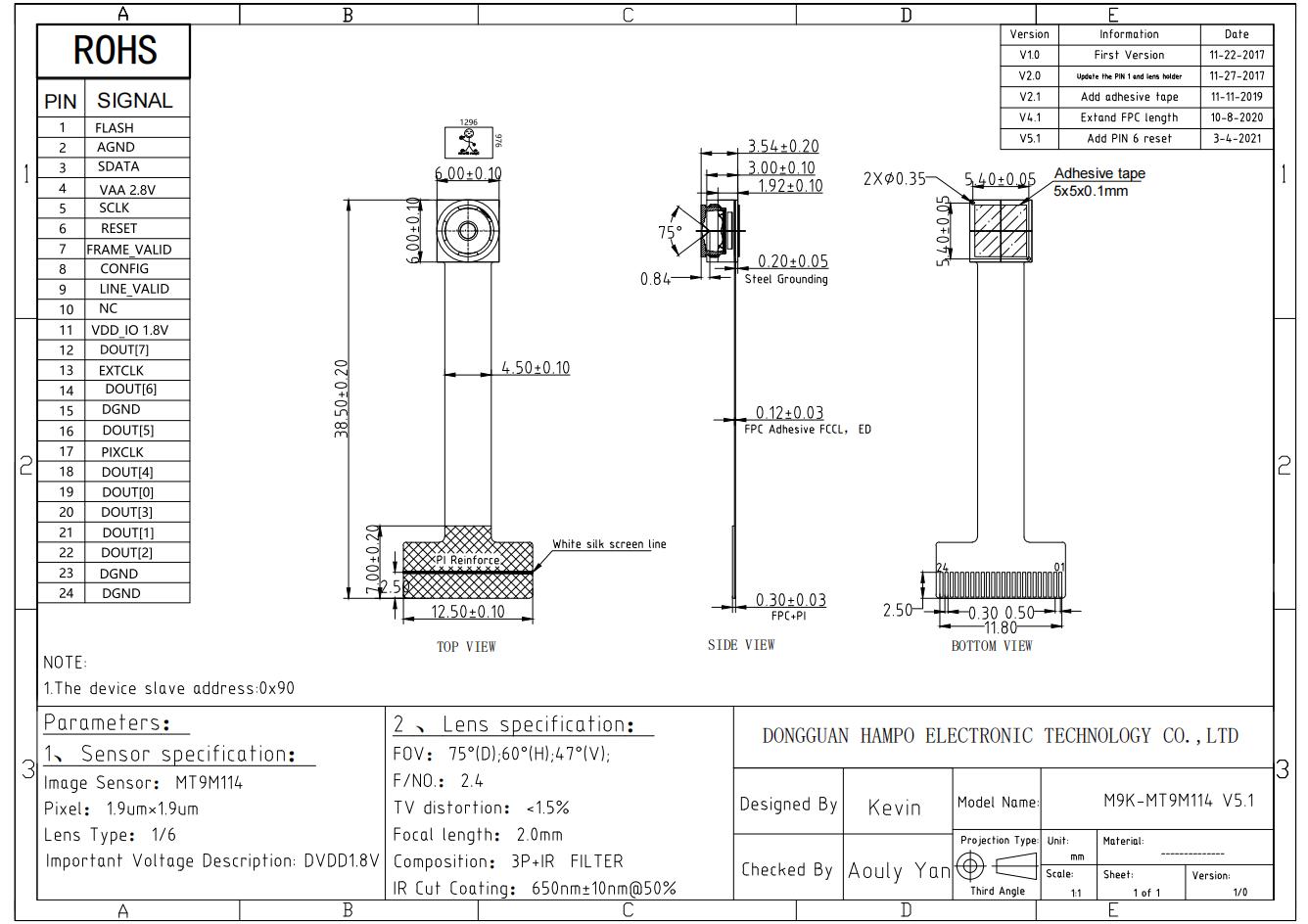

HAMPO-M9K-MT9M114 V5.1 is a 1.3MP OnSemi MT9M114 DVP Parallel Interface Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.
APPLICATIONS :Notebook computers, printers, PDAs, digital cameras and other compact devices for interconnecting the main circuit board with the LCD, HDD or other device
Specification
|
Camera Module No.
|
HAMPO-M9K-MT9M114 V5.1
|
|
Resolution
|
1.3MP
|
|
Image Sensor
|
|
|
Sensor Type
|
1/6"
|
|
Pixel Size
|
1.9 um x 1.9 um
|
|
EFL
|
2.00 mm
|
|
F.NO
|
2.40
|
|
Pixel
|
1296 x 976
|
|
View Angle
|
75.0°(DFOV) 60.0°(HFOV) 47.0°(VFOV)
|
|
Lens Dimensions
|
6.00 x 6.00 x 3.54 mm
|
|
Module Size
|
38.50 x 12.50 mm
|
|
Module Type
|
Fixed Focus
|
|
Interface
|
DVP Parallel
|
|
Auto Focus VCM Driver IC
|
None
|
|
Operating Temperature
|
-30°C to +70°C
|
|
Mating Connector
|
FH12-24S-0.5SH
|
Key Features
* Superior Low-light Performance
* Ultra-low Power
* 720p HD Video at 30 fps
