Low Light Camera Module with IMX323 Sensor
Low Light 2MP Sony IMX323 OEM CCTV Security Board Camera High Sensitivity USB Camera Module Support H.264
Description:
Hampo 003-362 is a 2 megapixel low light USB camera module support H.264 video coding. Adopting advanced Sony 1/2.9" IMX323 CMOS image sensor,image quality is very high and stable,low color deviation reproduction. Full HD definition 2001 (H) × 1121 (V) approx 2.24M pixel at 30fps. USB The connection port in the camera module supports USB 2.0 high-speed data transmission, and the USB of the camera board also supports OTG protocol (UVC). 2mp USB camera has a dedicated, high performance image signal processor chip that performs all automatic functions (automatic white balance, automatic exposure control), as well as a complete image signal processing pipeline, providing first-class image and video YUY2 and MJPEG compression Field of view 96° true color image without distortion, suitable for skin detector, document scanner, dashcam,3D printer,Robot, ATM, Kiosk,security applications etc. Compatible with Windows 7, 8/10/11, Linux operating system.
Features:
1. Advanced Sony IMX323 Image Sensor: 2 megapixel USB camera module adopts a high-quality Sony CMOS IMX323 sensor, and delivers sharp images effectively. High definition with low color reproduction deviation. Frame rate 1920x1080 at 30fps.
2. H.264 High Compression with Microphone: USB camera board with high-quality digital microphone. A camera module with advanced H.264 encoding compresses a digital video file so that it only occupies one-twentieth of the space of MPEG to deliver the same quality video. Enjoy stunning HD video with impressive video performance and faster transmission speed
3. Plug & Play: Drive-free USB camera module is very easy to use, just need to plug the camera into the USB port, no need to download or install any drivers. A high-speed USB 2.0 USB camera also supports OTG protocol(UVC).
4. Lower Color Reproduction Deviation: A camera with High definition and lower Color reproduction deviation produces sharp images and accurate information, super small and thin profile for embedded applications.
5. Wide Compatibility: 2MP HD USB camera compatible with Windows Win XP/Vista/Win7/Win8 /Win10, Linux with UVC
SPECS:
|
Camera
|
|
|
Model No.
|
003-0362
|
|
Max Resolution
|
2001 (H) × 1121 (V)
|
|
Sensor
|
1/2.9" IMX323
|
|
Frame Rate
|
30fps
|
|
Pixel Size
|
2.8μm*2.8μm
|
|
Output Format
|
YUY2/MJPG/H.264
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=96° H=80°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Power
|
|
|
Working Current
|
MAX 300mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|

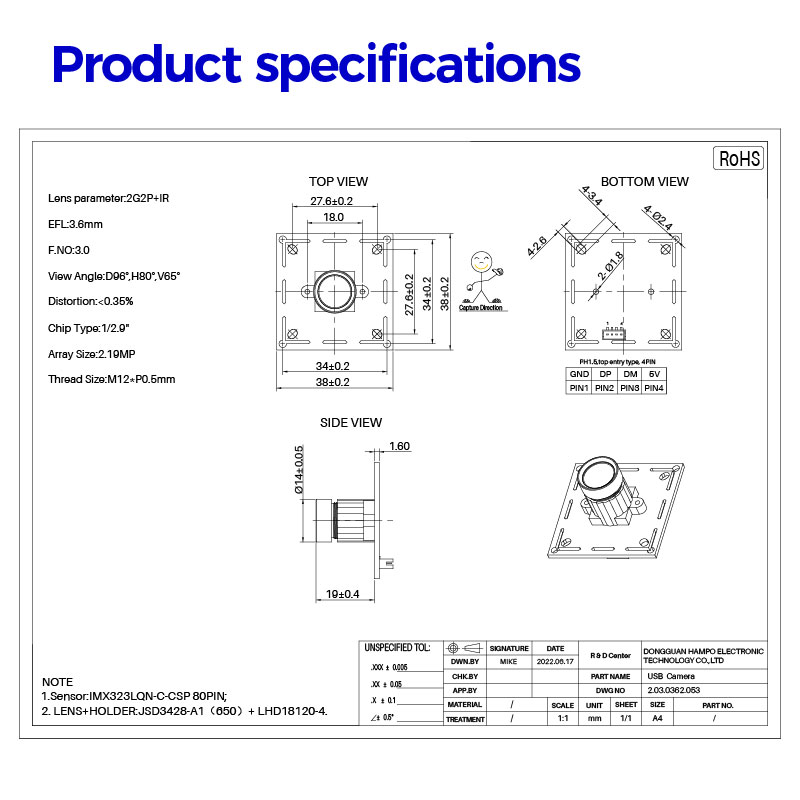

PCB Size
|
38MM*38MM, compatible with 32mm*32mm
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
19MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Exposure/ White balance
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications:
Document Scanner;
Beauty Detector;
Education Products etc.
