IMX586 AF Autofocus 48MP High Definition MIPI Camera Module
Hot Selling Sony IMX586 AF Autofocus MIPI Camera Module 48MP High Definition Mipi Camera Module
Product Description
HAMPO-MAA12-IMX586 is diagonal 8.000 mm (Type 1/2.0) 48 Mega-pixel CMOS active pixel type stacked image sensor mipi camera module with a square pixel array. It adopts Sony's back-illuminated and stacked CMOS image sensor to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. It operates with five power supply voltages: analog 2.9 V and 1.8V, digital 1.1 V, PLL-PHY 1.1V and 1.8 V for input/output interface and achieves low power consumption.
Specification
|
Camera Module No.
|
HAMPO-MAA12-IMX586 V1.0
|
|
Resolution
|
48MP
|
|
Image Sensor
|
IMX586
|
|
Sensor Size
|
1/2.0"
|
|
Pixel Size
|
0.8 um x 0.8 um
|
|
EFL
|
4.74 mm
|
|
F/No.
|
1.79
|
|
Pixel
|
8000 x 6000
|
|
View Angle
|
79.4°(DFOV) 67.2°(HFOV) 53.2°(VFOV)
|
|

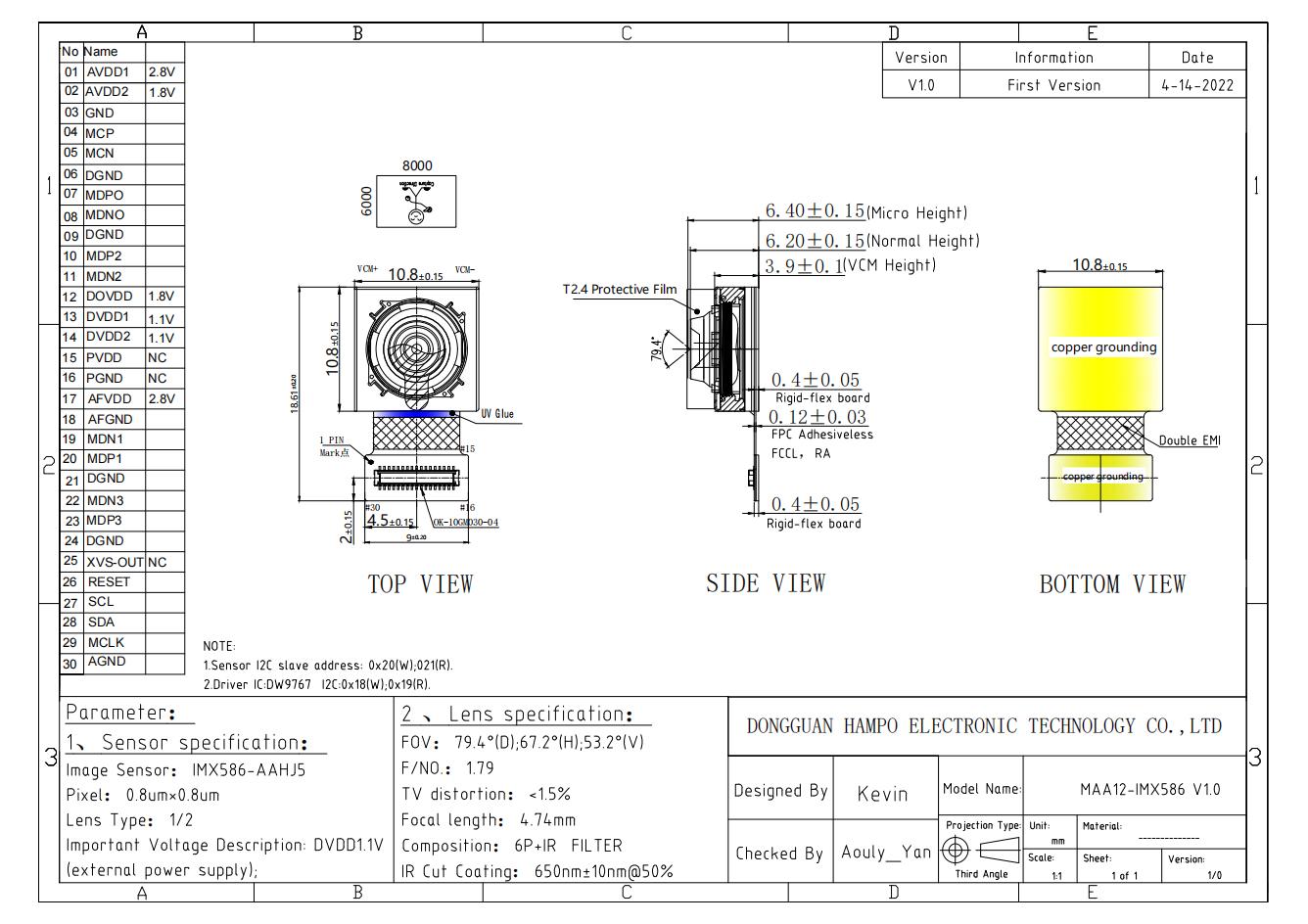

Lens Dimensions
|
10.80 x 10.80 x 6.40 mm
|
|
Module Size
|
18.61 x 9.00 mm
|
|
Focusing
|
Auto Focus
|
|
Interface
|
MIPI
|
|
Auto Focus VCM Driver IC
|
DW9767
|
|
Lens Type
|
650nm IR Cut
|
|
Operating Temperature
|
-20°C to +70°C
|
Key Features
◆Back-illuminated and stacked CMOS image sensor
◆Quad Bayer Coding color filter arrangement
◆Phase Detection Auto Focus (PDAF)
◆High Frame Rate 30fps@Full resolution (QBC Re-mosaic) / 30fps@QBC-HDR / 120fps@2x2 Adjacent Pixel
Binning (16:9) / 240fps@2x2 Adjacent Pixel Binning V2H2(16:9)
◆High signal to noise ratio(SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW10/8, COMP8
◆QBC Re-mosaic function
◆QBC HDR function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output
MIPI D-PHY 2lane/4lane, Max. 2.5Gbps/lane, D-PHY spec. ver. 1.2 compliant
MIPI C-PHY 1/2/3trio, Max 2.5Gsps/Trio, C-PHY spec ver. 1.0 compliant
◆2-wire serial communication (Supports I 2C "Fast mode" and "Fast-mode Plus")
◆28K bit of OTP ROM for users
◆Quad Bayer Coding color filter arrangement
◆Phase Detection Auto Focus (PDAF)
◆High Frame Rate 30fps@Full resolution (QBC Re-mosaic) / 30fps@QBC-HDR / 120fps@2x2 Adjacent Pixel
Binning (16:9) / 240fps@2x2 Adjacent Pixel Binning V2H2(16:9)
◆High signal to noise ratio(SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW10/8, COMP8
◆QBC Re-mosaic function
◆QBC HDR function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output
MIPI D-PHY 2lane/4lane, Max. 2.5Gbps/lane, D-PHY spec. ver. 1.2 compliant
MIPI C-PHY 1/2/3trio, Max 2.5Gsps/Trio, C-PHY spec ver. 1.0 compliant
◆2-wire serial communication (Supports I 2C "Fast mode" and "Fast-mode Plus")
◆28K bit of OTP ROM for users
Package
APPLICATIONS
Mobile cameras
Digital still cameras
Camcorders
Web cameras
Action cameras
Digital still cameras
Camcorders
Web cameras
Action cameras
