IMX179 8MP Camera Module for Document Scanner
Factory High-end Customized 8Mega Pixels 3264*2448 Undistortion Wide Angle lens IMX179 CMOS USB Camera Module
Description:
Hampo 003-0023 is a 8megapixel high resolution USB camera module, which is on the basic of 1/3.2" advanced Sony IMX179 CMOS sensor, the image quality is very high and stable.
The USB connection port in the camera module supports USB 2.0 high-speed data transmission and OTG protocol (UVC). The 8MP USB camera has a dedicated, high performance image signal processor chip that performs all automatic functions (automatic white balance, automatic exposure control), as well as a complete image signal processing pipeline, providing first-class image and video YUY2 and MJPEG compression
The super wide field of view 144° supply true color image with no distortion, suitable for document scanner, LED large screen display, LED display, intelligent electronic blackboard and other educational products. Compatible with Windows 7, 8/10/11, Linux operating system.
Features:
More than HD: Adopting advanced sony imx179 image sensor for high quality image, 8.0 Megapixel,the max resolution:3264*2448P,high frame rate 2448P@15fps,Compression format :MJPEG / YUV2(YUYV).
Wide Angle 144 Degree Usb Camera Module: Camera module with wide angle 144 degree no distortion lens,8MP full HD 2448p web cameras module can meet most capturing and video requirements,high resolution 4K camera module with sony imx179 image sensor which is the high standard in terms of image quality and sensitivity performance,equipped with 1 meters usb cable,support otg optional.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: This tiny 32mm x 32mm camera board can be installed in most hidden and narrow position for a home security system, camera of 3D Printer,document scanner, OCR reader, beauty instrument, teaching system,object recognition and tracking or other machine vision application.
Note: There is a lens shading problem after changing the lens, so we don’t recommend changing the lens.

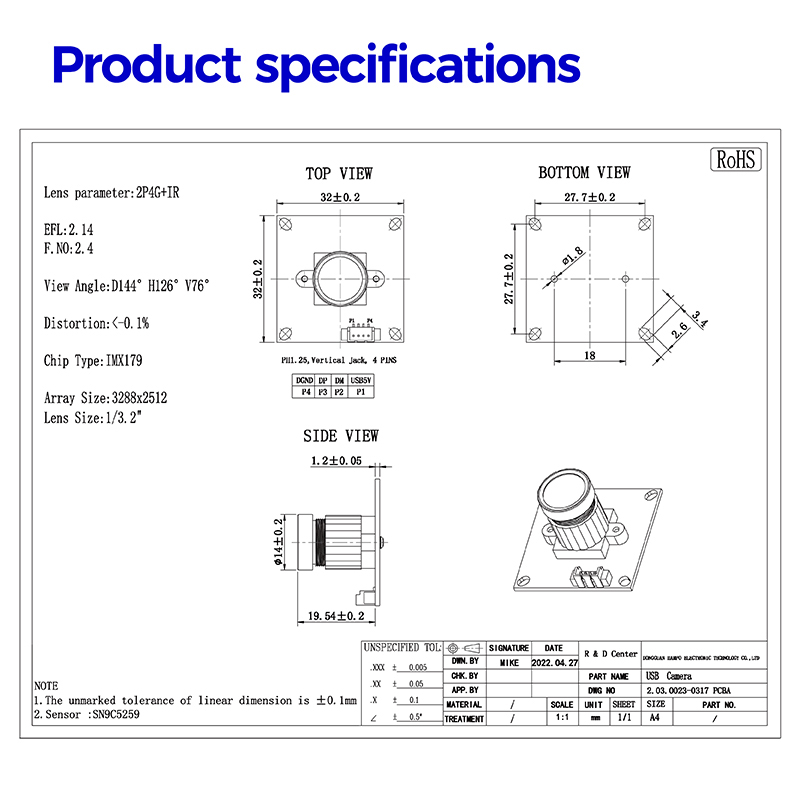

SPECS:
|
Camera
|
|
|
Model No.
|
003-0023
|
|
Max Resolution
|
3264*2448P
|
|
Sensor
|
1/3.2" IMX179
|
|
Frame Rate
|
MJPG 3264*2448@15fps
|
|
Pixel Size
|
1.4μm*1.4μm
|
|
Output Format
|
YUY2/MJPG
|
|
Dynamic Range
|
70dB
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=144° H=126°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Power
|
|
|
Working Current
|
MAX 250mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
Operating Temp
|
Depend on the environmental temperature
|
|
PCB Size
|
32*32MM(Hole pitch compatible with 27.7x27.7mm)
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
19.54MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Exposure/ White balance
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications:
Document Scanner
Education Products:Smart e-blackboard, LED display, big screen display etc.
