GC1024 720P Camera Module Support H.264

This stereo camera module is in USB 2.0 interface, with 1/4” GC1024 CMOS sensor, image quality is high and stable. The resolution is 1296(H)*742(V) @30fps, suport H.264 high compression technology.

Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days

Send email to us

Product Detail

Product Tags

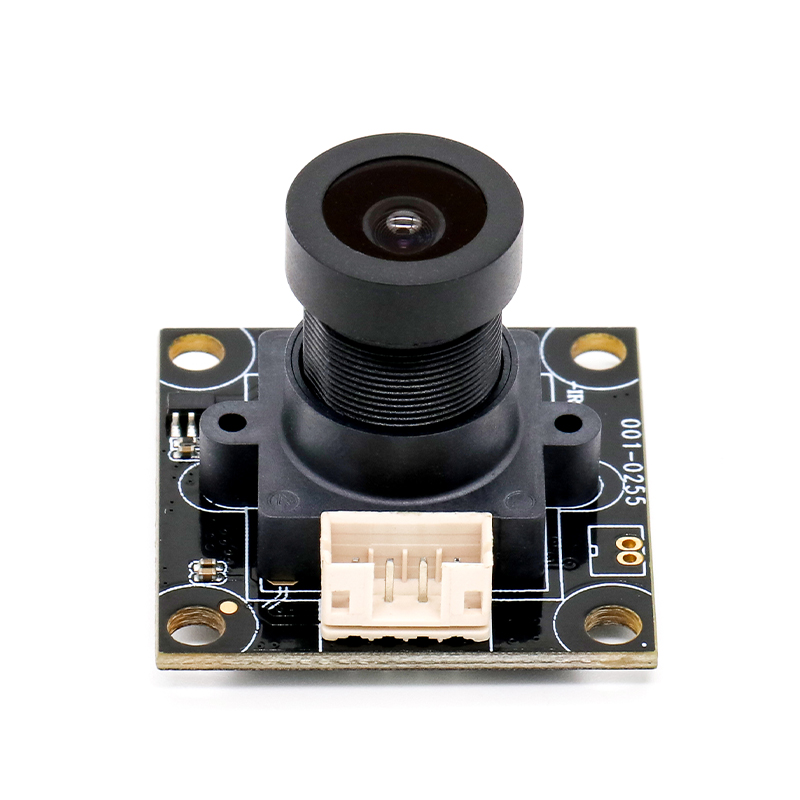

003-0255 is a HD USB camera module with 1/4” GC1024 CMOS sensor, the image quality is high and stable. The max frame rate is 30fps at 1296*742P.Compatible with most OS and popular Apps: Win XP/ Vista /Win7/Win8 Linux with UVC.

GC1024 720P Camera Module Support H.264

Key Features:

1. Ultra Wide View of Angle:

This camera module has a very wide view of angle at FOV 125°, could capture more into your image.

2. 720P HD USB Camera Module:

The camera’s resolution is 1 Mega Pixel(1296*742P) at 30fps with 1/4” GC1024 CMOS sensor. High quality and stable video image for you.

3. Plug and Play & UVC:

Free drive 2 megapixel USB board module with USB2.0 cable, easy to set up, just plug & play, compatible with Windows XP/Vista/Win 7/8/10, Linux or OS with UVC, Mac and Android systems, also support OTG.

4. Support H.264:

Camera module with advanced H.264 encoding compresses a digital video file so that it only occupies one-twentieth the space of MPEG to deliver the same quality video. Enjoy stunning HD video with impressive video performance and faster transmission speed.

SPECS:

Camera

Sensor: GC1024

Sensor Size: 1/4″

Resolution: 1296*742

Output: MJPC/YUV/H.264

Frame Rate: 30fps

Lens

FOV: D=125°

Construction: 4G

Mount: M12*P0.5mm

Power
