1080P 100degree WDR Camera Module for Face Recognition

Hello, welcome to consult our products!

1080P 100degree WDR Camera Module for Face Recognition

Hampo 003-0691-C is a 8MP HDR(High Dynamic Range) camera module with a wide view of angle no distortion lens without microphone,the dynamic range up to 96dB,which allow the camera could compensates for images where there are dark and bright areas with WDR technology,in which can see sharp image even under the backlight.

Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

DATASHEET

Product Tags

OEM CMOS AR0230 UVC USB Module WDR PCB Board Camera Module for Windows Linux Access Control System



Description:

Hampo 003-0691-C is a 8MP HDR(High Dynamic Range) camera module with a wide view of angle no distortion lens without microphone,the dynamic range up to 96dB,which allow the camera could compensates for images where there are dark and bright areas with WDR technology,in which can see sharp image even under the backlight.

This HDR USB camera moduless are compliant with UVC protocol, based on 1/2.7″ AR0230 CMOS image sensor with pixel size of 3.0 x 3.0 µm and a dedicated high-performance Digital Signal Processor (DSP), that performs all the Auto functions (Auto White Balance, Auto Exposure control).
This 8MP camera module captures sharp images at a 30fps high frame rate per second.Widely used for data collection , security monitoring , face recognition, liveness detection, access control system, advertisement machine, smart terminal etc.

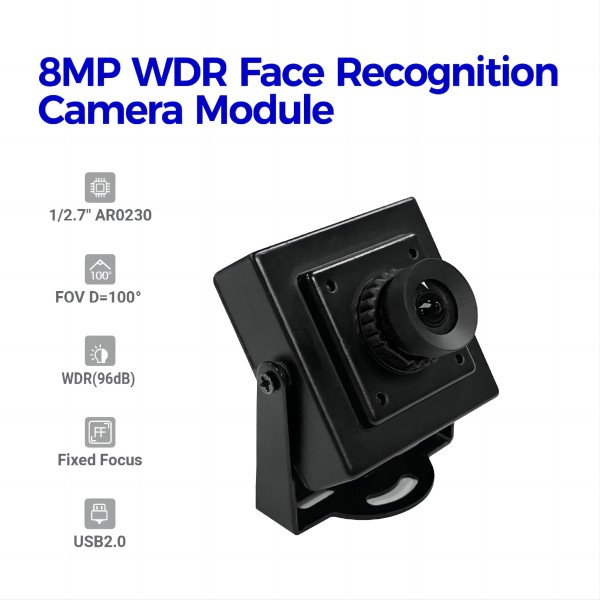

0691_1 副本(1)

Key Features:

Full HD Resolution: The camera module resolution is 1920*1080, has a high quality of image and video.

HD Sensor AR0230 Chip: The high definition sensor chip AR0230 enables stable working performance with better clarity as well.
High Dynamic Range: The camera module with WDR technology, the max dynamic range could up to 96dB, which allow the camera capture a clear image or video even under the backlight condition.
Wide View of Angle: The camera module with a 98degree wide angle distortionless lens.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Wide Applications: The camera module with mini PCB board at 38*38(mm), compatible 32*32(mm) can be installed in most hidden and narrow position such as access control system, advertisement machine, license plate recognition,visual doorbell, smart terminal etc.
0691_3 副本(1)

SPECS:

Camera
Model No.
003-0691
Max Resolution
1920*1080P
Sensor
1/2.7″ AR0230
Frame Rate
MJPG 1920X1080@30FPS; 1280X1024@30FPS; 1280X720@30FPS; 1024X768@30FPS; 800X600@30FPS; 640X480@30FPS; 320X240@30FPS;
Pixel Size
3.0μm*3.0μm
Output Format
YUY2/MJPG
Dynamic Range
96dB
Lens
Focus
Fixed focus
FOV
D=100°
Lens Mount
M12 * P0.5mm
Power
Working Current
MAX 200mA
Voltage
DC 5V
Physical
Interface
USB2.0
Storage Temperature
-20ºC to +70ºC
PCB Size
38*38(mm)&32*32(mm)
Cable Length
3.3ft (1M)
TTL
16.68MM
Functionality and Compatibility
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
System Compatibility
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver



Applications

Access Control System

Face Recognition

LED Display

Data Collection etc.

0691_4
