Customized 1080P Dual Lens Camera Module
USB 2.0 Dual-Lens 2MP Driver Free AF/FF Wide Dynamic Lens Customized Plug Play Webcam Camera Module for Detection Smart Screen

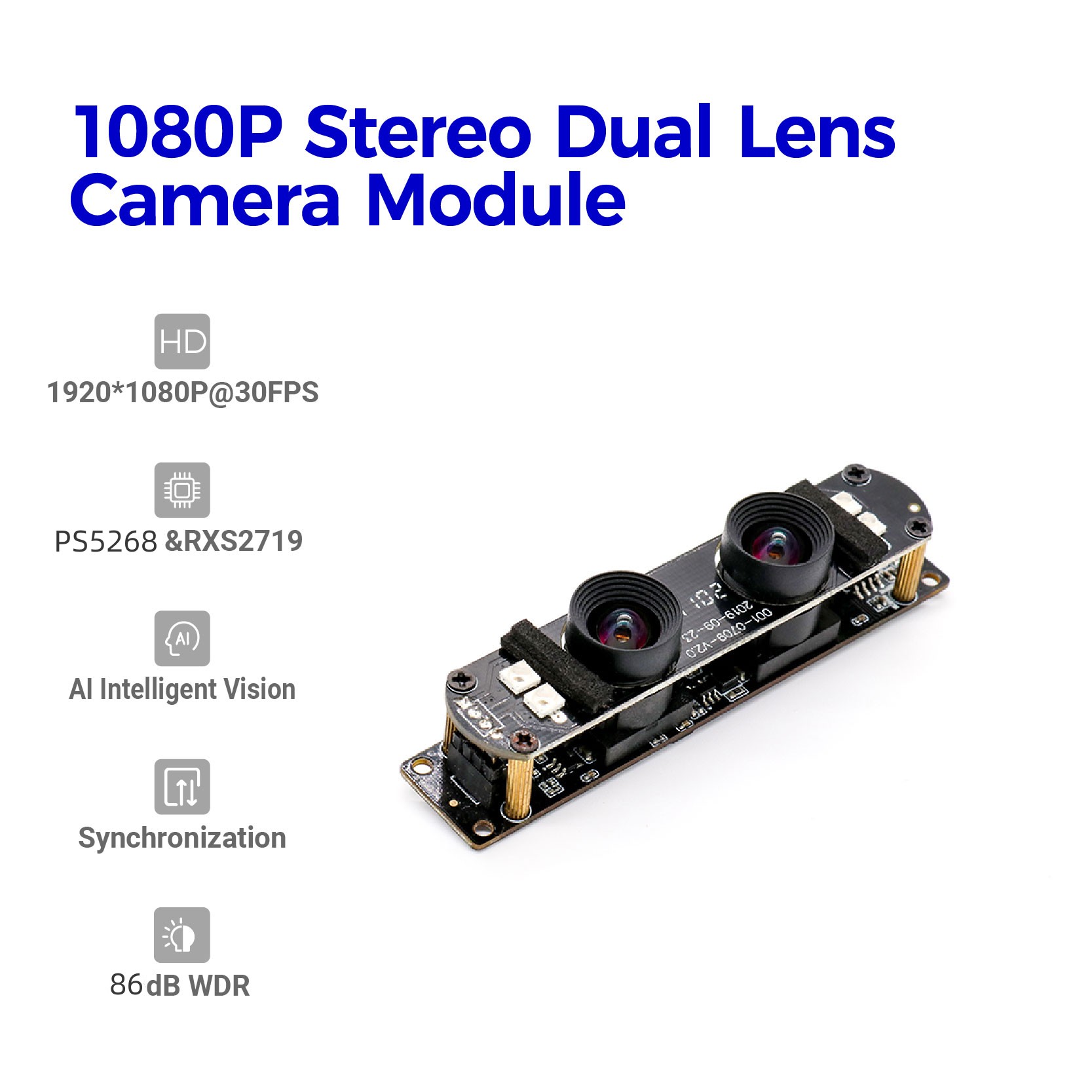

003-1031/002-0709 is a synchronized dual lens USB camera module, with 1/2,7" CMOS PS5268 & RX2719 sensor, the max resolution is 1920*1080P @30fps.
Wide dynamic rage could reach 86db. Binocular dual lens camera can obtain depth range data without identifying
the target, but the single lens camera must identifying the target first, that's why the dual lens cameras being used widely on some industrial like face recognition, intelligent traffic etc. Smaller error, and more accurate.
the target, but the single lens camera must identifying the target first, that's why the dual lens cameras being used widely on some industrial like face recognition, intelligent traffic etc. Smaller error, and more accurate.
There are 2 DSP/CHIP and 2 USB cables, each chip controls its own sensor, so the 2 sensors work separately, you can choose to use PS5268 sensor only, or you can choose to use RX2719 sensor only, or you can use them at the same time; What's more, you can choose their resolution & frame rate as you want.
Features:
Synchronized dual lens camera module
Dual 2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do.
Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth
perception.
HD 2MP +2MP Resolution
The camera module adopt PS5268 WDR color sensor and RX2719 IR sensor. The max frame rate 30fps, full HD image.
Wide Dynamic Range
The dual lens camera module support an excellent wide dynamic range, the max WDR could up to 86dB.
Best Universal Compatibility
Dual lens camera module support USB 2.0 OTG, plug&play.
USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux with UVC.
SPECS:
|
Model
|
003-1031
|
002-0709
|
|
Max Resolution
|
1920*1080
|
1920*1080
|
|
Sensor Size
|
1/2.7"
|
1/2.7"
|
|
Pixel Size
|
3.0μm*3.0μm
|
3.0μm*3.0μm
|
|
Wide Dynamic range
|
86DB
|
76DB
|
|
Output Format
|
MJPG/YUY2
|
MJPG/YUY2
|
|
Focus
|
Fixed focus
|
|
|
Frame rate
|
30fps
|
|
|
Voltage
|
DC 5V
|
|
|
Working current
|
MAX 500mA
|
|
|
Interface
|
USB 2.0
|
|
|
Storage Temperature
|
-20°C to +70°C
|
|
|
System compatibility
|
1) Windows XP(SP2,SP3)/Vista/7/8/10
2) Linux or OS with UVC driver
|
|
|
Audio
|
/
|
|
|
PCBA Size
|
80*16*11.6mm
|
|
|
FOV
|
D=73.5°
|
|
|
TTL
|
8.61mm
|
|
|
Lens construction
|
4E+IR
|
|
|
Thread size
|
M8*P0.5mm
|
|
ApplicationsAccess Control SystemID Detection
Face Recognition
LED Display etc.
