8MP OS08A20 3D Global Exposure DVP MIPI Camera Module

HAMPO-H3MF-OS08A20 is a 8megapixel MIPI interface camera module,using OS08A20 image sensor which supports a wide range of resolution formats and frame rates, including 4K2K (3840×2160) in a 16:9 aspect ratio at 60 frames per second (fps), quad HD (2560×1440) at 60 fps, or full 1080p HD at 120 fps. It comes in a 2×2-micron pixel size and 1/1.8-inch optical format for improved sensitivity.

Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days

Send email to us

Product Detail

DATASHEET

FAQ

Product Tags

OS08A10 OS08A20 8mp 3D Global Exposure DVP MIPI Camera Module No IR Filter M14 Fixed Focus Camera Module

Product Description

HAMPO-H3MF-OS08A20 is a 8megapixel MIPI interface camera module,using OS08A20 image sensor which supports a wide range of resolution formats and frame rates, including 4K2K (3840x2160) in a 16:9 aspect ratio at 60 frames per second (fps), quad HD (2560x1440) at 60 fps, or full 1080p HD at 120 fps. It comes in a 2x2-micron pixel size and 1/1.8-inch optical format for improved sensitivity.

Specification

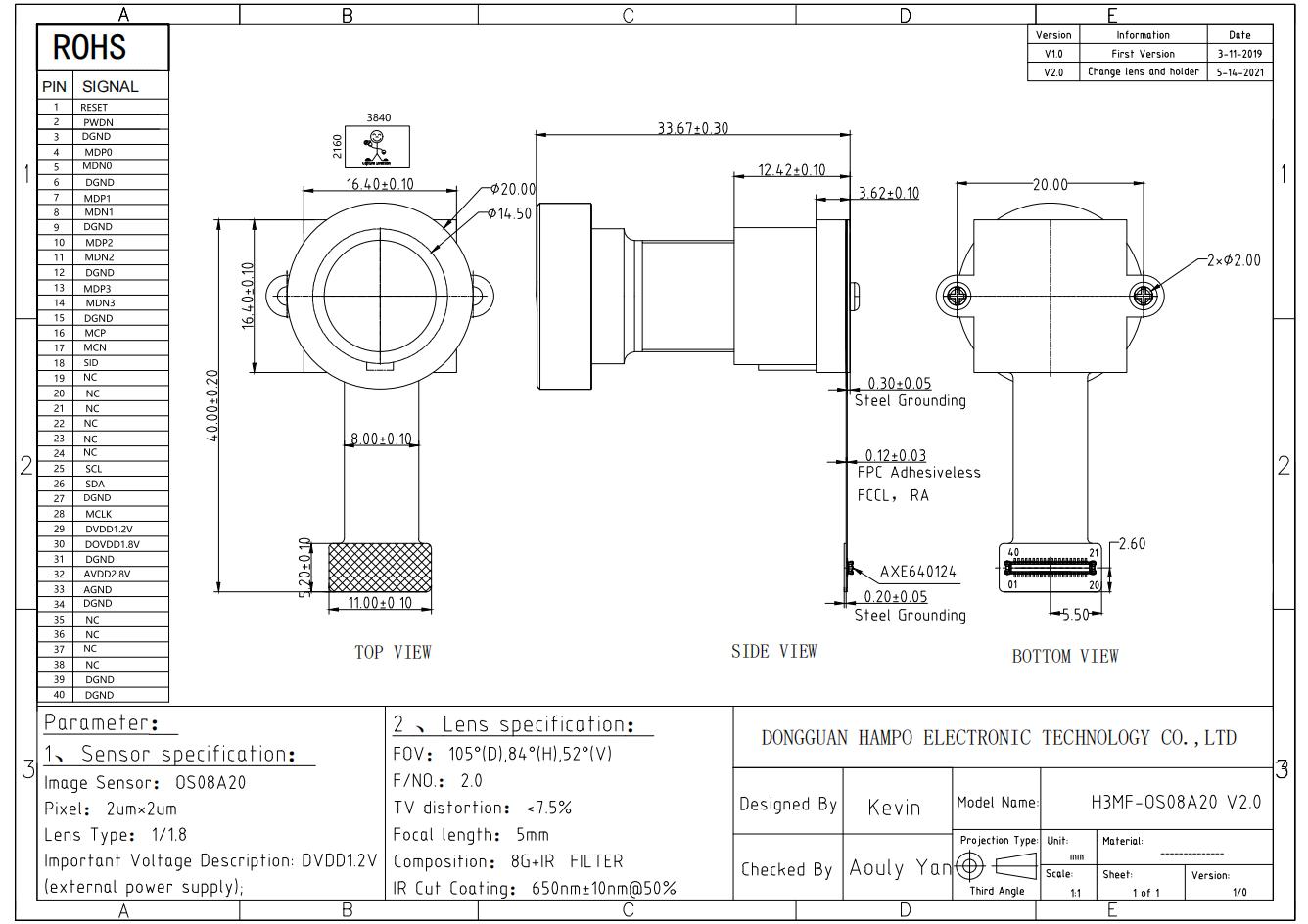

Camera Module No.	HAMPO-H3MF-OS08A20 V2.0 NIR
Resolution	8MP
Image Sensor	OS08A20
Sensor Size	1/1.8"
Pixel Size	2.0 um x 2.0 um
EFL	5 mm
F/No.	2.0
Pixel	3840 x 2160
View Angle	105.0°(DFOV) 84.0°(HFOV) 52.0°(VFOV)
Lens Dimensions	16.40 x 16.40 x 33.67 mm
Module Size	40.00 x 22.00 mm
Focusing	Fixed Focus
Interface	MIPI
Lens Type	No IR Filter Lens
Operating Temperature	-30°C to +85°C

Key Features

2 µm x 2 µm pixel
optical size of 1/1.8"
QE enhancement in 850 nm and 940 nm
programmable controls for:
- frame rate
- mirror and flip
- cropping
- windowing
supports output formats:
- 12-/10-bit RAW RGB
supports image sizes:
- 4K2K (3840x2160)
- 2560 x 1440
- 1080p (1920x1080)
- 720p (1280x720)
supports 2x2 binning
standard serial SCCB interface
12-bit ADC
up to 4-lane MIPI/LVDS serial output
interface (supports maximum speed
up to 1500 Mbps/lane)
2-exposure staggered HDR support
programmable I/O drive capability
light sensing mode (LSM)
PLL with SCC support
support for FSIN

Applications

Previous: 8MP IMX219 MIPI Interface M12 Fixed Focus Camera Module

Next: 8MP OmniVision OV8856 MIPI Interface Fixed Focus Camera Module

Here are Some Quick Links and Answers to Frequently Asked Questions.

Check back for updates or contact us with your question.

1. How to order?

We will quote the price to customers after received their requests. After customers confirmed the specification, they will order samples for testing. After inspected all devices , it will be sent to the customer by express.

2. Do you have any MOQ (minimum order)?

Sample order will be supported.

3. What is the payment terms?

T/T bank transfer is accepted ,and 100% balance payment before goods shipment.

4. What is your OEM requirement?

You can choose multiple OEM services includes the pcb layout, update the firmware, color box design, change deceive name, logo label design and so on.

5. How many years have you been established?

We focus on the audio&video products industry over 8 years.

6. How long is the warranty?

We offer 1 year warranty to all of our products.

7. How long is the delivery time?

Normally the sample devices could be delivered within 7 working day , and the bulk order will depend on the quantity .

8.What kind of software support I can get?

Hampo provided lots of tailor-made rugged solutions to customers, and we can also provide SDK for some of projects, software online upgrade , etc.

9.What kind of services can you provide?

There is two services models for your option ,One is OEM service ,which is with customer’s brand based on our off-the-shelf products ;the other is ODM service according to the individual demands ,which included Appearance design ,structure design ,Mold development ,software and hardware development etc.

8MP Global exposure DVP module
