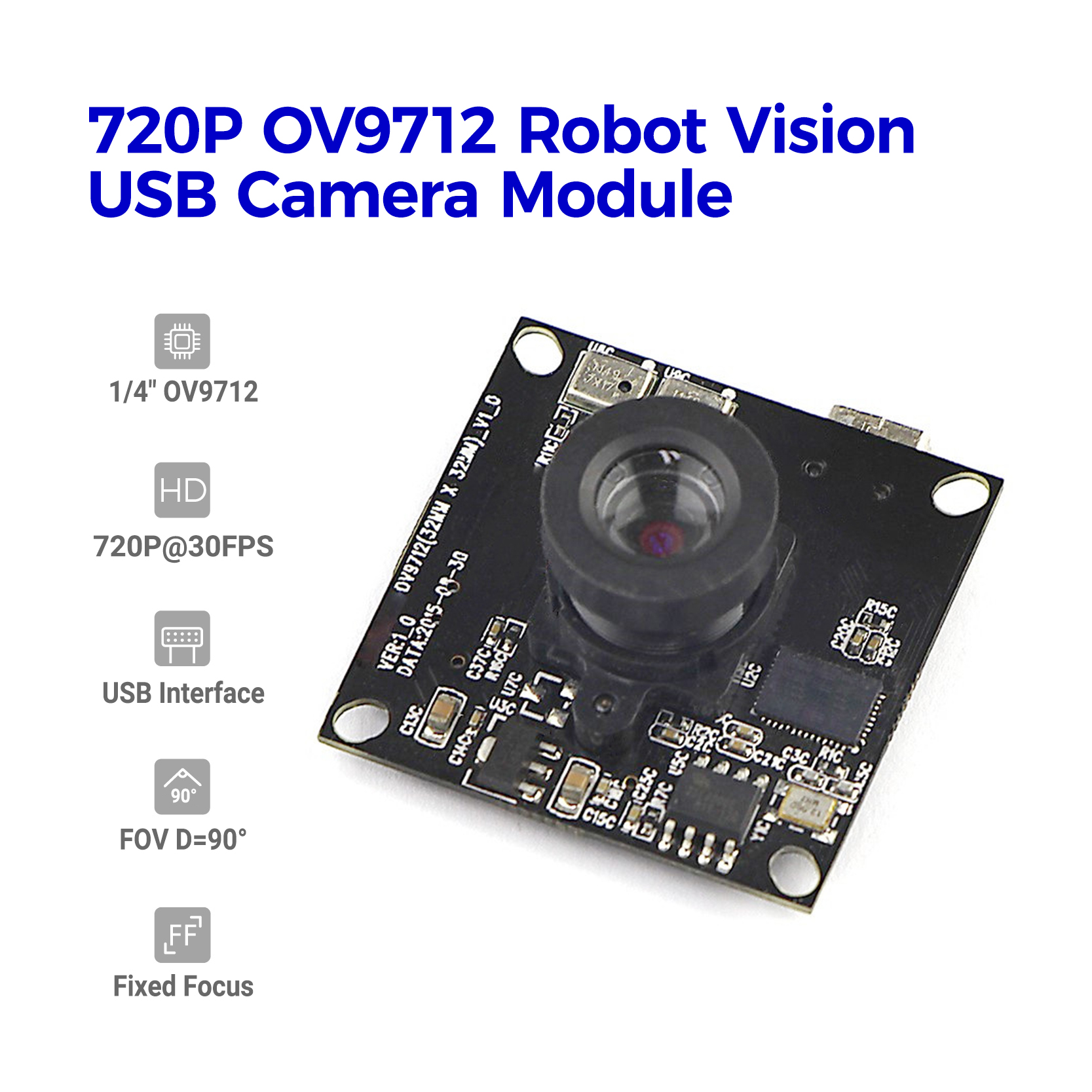

720P Robot Camera Module with OV9712 Sensor
20P Robot Camera Module with OV9712 Sensor HD USB camera module
003-0019 is a HD USB camera module with 1/4'' OV9712 CMOS image sensor, the image quality is high and stable. Max frame rate is 30fps at 1280*720P. The size is 32MM*32MM, we have some other module sizes for you to choose, and also we can adjust module size & shape according to your requirement. We can also put LEDs and IR CUT filter on this module, so that you can use it both for day and night.
2022 sees robotics gain momentum and become vital components in a number of applications. From swarms of “microbots” to self-assembling modular robots to strength-enhancing robotic exoskeletons, applications using robotics cut across industries and transform the way work is done. Robots paired with AI perform complex actions and are capable of learning from humans, driving the intelligent automation phenomenon.This camera module has excellent low light performace, low voltage and low power consumption perfect for robot machine system.
Compatible with most OS and popular Apps:
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
Key Features:
>>HD 720P with Omnivision OV9712 CMOS sensor
>>Low illumination, Low-light sensitivity
>>Wide angle view at 90degree
>>High quality image, High quality microphones UVC compliant, Plug & Play
>>Support Linux, Android, Mac and Windows, etc
>>Module size & shape is adjustable
>>Widely used for robotics, robot and artificial intelligence/AI, etc
SPECS:
| Items | Parameters |
| SENSOR | OV9712 |
| Lens Size | 1/4" |
| Maximum Pixels | 1 mega |
| Maximum Effective Resolution | 1296(H)*742(V) |
| Data Format | YUY2/MJPG/H.264 |
| Pixel Size | 3.4um*3.4um |
| Dynamic Range | / |
| Lens | FOV :D=90° |
| Optical length :3.6mm | |
| lens construction:4G | |
| mount :M12*P0.5mm | |
| Focusing | Fixed focus) |
Here are Some Quick Links and Answers to Frequently Asked Questions.
Check back for updates or contact us with your question.
1. How to order?
We will quote the price to customers after received their requests. After customers confirmed the specification, they will order samples for testing. After inspected all devices , it will be sent to the customer by express.
2. Do you have any MOQ (minimum order)?
Sample order will be supported.
3. What is the payment terms?
T/T bank transfer is accepted ,and 100% balance payment before goods shipment.
4. What is your OEM requirement?
You can choose multiple OEM services includes the pcb layout, update the firmware, color box design, change deceive name, logo label design and so on.
5. How many years have you been established?
We focus on the audio&video products industry over 8 years.
6. How long is the warranty?
We offer 1 year warranty to all of our products.
7. How long is the delivery time?
Normally the sample devices could be delivered within 7 working day , and the bulk order will depend on the quantity .
8.What kind of software support I can get?
Hampo provided lots of tailor-made rugged solutions to customers, and we can also provide SDK for some of projects, software online upgrade , etc.
9.What kind of services can you provide?
There is two services models for your option ,One is OEM service ,which is with customer’s brand based on our off-the-shelf products ;the other is ODM service according to the individual demands ,which included Appearance design ,structure design ,Mold development ,software and hardware development etc.
