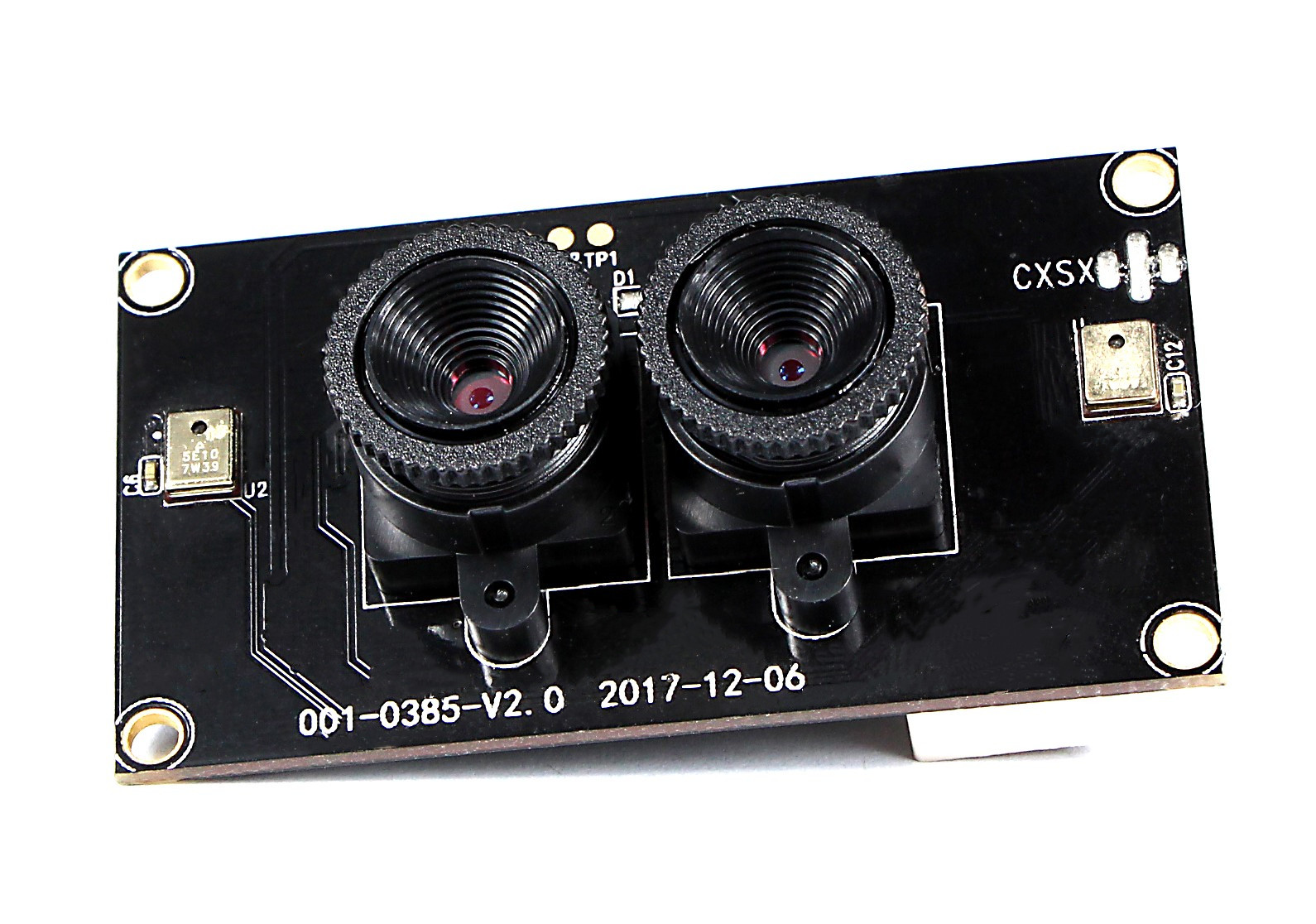

720P OV9732 Dual Lens Camera Module
003-0385 is a dual lens with 1/4” Omnivision OV9732 CMOS sensor, image quality is very high and stable. This camera module was designed synchronized technology with 1 DSP, 1 USB cable and 2 sensors, the 2 images come out at the same time, with same resolution, same frame rate,in color images.
The uniqe advantage of this dual lens camera module is that you can either use it as dual lens camera module or single lens camera module. When you choose resolutions like 2560×720, 1280×480 and 640×240, it will function as a Dual-lens camera module; When you choose resolutions like 1280×720, 640×480 and 320×240, it will function as a Single-lens camera module, only one sensor and one lens working.
Binocular camera can obtain depth range data without identifying the target, but the single lens camera must identifying the target first. You could switch that between two functions as you like.
Key Features:
1. Dual Lens or Single Lens Could be Optioned: 720P HD camera module has 1 DSP, 1 USB cable and 2 sensors, the 2 images come out at the same time, with same resolution, same frame rate, in color image. When you choose resolutions like 2560×720, 1280×480 and 640×240, it will function as a Dual-lens camera module; When you choose resolutions like 1280×720, 640×480 and 320×240, it will function as a Single-lens camera module. You could switch that between two functions as you like.
2. 720P HD USB Camera Module: The camera’s resolution is 1 Mega Pixel(1280*720P)with 1/4” Omnivision OV9732 CMOS sensor. The frame rate as below:
Work as dual lens function: MJPG:2560×720@30FPS; 1280×480@30FPS; 640×240@30FPS;
YUY2:1280×480@15FPS; 640×240@30FPS;
Work as single lens function:
MJPG:1280×720@30FPS; 640×480@30FPS; 320×240@30FPS;
YUY2:1280×720@7FPS; 640×480@30FPS; 320×240@30FPS;
3. Plug and Play & UVC: Free drive 2 megapixel USB board module with USB2.0 cable, easy to set up, just plug & play, compatible with Windows XP/Vista/Win 7/8/10, Linux or OS with UVC, Mac and Android systems, also support OTG.
SPECS:
Camera
Sensor: OV9732&OV9732
Sensor Size: 1/4″&1/4″
Resolution: 1280*720 & 1280*720 OR 2560*720 & 1280*720
Output: MJPC/YUV
Frame Rate: 30fps
Wide Dynamic Range: 72DB
Lens
FOV: D=70°
Construction: 5P
Mount: M12*P0.5mm
Power
Power Supply: DC 5V
Working Current: MAX 300mA
Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 54*30mm
Applications
Access Control System
ID Detection
Face Recognition
Intelligent Transportation System etc.
