60*9mm Mini 5MP AF OV5648 Camera Module
Lens Customized 5MP High Definition AF CMOS OV5648 Image Sensor Wide Angle Plug and Play Laptop Computer Mini Camera Module
Description:

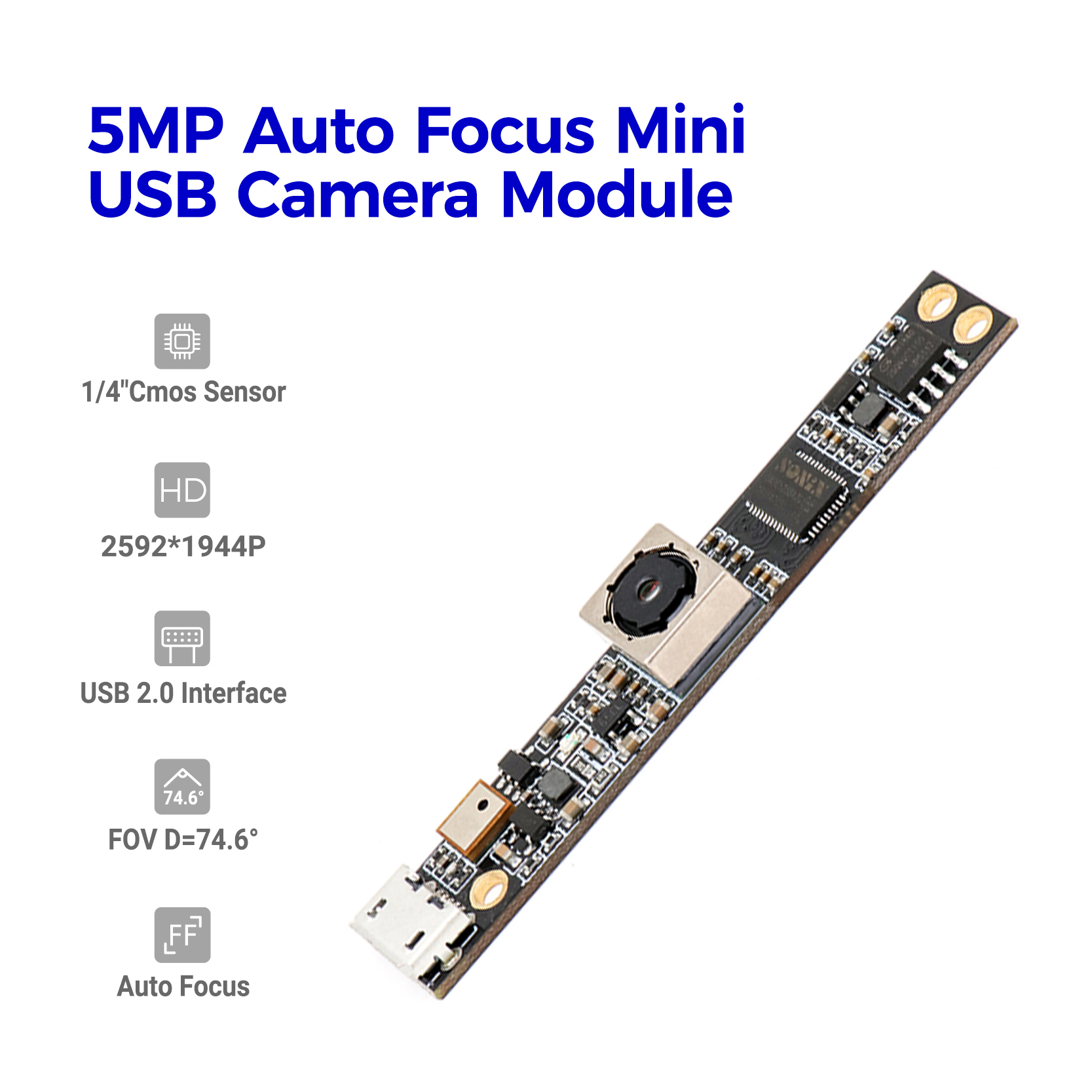

Hampo 003-0535 is a 5megapixel high resolution autofocus mini camera module, which is on the basic of 1/4" OV5648 CMOS sensor, the image quality is very high and stable. The USB connection port in the camera module supports USB 2.0 high-speed data transmission and OTG protocol (UVC). The 5MP USB camera has a dedicated, high performance image signal processor chip that performs all automatic functions (automatic white balance, automatic exposure control), as well as a complete image signal processing pipeline, providing first-class image and video YUY2 and MJPEG compression The camera module with ultra tiny PCB board at 60mm*9mm, can be installed in most hidden and narrow position such as document scanner, LED large screen displayer, advertisement machine, all-in-one machine, laptop,intelligent electronic blackboard and other educational products application. Compatible with Windows 7, 8/10/11, Linux operating system.
Features:
5MP HD High Resolution USB Webcam Module with Audio
Auto Focusing
Mini Size
Plug&Play:
Applications:

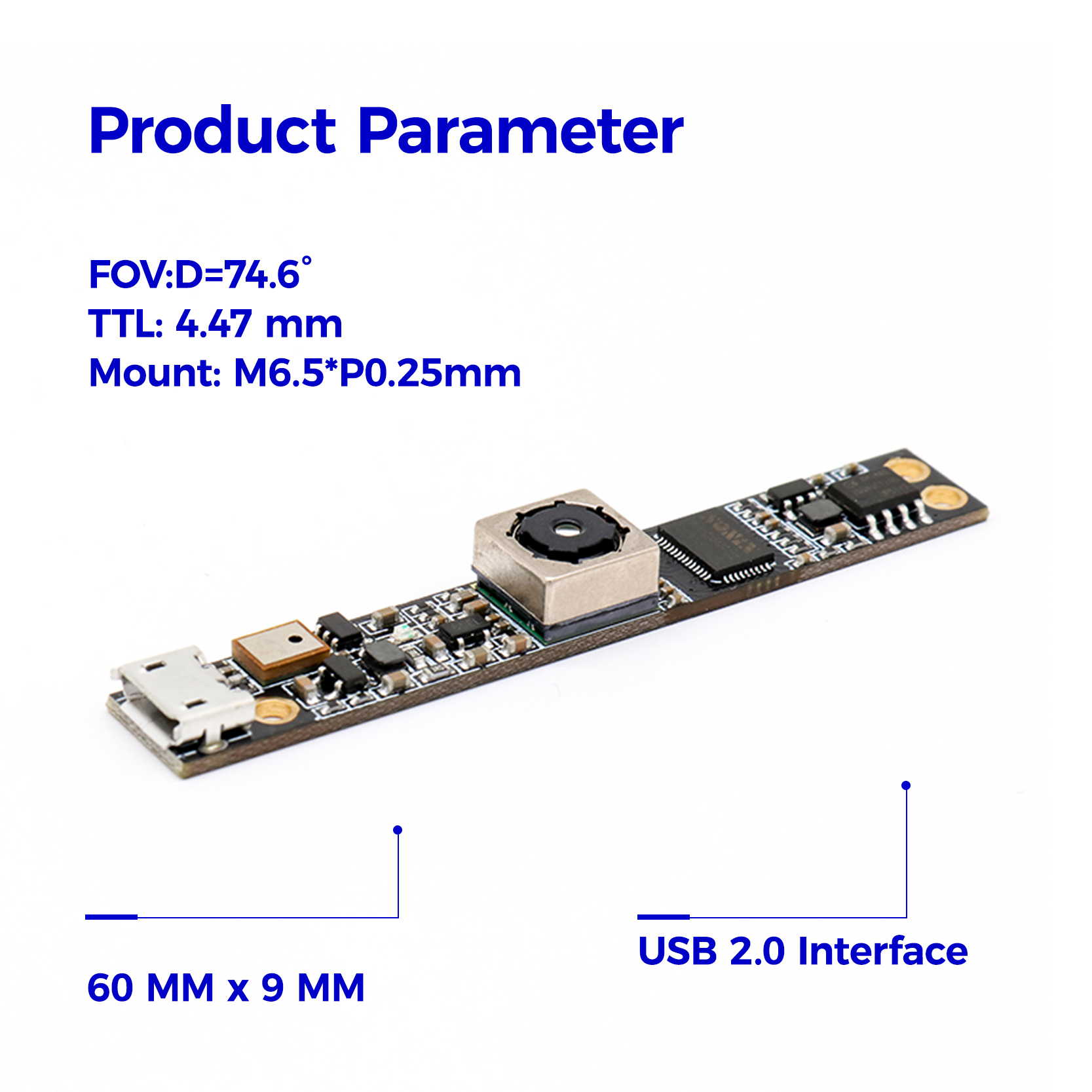

SPECS:
|
Model
|
003-0535
|
|
Max Resolution
|
2592*1944
|
|
Sensor Size
|
1/4"
|
|
Pixel Size
|
1.4μm*1.4μm
|
|
Wide Dynamic range
|
/
|
|
Output Format
|
MJPG/YUY2
|
|
Focus
|
AF
|
|
Frame rate
|
30fps/15fps
|
|
Voltage
|
DC 5V
|
|
Working current
|
MAX 500mA
|
|
Interface
|
USB 2.0
|
|
Storage Temperature
|
-20°C to +70°C
|
|
System compatibility
|
1) Windows XP（SP2,SP3）/Vista/7/8/10
2) Linux or OS with UVC driver
|
|
Audio
|
YES
|
|
PCBA Size
|
60*9mm
|
|
FOV
|
D=74.6°
|
|
TTL
|
4.47mm
|
|
Lens construction
|
5P
|
|
Thread size
|
M6.5*P0.25mm
|
Applications
All-in-one machine, POS equipment /Credit card machine, Automatic vending machine, ATM, Face Matching, OCR components/OCR Reader, Teaching system, Security system, Automobile data recorder, Attendance machine, Industrial camera, Document Reader/Document scanner
