CAMERA MODULE

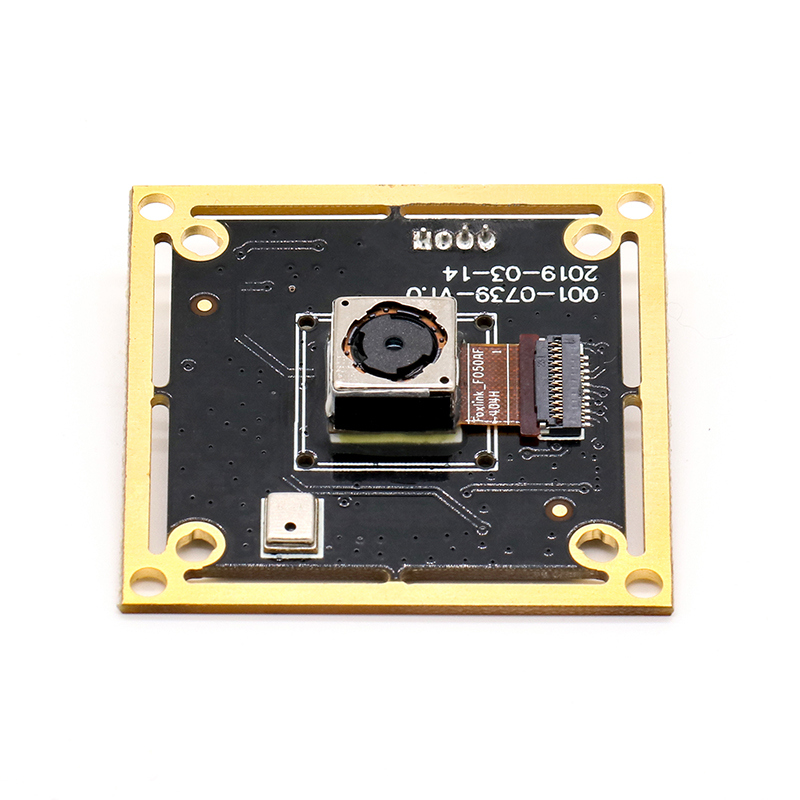

5MP OV5640 Auto Focus Camera Module

Hello, welcome to consult our products!

5MP OV5640 Auto Focus Camera Module

1/4” CMOS OV5640 sensor 5MP high frame 30fps USB camera module, with FOV 70° auto focus lens. Compatible with Windows XP(SP2,SP3)/Vista/7/8/10, Linux or OS with UVC driver.



Support:Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

Product Tags

Description:

003-0739 5MP(2592*1944P@30fps) USB camera module, 2K of resolution show you a ultra clear image.Compatible with Windows XP(SP2,SP3)/Vista/7/8/10, Linux or OS with UVC driver.

5MP OV5640 Auto Focus Camera Module5MP OV5640 Auto Focus Camera Module

Features:

5MP HD Resolution:

2592*1944P high resolution with  high quality OV5640 sensor, deliver sharp images effectively. High definition with low color reproduction deviation.



AF Auto Focusing:

Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera. It can quickly and automatically refocus when an object changes position.







Plug & Play:

Drive-free USB camera module is very easy to use, just need to plug the camera to USB port, no need to download or install any drivers. High speed USB 2.0 USB camera also support OTG protocol(UVC).



Wide Compatibility:

5MP HD USB camera compatible with Windows Win XP/Vista/Win7/Win8 /Win10, Linux with UVC





SPECS:

Camera

Sensor: OV5640

Sensor Size: 1/4”

Resolution: 2592*1944

Output: MJPC/YUV

Focusing: AF

Frame Rate:

MJPG:

2592×1944@30fps; 2048×1536@30fps; 1920×1080@30fps; 1280×720@30fps; 960×540@30fps; 848×480@30fps; 640×480@30fps; 640×360@30fps;  320×240@30fps;



YUY2:

2592×1944@2fps; 2048×1536@2fps; 1920×1080@2fps; 1280×720@8fps; 960×540@15fps; 848×480@20fps; 640×480@30fps; 640×360@30fps; 320×240@30fps;



Lens

FOV: D=70°

Construction: 4E+IR

Mount: M12*P0.5mm



Power

Power Supply: DC 5V

Working Current: MAX 300mA



Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C).

Dimension: 38*38mm /32*32mm



Applications

Document Scanner

Video Conference

Smart Black Board

LED Display

Face Recognition etc.

5MP Video Conference Camera Module
