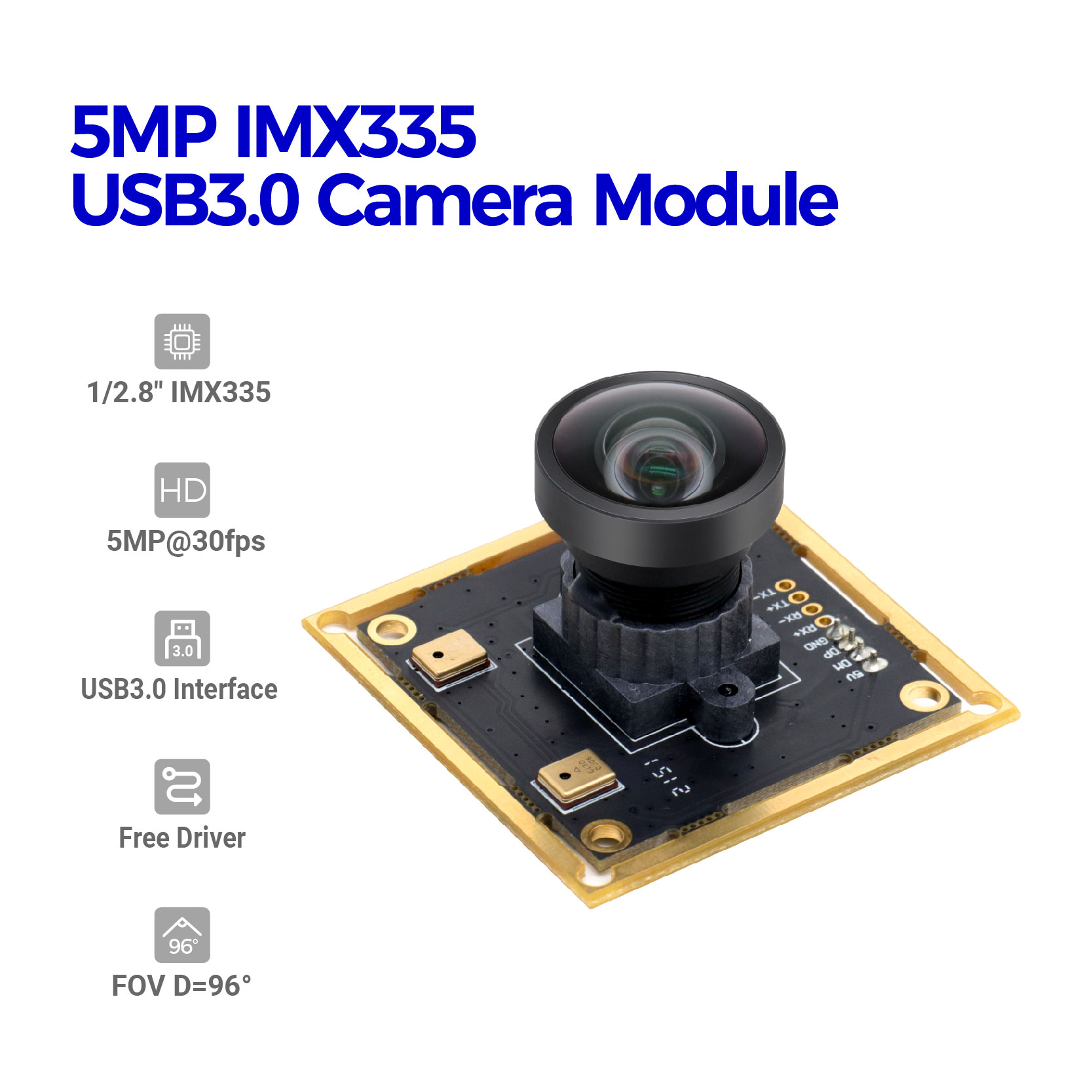

5MP IMX335 USB3.0 Camera Module
5MP 30fps 1/2.8" SONY STARVIS IMX335 CMOS Low Power Consumption High Speed USB3.0 Camera Module for Document Scanner
Description:
Hampo 003-1590 is a 5MP high speed USB3.0 camera module supply crisp image and crystal clear video. Adopting high quality 1/2.8" Sony IMX335 Cmos image sensor,has a 6.52mm diagonal providing 5MP resolution with a 2592 (H) x 1944 (V) effective image size while keeping the power consumption low. This high resolution camera is also backward compatible with USB 2.0, although in USB 2.0, this camera supports fewer resolutions at lower frame rates.The Sony Starvis backside illuminated pixel technology used on this camera module allows for high sensitivity in the visible light and near infrared spectrums making it ideal for document scanner,car and ship control,face matching,OCR components,all-in-one machine, advertising machines, automatic vending machine,industrial&medical equipment,robot project,security and surveillance etc. applications.
Features:
High Definition: The 2K 5MP webcam with 1/2.8 inch SONY IMX335 image sensor give you a high definition Image and video, offering a crystal clear image quality for video call,conference,etc..
High Frame Rates: MJPG:2592x1944@30fps; 2048x1536@20fps; 1920x1080@30fps; 1280x960@30fps; 1280x720@30fps; 1024x768@30fps;800x600@30fps; 640x480@30fps; 320x240@30fps; 160x120@30fps;
YUY2:2592x1944@2fps; 2048x1536@3fps; 1920x1080@3fps; 1280x960@8fps; 1280x720@8fps; 960x540@15fps; 800x600@20fps; 640x480@30fps;
High Speed USB 3.0：USB connecting port in this camera support high speed USB 3.0 data transmission.Faster and better experience than regular USB 2.0.
Dynamic Range: Features like a dynamic range up to 72dB, advanced HDR functions and digital overlap HDR further improve the image quality and contrast behavior allowing for more detailed image analysis.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
SPECS:
| Camera | |
| Model NO. | 003-1590 |
| Sensor | 1/2.8" IMX335 |
| Max Resolution | 2592*1944P |
| Frame Rate | 30fps |
| Output Format | Mjpg/Yuv |
| Dynamic Range | 72dB |
| Lens | |
| Field of View (FOV) | D=112° H=100° |
| Lens Mount | M12 * P0.5mm |
| Focusing Range | 3.3ft (1M) to infinity |
| TTL | 22MM |
| Power | |
| Power Supply | USB powered 5V |
| Working Current | MAX 200mA |
| Physical | |
| PCB Size | 38mm*38mm compatible with 32mm*32mm |
| Operating Temp | -4°F~158°F (-20°C~+70°C) |
| Cable Length | 3.3ft (1M),could be optioned |
| Functionality and Compatibility | |
| Adjustable paramete | Exposure/ White balance |
| System Compatibility | Win7/8/10, Linux, Mac, and OS with UVC driver |
Applications
All-in-one machinePOS equipment /Credit card machineAutomatic vending machineATMFace MatchingOCR components/OCR ReaderTeaching systemSecurity systemAutomobile data recorderAttendance machineIndustrial cameraDocument Reader/Document scanner
