3MP+1.3MP WDR Dual Lens Camera

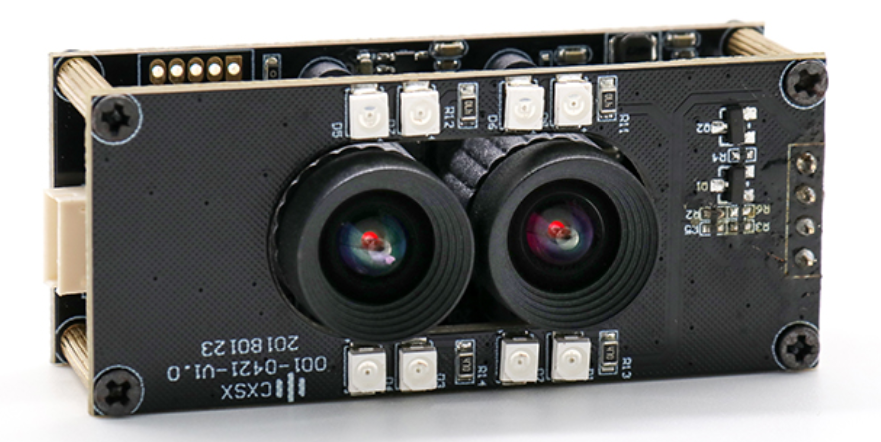

003-0420/002-0421 is a dual lens WDR camera module with 2048*1520 & 1280*960 resolution, the max wide dynamic range up to 100DB. (The WDR technology is applied for viewing the image smoothly under the condition of severe light contrast. Broadly speaking, it stands for the possible range of certain changing object or an area the minimum value and the maximum value spans that can be seen. WDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject.)
Binocular camera can obtain depth range data without identifying the target, but the single lens camera must identifying the target first, that’s why the dual lens cameras being used widely on some industrial like face recognition, intelligent traffic etc. Smaller error, and more accurate.
Key Features:
1. High Resolution & Wide Dynamic Range:
3MP+1.3MP HD of resolution, with 30fps of frame rate. The wide dynamic range up to 100DB. It could widely used for different light conditions, such as strong light, weak light, shadows, window positions, building entrances and many other big light constrast conditions.
2. Support H.264:
Camera module with advanced H.264 encoding compresses a digital video file so that it only occupies one-twentieth the space of MPEG to deliver the same quality video. Enjoy stunning HD video with impressive video performance and faster transmission speed.
3. Plug and Play & UVC:
Free drive 2 megapixel USB board module with USB2.0 cable, easy to set up, just plug & play, compatible with Windows XP/Vista/Win 7/8/10, Linux or OS with UVC, Mac and Android systems, also support OTG.
SPECS:
Camera
Sensor: AR0331 & AR0130
Sensor Size: 1/3” & 1/3”
Resolution: 2048*1520 & 1280*960
Output: MJPC/YUV
Frame Rate: 30fps
Wide Dynamic Range: 100DB&83.5DB
Lens
FOV: D=89°
TTL: 17.6mm
Construction: 2G3P
Mount: M12*P0.5mm
Power
Power Supply: DC 5V
Working Current: MAX 500mA
Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C).

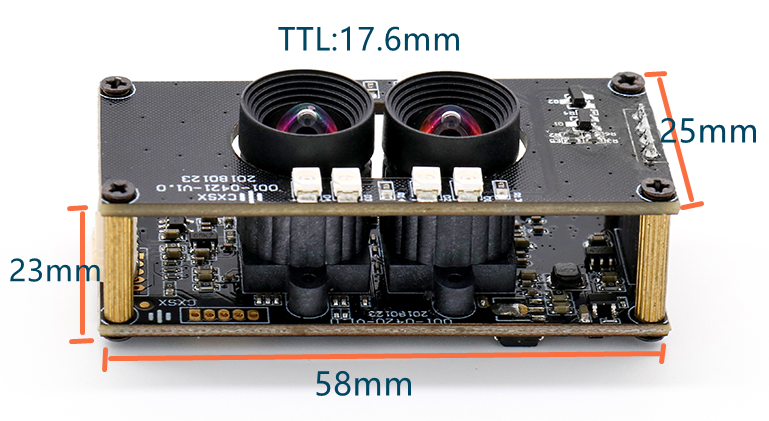

Dimension: 58*25*23mm
Applications
Access Control System
ID Detection
Face Recognition
LED Display etc.
