3MP AI Face Recognition Camera Module
Customized 3mp 2048*1536 low light Fixed Focus CMOS Micro AR0330 Wide Angle Distortionless H.264 USB Camera Module
Hampo 003-0651 is a 3MP USB camera module adopting 1/3−inch CMOS AR0330 digital image sensor with an active−pixel array of 2048 (H) x 1536 (V). It can support 3.15 megapixel (2048H x1536V) digital still image capture and a 1080p60+20%EIS (2304H x 1296V) digital video mode.
It has a dedicated, high-performance Image Signal Processor chip (ISP) on-board that performs the entire Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images, videos and the optional MJPEG/H.264 compressions.
Widely use for applications such as data collection , security monitoring , digital video camcorder, Web cameras and video conferencing cameras, smart terminal etc.
Key Features:
Full HD Resolution: The camera module has a full HD resolution, It can support 3.15 megapixel (2048H x1536V) digital still image capture and a 1080p60+20%EIS (2304H x 1296V) digital video mode.
HD Sensor AR0330 Chip: The high definition sensor chip AR0330 enables stable working performance with better clarity as well.
Support H.264 Output: H.264 board camera capture clear image but occupies less space than Mjpeg,Enjoy stunning HD video with impressive video performance and faster transmission speed.
Superior low-light performance: The camera module feature an excellent low illumination, which allow the usb camera can still record and provide clear images even in weak light conditions.
96 Degree Large View: Comes with 96 degree large field of view, providing you with larger visual range and wider field of view.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

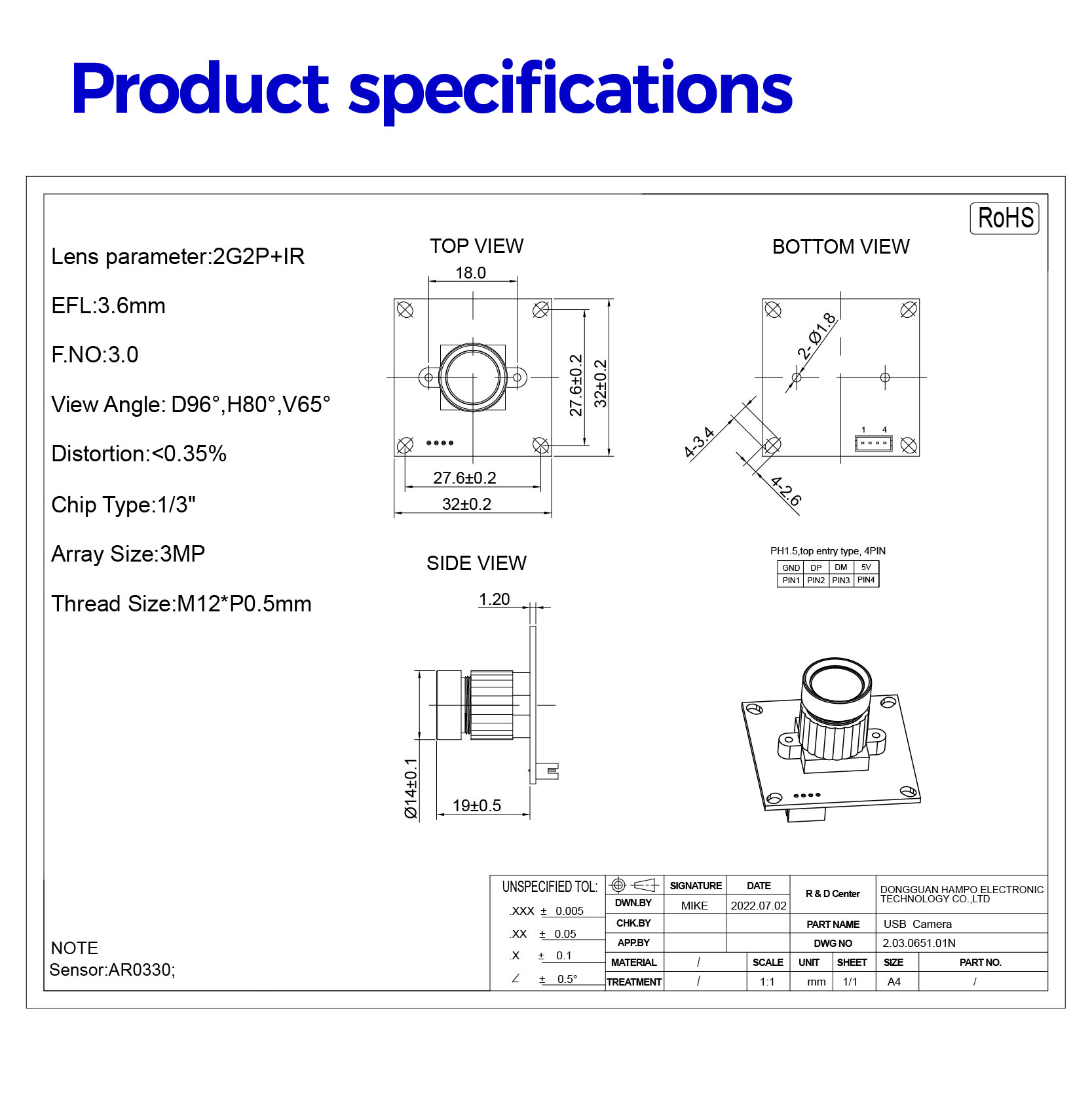

SPECS:
|
Camera
|
|
|
Model No.
|
003-0651
|
|
Max Resolution
|
2048*1536P&1920*1080P(Video mode)
|
|
Sensor
|
1/3″ AR0330
|
|
Frame Rate
|
30fps
|
|
Pixel Size
|
2.2μm*2.2μm
|
|
Output Format
|
YUY2/MJPG/H.264
|
|
Dynamic Range
|
69.5dB
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=96° H=80°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Power
|
|
|
Working Current
|
MAX 220mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
PCB Size
|
38*38(MM),compatible with 32*32(MM)
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
15.79MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications: This 3MP USB Camera Board has a mini size, only 32x32mm, widely used for the access control system, face recognition, LED display, etc. applications.
Related articles: USB Camera Module Manufacturing Process
