2MP PS5268 WDR Face Recognition Camera Module
Cost Effective Ultra Wide View of Angle 1080P PS5268 Wide Dynamic Range Facial Detection USB CMOS Camera Module
Hampo 003-1484 is another type 2MP HDR(High Dynamic Range) camera module with a competitive cost,the dynamic range up to 86dB,which allow the camera could compensates for images where there are dark and bright areas with WDR technology,in which can see sharp image even under the backlight.
This HDR USB camera moduless are compliant with UVC protocol, based on 1/2.7" PS5268 CMOS image sensor with pixel size of 3.0 x 3.0 µm and a dedicated high-performance Digital Signal Processor (DSP), that performs all the Auto functions (Auto White Balance, Auto Exposure control). This 2MP camera module captures sharp images at a 30fps high frame rate per second.
Wided used for applications such as data collection , security monitoring , face recognition, liveness detection, access control system, advertisement machine, smart terminal etc.
Key Features
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
|
Camera
|
|
|
Model No.
|
003-1484
|
|
Max Resolution
|
1920*1080P
|
|
Sensor
|
1/2.7" PS1484
|
|
Frame Rate
|
MJPG 1920X1080@30FPS; 1280X1024@30FPS; 1280X720@30FPS; 1024X768@30FPS; 800X600@30FPS; 640X480@30FPS; 320X240@30FPS;
|
|
Pixel Size
|
3.0μm*3.0μm
|
|
Output Format
|
YUY2/MJPG
|
|
Dynamic Range
|
86dB
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=135.2° H=124.6°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Power
|
|
|
Working Current
|
MAX 200mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
Operating Temp
|
-4°F~158°F (-20°C~+70°C)
|
|

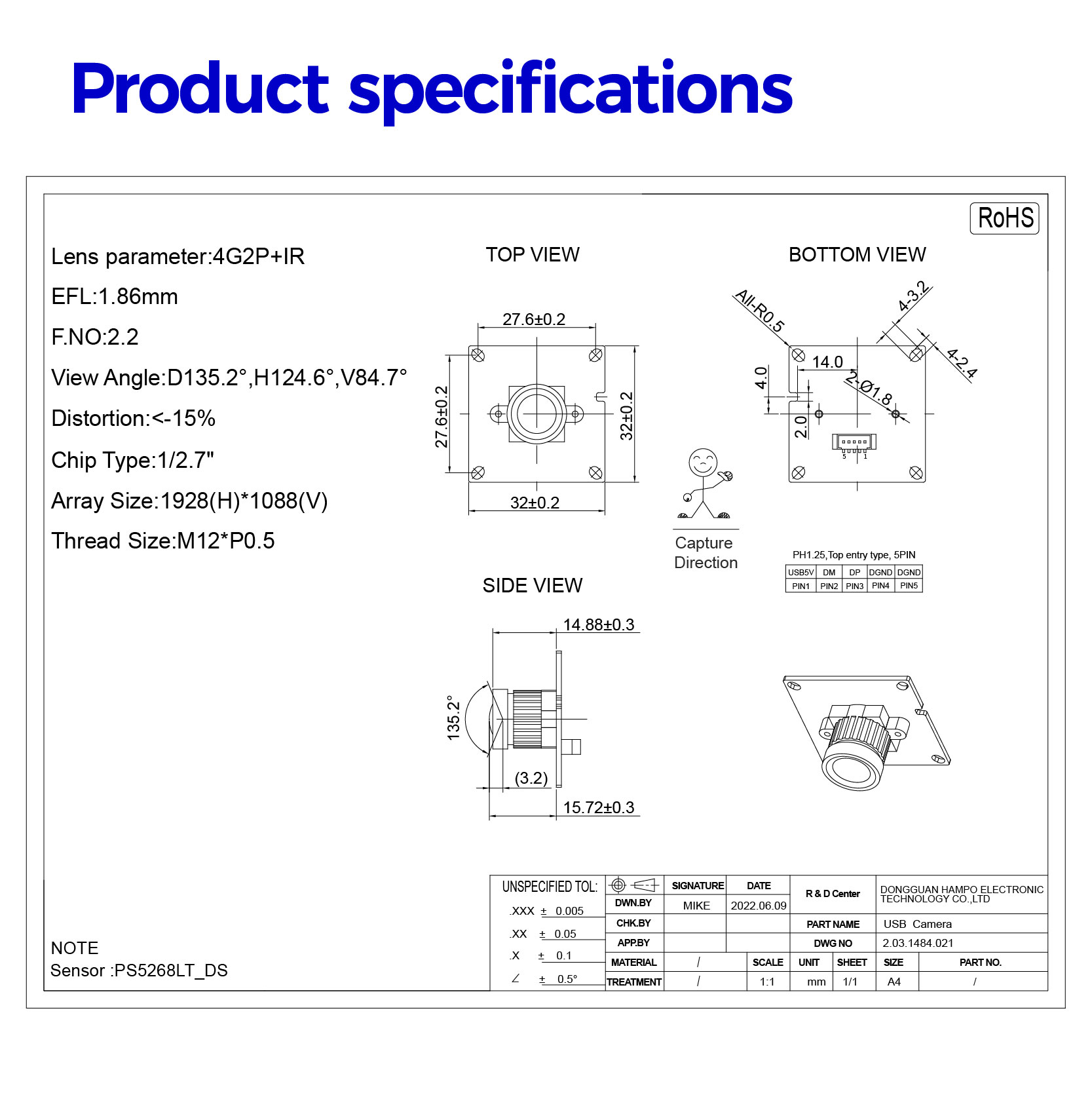

PCB Size
|
32MM*32MM(Hole pitch compatible with 27.6mmx27.6mm)
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
16.72MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
WDR (Wide Dynamic Range)
WDR (Wide Dynamic Range) or HDR is a term used to denote images with high dynamic range in video surveillance cameras. WDR enhances image quality under the high contrast illumination conditions, allowing to register details in the dark and light parts of the scope.
Applications
All-in-one machinePOS equipment /Credit card machineAutomatic vending machineATMFace MatchingOCR components/OCR ReaderTeaching systemSecurity systemAutomobile data recorderAttendance machineIndustrial cameraDocument Reader/Document scanner
