2MP IMX307 HDR Low Light Camera Module

Hello, welcome to consult our products!

2MP IMX307 HDR Low Light Camera Module

GN-CKI120 is a camera module based on Rockchip RV1126 demo board and 38/40 sensor.At the same time, it is also an AI intelligent hardware solution that can integrate multiple face recognition algorithm chips on the market. Its super hardware computing capability can meet various applications in the refrigerator industry.



Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

Product Tags



GN-CKI120 is a camera module based on Rockchip RV1126 demo board and 38/40 sensor.At the same time, it is also an AI intelligent hardware solution that can integrate multiple face recognition algorithm chips on the market. Its super hardware computing capability can meet various applications in the refrigerator industry.

2MP IMX307 HDR Low Light Camera Module



Feature:

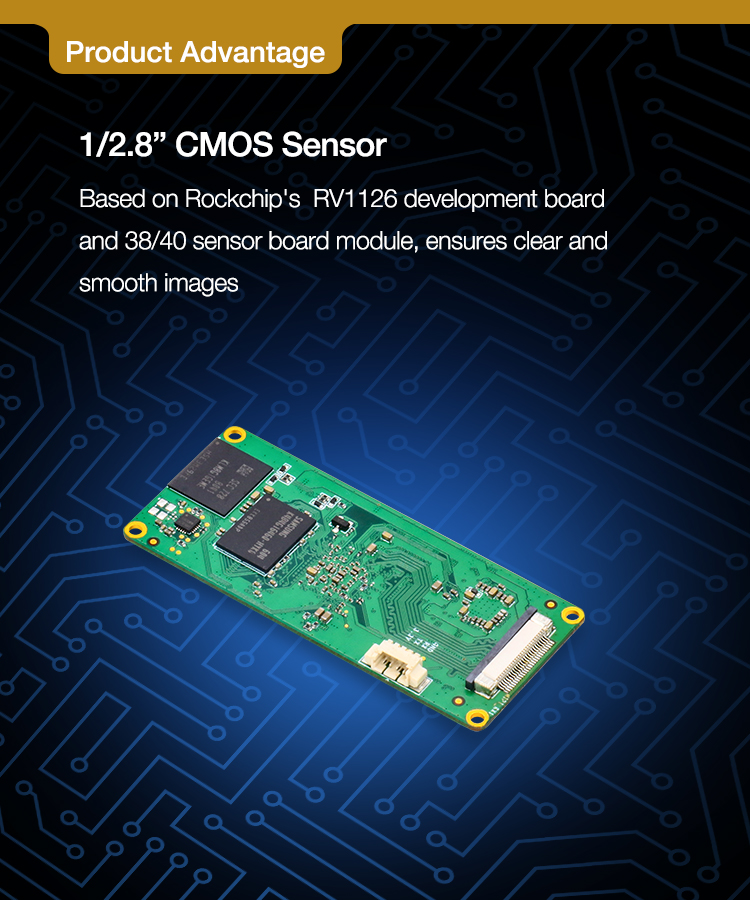

1.Adopting 1/2.8″ 2MP starlight low illumination CMOS sensor;

2.1080P@30fps;

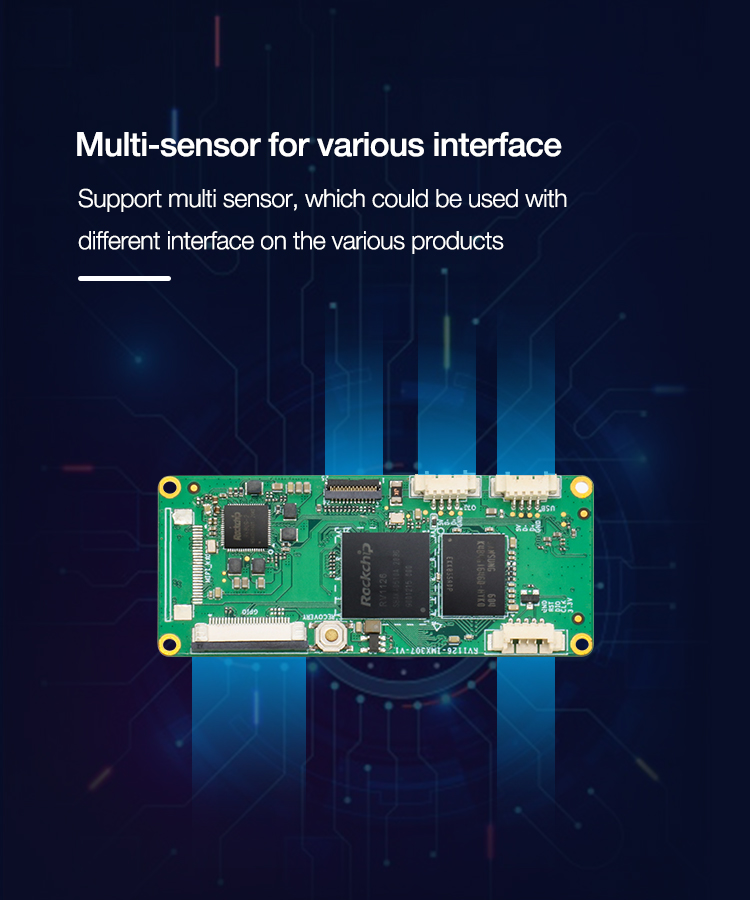

3.Support various sensors

4.FOV D=156Degree ultra wide view of angle,more details to be captured on the image.

5. Anti-fog.

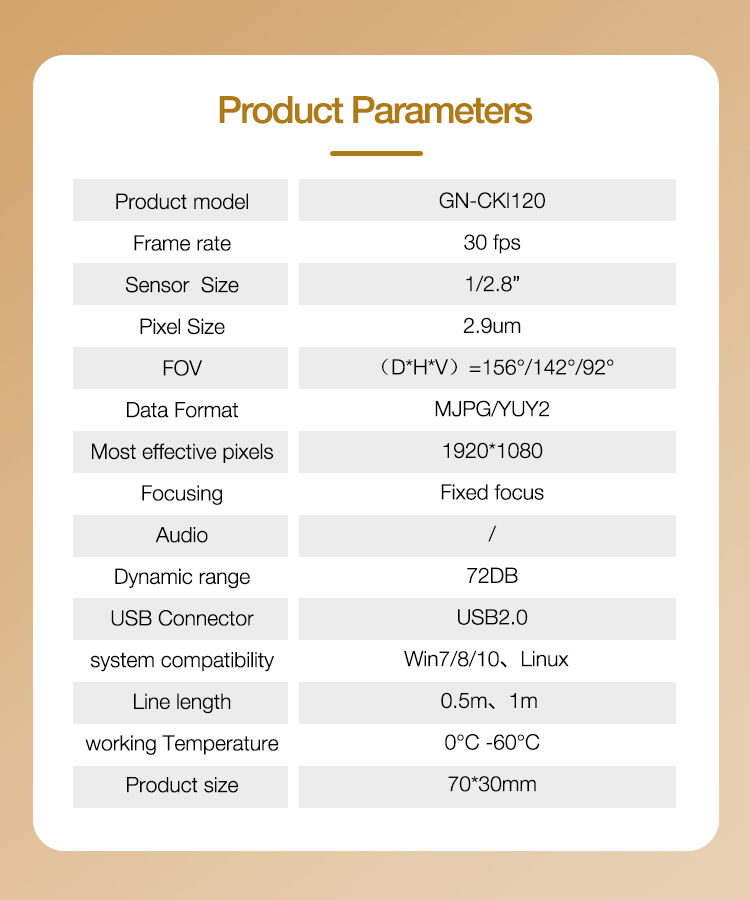

SPECS

CPU
Processing Unit RV1126
Operating Frequency Quad core  ARM Cortex-A7 and RISC-V MCU
Technology 14nm
RAM 2GB DDR4
Storage EMMC5.0 16GB
HashRate 2.0Tops NPU
Camera
Sensor IMX307
Sensor Size 1/2.8″
Resolution 1920*1080
Pixel Size 2.9um
Dynamic Range 72DB
Lens Focus length:1.8mm F2.4 TTL:13.37mm
FOV(D*H*V)=156°/142°/92°
TV DISTORTION≤-22%
Mount:M12*P0.5
   Focusing FF
Antifog Antifog
Frame Rate 30FPS
Auto Control Saturation,contrast,acutance,white balance,exposure
Voltage DC 12V
Max Current MAX 500mA
Storage Temperature -20ºC-70ºC
Support  Linux secondary development Base on RK latest SDK vision
USB HOST
Power 5V interface

2MP IMX307 HDR Low Light Camera Module2MP IMX307 HDR Low Light Camera Module2MP IMX307 HDR Low Light Camera Module2MP IMX307 HDR Low Light Camera Module2MP IMX307 HDR Low Light Camera Module2MP IMX307 HDR Low Light Camera Module2MP IMX307 HDR Low Light Camera Module

Application:

Security Monitoring

Freezer refrigerator

Vending machine etc.
