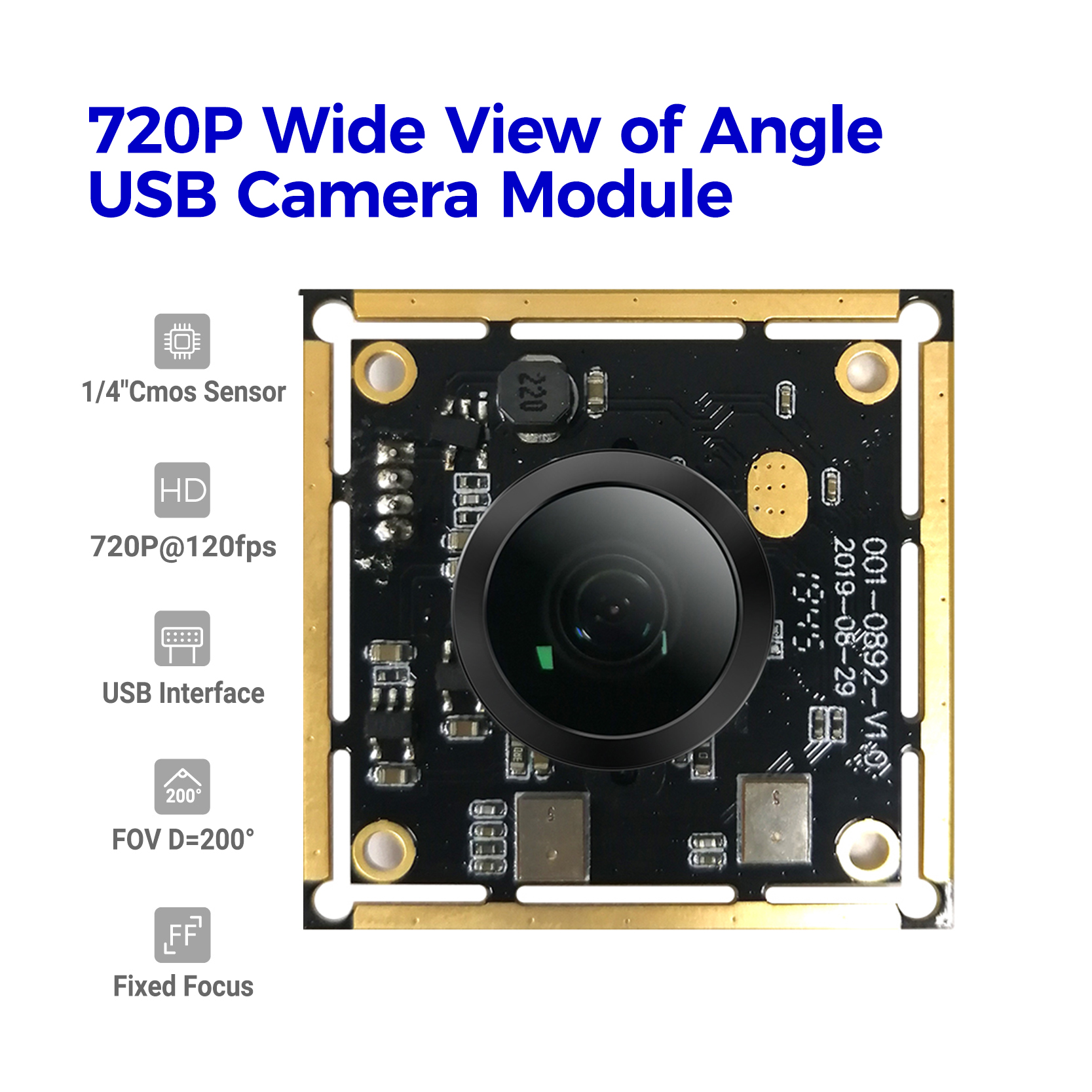

1MP Wide Angle USB Camera Module

Hampo 03-0892 usb camera module is a USB 2.0 interface, with 1/4” CMOS sensor, image quality is high and stable. The resolution is 1280(H)*800(V) @120fps. The usb camera module adopt a 200 degree ultra wide angle lens.

Key Features:

1. Ultra Wide View of Angle:

This camera module has a very wide view of angle at FOV 20°, could capture more into your image.

2. 800P HD USB Camera Module:

The camera's resolution is 1 Mega Pixel(1280*800P) at 120fps with 1/4''  CMOS sensor. High quality and stable video image for you.

3. Plug and Play & UVC:

Free drive 2 megapixel USB board module with USB2.0 cable, easy to set up, just plug & play, compatible with Windows XP/Vista/Win 7/8/10, Linux or OS with UVC, Mac and Android systems, also support OTG.

SPECS:

Camera

Sensor: 1/4" Cmos sensor.

Resolution: 1280*800P

Output: MJPC/YUV

Frame Rate: 120fps

Lens

FOV: D=200°

Construction: 4G2P

Mount: M12*P0.5mm

Power

Power Supply: DC 5V

Working Current: MAX 300mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C).

Dimension: 38mm*38mm, compatible with 32mm*32mm
