13MP OV13850 Fixed Focus MIPI Camera Module

Hello, welcome to consult our products!

13MP OV13850 Fixed Focus MIPI Camera Module

HAMPO-KX2-OV13850 V1.0 is a 13mp MIPI interfaca mini camera module for mobile phone, adopting a 1/3.06-inch OV13850 image sensor which supports an active array of 4224 x 3136 pixels (13.2-megapixels) operating at 30 frames per second (fps) for zero shutter lag and can seamlessly transition between recording video and capturing still images.



Support:Trade, Wholesale

Factory Certifications: ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

DATASHEET

FAQ

Product Tags

Hot Selling 13mp Camera Module OV13850 MIPI Camera Module For Mobile Phone with M12 Wide View of Angle Lens

Product Description
HAMPO-KX2-OV13850 V1.0 is a 13mp MIPI interfaca mini camera module for mobile phone, adopting a 1/3.06-inch OV13850 image sensor which supports an active array of 4224 x 3136 pixels (13.2-megapixels) operating at 30 frames per second (fps) for zero shutter lag and can seamlessly transition between recording video and capturing still images.
Additionally, the sensor supports 4K2K ultra-high definition video at 30 fps with full horizontal field of view (FOV) and electronic image stabilization (EIS), as well as high frame rate 1080p HD video at 60 fps with EIS to enable high quality videos.
HAMPO-KX2-OV13850 V1.0(3)
HAMPO-KX2-OV13850 V1.0(2)

Specification

 Camera Module No.
HAMPO-KX2-OV13850 V1.0
Resolution
13MP
Image Sensor
OV13850
Sensor Size
1/3.06"
Pixel Size
1.12 um x 1.12 um
EFL
2.3 mm
F/No.
2.5
Pixel
4224 x 3136
View Angle
170.0°(DFOV)
Lens Dimensions
13.70 x 13.70 x 20.92 mm
Module Size
40.05 x 22.00 mm
Focusing
Fixed Focus
Interface
MIPI
Auto Focus VCM Driver IC
NONE
 Lens Type
650nm IR Cut
Operating Temperature
-20°C to +85°C



Key Features

PureCel™ image sensor
1.12 µm x 1.12 µm pixel
optical size of 1/3.06"
31.2° CRA for <6 mm z-height
programmable controls for frame rate, mirror and flip, cropping, and windowing
support for image sizes:
13.2MP (4224x3136),
10MP (16:9 - 4224x2376),
4K2K (3840x2160),
EIS 1080p (2112x1188),
EIS 720p (1408x792), and more
13.2MP at 30 fps
two-wire serial bus control (SCCB)

  • Previous:
  • Next:

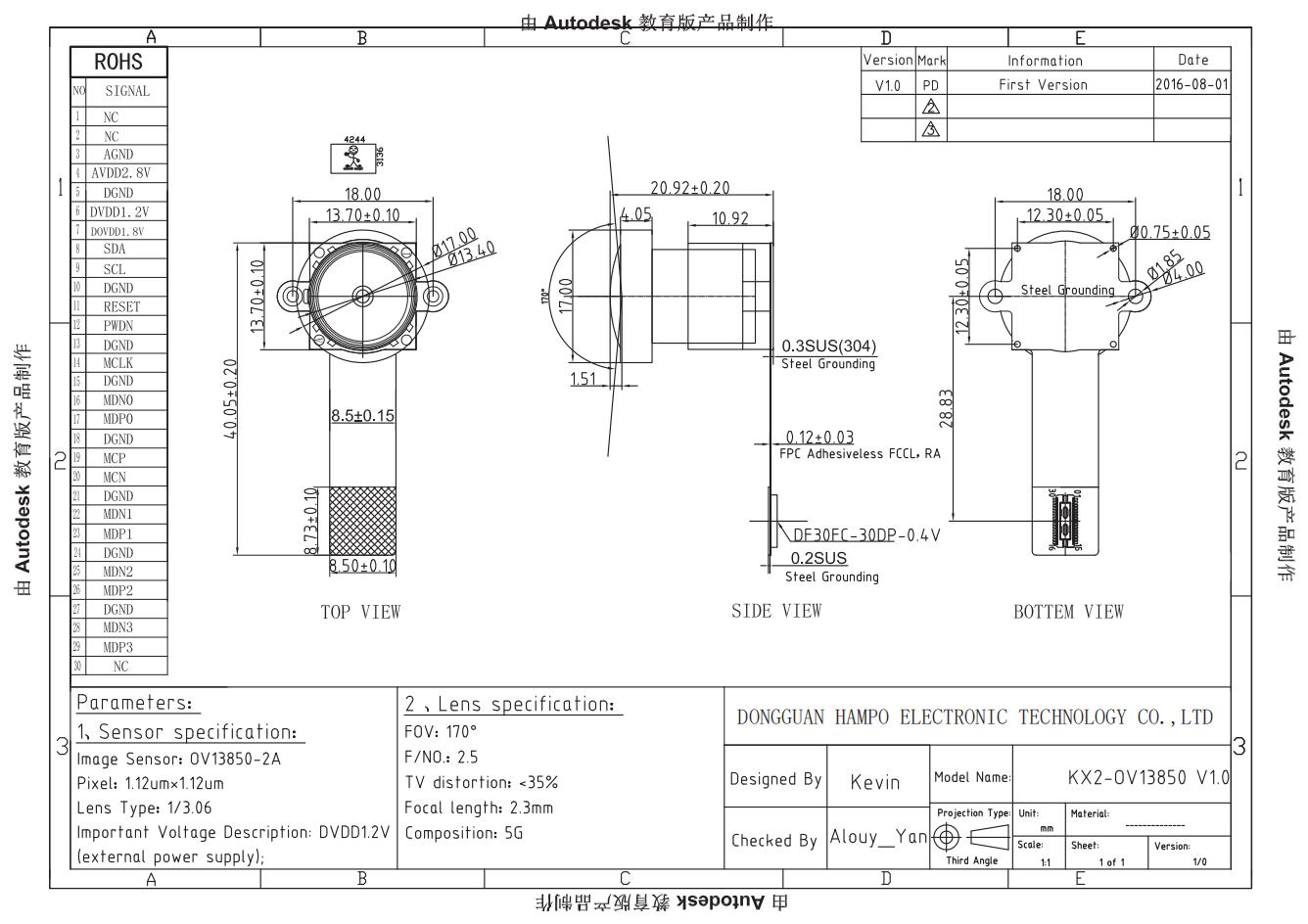

  • HAMPO-KX2-OV13850 V1.0_00
