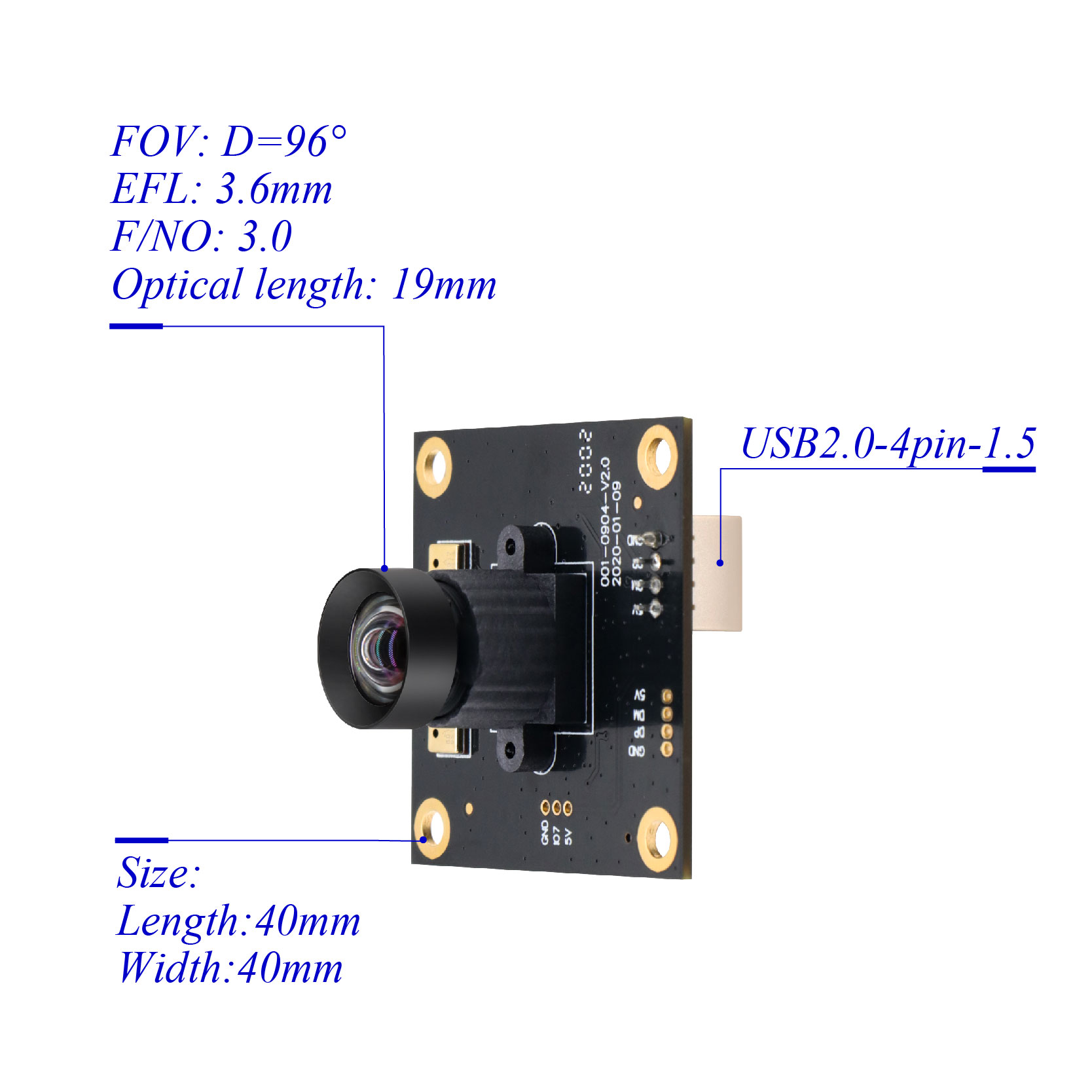

1/2.7Inch RX2719 1080P USB Camera Module
Description:
Hampo 003-0904 is a 2MP digital HDR(High Dynamic Range) camera module with a wide view of angle no distortion lens,the dynamic range up to 76dB. This embedded USB camera modules are compliant with UVC protocol, based on 1/2.7" RXS2719 CMOS image sensor with pixel size of 2.8 x 2.8 µm and a dedicated high-performance Digital Signal Processor (DSP), that performs all the Auto functions (Auto White Balance, Auto Exposure control). This 2MP camera module captures sharp images at a 30fps high frame rate per second.
Widely used for data collection , security monitoring , face recognition, robot, smart terminal, advertisement machine, beauty equipment etc. application.
Key Features:
Full HD Resolution: The camera module has a full HD resolution, max pixel 1920*1080.
HD Sensor RXS2719 Chip: The high definition sensor chip RXS2719 enables stable working performance with better clarity as well.
High Dynamic Range: The camera module with digital WDR technology, the max dynamic range could up to 76dB, which allow the camera capture a clear image or video even under the backlight condition.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device with the USB cable without extra drivers to be installed.
Wide Applications: The camera module with mini PCB board at 38*38(mm), compatible 32*32(mm) can be installed in most hidden and narrow position such as robot vision, advertisement machine, license plate recognition,visual doorbell, smart terminal etc.
SPECS:
|
Camera
|
|
|
Model No.
|
003-0904
|
|
Max Resolution
|
1920*1080P
|
|
Sensor
|
1/2.7" RXS2719
|
|
Frame Rate
|
30fps
|
|
Pixel Size
|
2.8μm*2.8μm
|
|
Output Format
|
YUY2/MJPG
|
|
Dynamic Range
|
76dB
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=96° H=80°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Power
|
|
|
Working Current
|
MAX 200mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
PCB Size
|
38*38(MM),compatible with 32*32(MM)
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
15.79MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications
Access Control
Face Recognition
LED Display
Data Monitoring etc.
