1080P WDR Face Recognition Camera Module
Customized 1/2.7inch AR0230 1080P 30FPS Wide Dynamic Range Mini USB Camera Module with No Distortion Lens for Face Recognition
Product Description
Hampo 003-0689 is a 2MP HDR(High Dynamic Range) camera module with a wide view of angle no distortion lens,the dynamic range up to 96dB,which allow the camera could compensates for images where there are dark and bright areas with WDR technology,in which can see sharp image even under the backlight. The camera board's size is 60mm*13mm. This HDR USB camera moduless are compliant with UVC protocol, based on 1/2.7" AR0230 CMOS image sensor with pixel size of 3.0 x 3.0 µm and a dedicated high-performance Digital Signal Processor (DSP), that performs all the Auto functions (Auto White Balance, Auto Exposure control). This 2MP camera module captures sharp images at a 30fps high frame rate per second.
Widely used for data collection , security camera, face recognition, liveness detection, access control system, advertisement machine, smart terminal etc.
Key Features
1.Full HD Resolution:The camera module has a full HD resolution, max pixel 1920*1080.
2.HD Sensor AR0230 Chip:The high definition sensor chip AR0230 enables stable working performance with better clarity as well.
3.High Dynamic Range:The camera module with WDR technology, the max dynamic range could up to 96dB, which allow the camera capture a clear image or video even under the backlight condition.
4.73.5 Degree Large View:Comes with 73.5 degree large field of view, providing you with larger visual range and wider field of view.
5.Plug&Play:UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
6.Wide Applications:The camera module with mini PCB board at 60mm*13mm, can be installed in most hidden and narrow position such as access control system, advertisement machine, license plate recognition,visual doorbell, smart terminal etc.

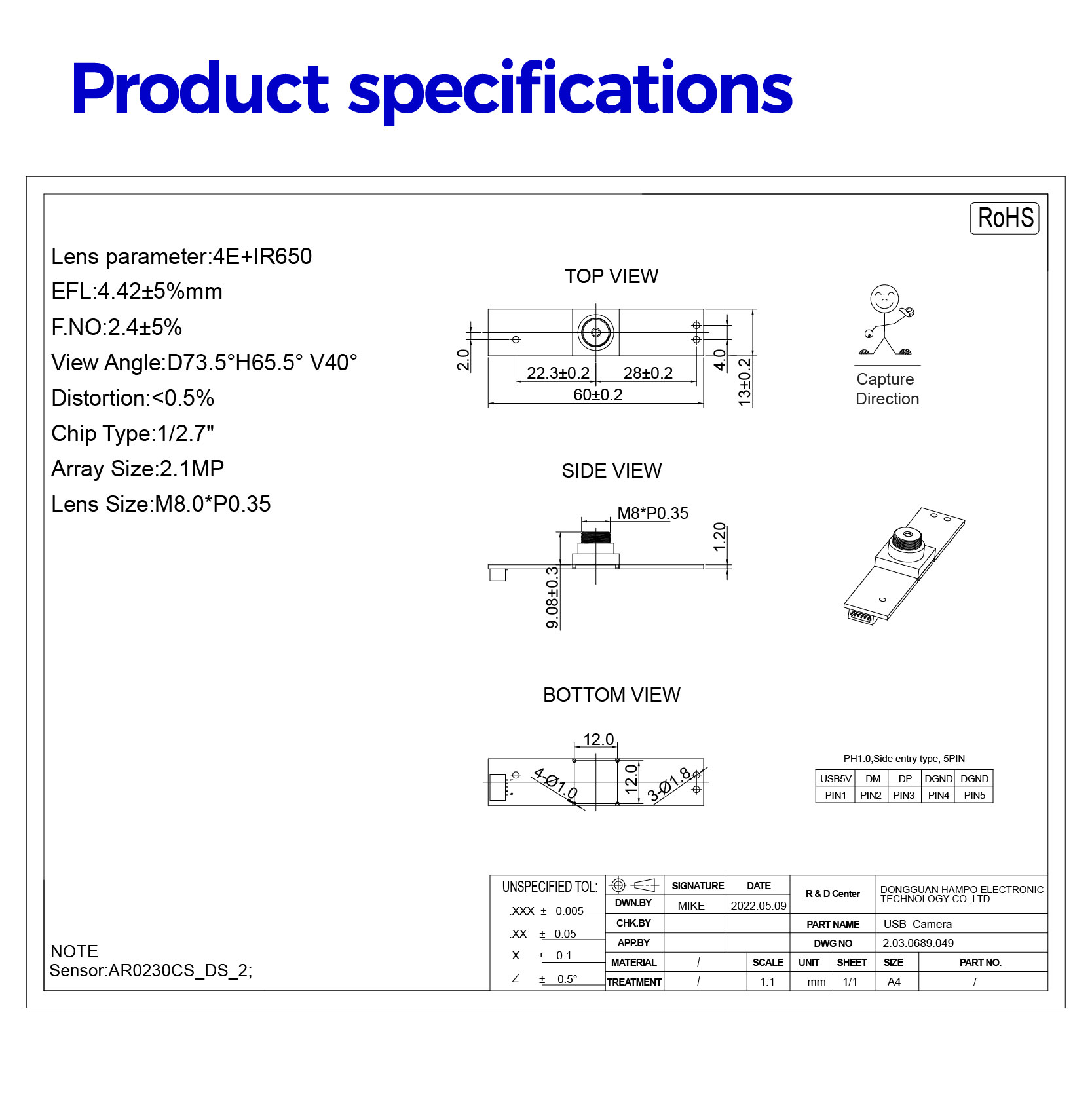

SPECS:
|
Camera
|
|
|
Model No.
|
003-0689
|
|
Max Resolution
|
1920*1080P
|
|
Sensor
|
1/2.7" AR0230
|
|
Frame Rate
|
MJPG 1920X1080@30FPS; 1280X1024@30FPS; 1280X720@30FPS; 1024X768@30FPS; 800X600@30FPS; 640X480@30FPS; 320X240@30FPS;
|
|
Pixel Size
|
3.0μm*3.0μm
|
|
Output Format
|
YUY2/MJPG
|
|
Dynamic Range
|
96dB
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=73.5° H=65.5°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Power
|
|
|
Working Current
|
MAX 200mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
Operating Temp
|
-4°F~158°F (-20°C~+70°C)
|
|
PCB Size
|
60*13(MM)
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
15.29MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications:
Access Control Equipment
Face Recognition
LED Display etc.
FAQ
1. What's HDR?
HDR is for High Dynamic Range, the camera support HDR, that mean you could capture a clear image even under the backlight. HDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject
2. Does the camera support OTG?
Most of our usb cameras support OTG function.
Most of our usb cameras support OTG function.
3. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
4. How long is your delivery time?
It depends on the quantity and the difficulty of products. Usually our turnover time is 15-25 days.
5.What's the different between 03-0689 and 03-0485?
The outlook is differenct, the size for o3-0689 is 60mm*13mm, and the 03-0485 is 38mm*38mm
