1080P Low Light Robot Camera Module
Factory Customized 2MP 1080P Fixed Focus OV2710 0.5Lux Low Illumination USB2.0 Camera Module for Robot Industrial Machine
2020 sees robotics gain momentum and become vital components in a number of applications. From swarms of “microbots” to self-assembling modular robots to strength-enhancing robotic exoskeletons, applications using robotics cut across industries and transform the way work is done. Robots paired with AI perform complex actions and are capable of learning from humans, driving the intelligent automation phenomenon.
Hampo 003-0533 is a true full HD (1080p) camera module adopting CMOS Omnivision OV2710 image sensor, designed specifically to deliver high-end HD video to digital video camcorders, notebooks, PC webcam, robot,document scanner,industrial machine,drone,security and other mobile applications，addresses the fast growing demand for affordable, HD-quality digital video solutions for video conferencing and recording.
Key Features:
1. Full HD 1080P Resolution:
This 1080P camera supply crisp image and crystal clear video. Enjoy razor sharp high Def in every environment. 2M pixels, high definition and true color images.
2. Good Low Illumination:
The camera has a good low illumination with OV2710 sensor, the minimum illumination is about 0.05Lux.
3. High Cost Effective USB Camera Module:
The 1080P robot USB camera module is a type of camera module with competitive price and high quality.
4. High Temperature Resistance:
The lens for this camera is made of glass and plastic, has a high temperature resistance and good image effect.

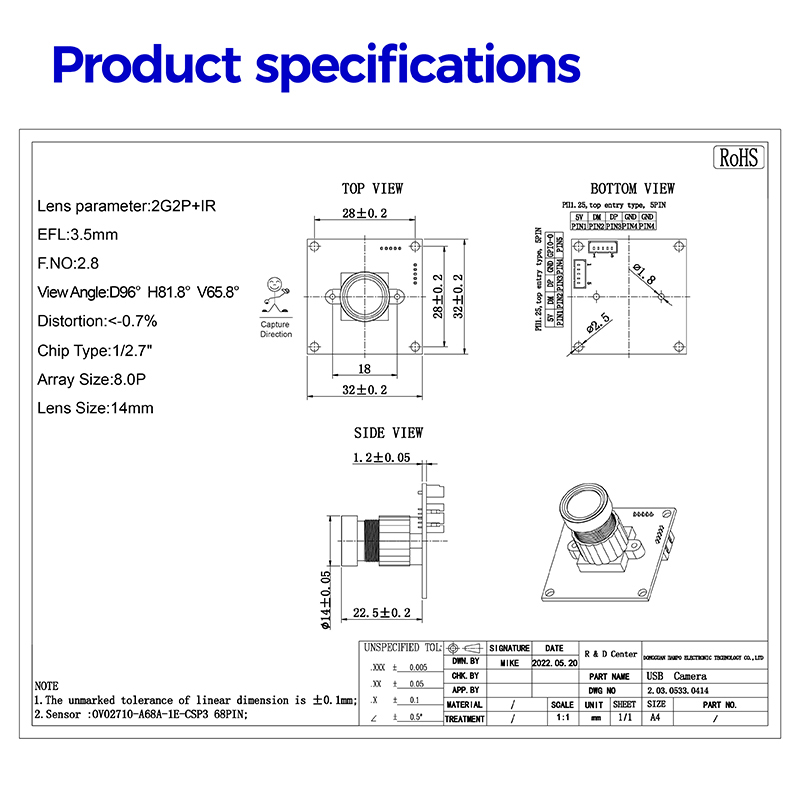

SPECS:
|
Camera
|
|
|
Model No.
|
003-0533
|
|
Max Resolution
|
1920*1080P
|
|
Sensor
|
1/2.7" OV2710
|
|
Frame Rate
|
MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 320X240@30FPS; YUY2:1920x1080@10FPS; 1280x720@15FPS;
800x600@15FPS; 640x480@30FPS; 320X240@30FPS; |
|
Pixel Size
|
3.0μm*3.0μm
|
|
Output Format
|
YUY2/MJPG
|
|
S/N Ratio
|
40dB
|
|
Dynamic Range
|
69dB
|
|
Illumination
|
0.5Lux
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=96° H=81.8°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Focusing Range
|
3.3ft (1M) to infinity
|
|
Power
|
|
|
Working Current
|
MAX 220mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
Operating Temp
|
Depend on environmental temperature
|
|
PCB Size
|
32mm*32mm
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
3.5MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Exposure/ White balance
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications
Robot
Data Collection
Route Recognition etc.
