Mini 256*192 Infrared Thermal Camera Module
mini 256*192/384*288/640*512 12um uncooled infrared long wave length infra-red thermal camera module
Description:
Mini adopts new self-developed 12μm VOx WLP detector and is equipped with an ASIC processing chip independently developed by InfiRay®, featuring extremely small size, lighter weight, and lower power consumption.
Its 640-resolution thermal iamging module has a size of 21mm×21mm, which is very suitable for applications with extremely high requirements such as various miniaturized handheld devices, wearable devices, and light UAVs.
SPECS:
| Sensor | Uncooled VOx microbolometer |
| Spectral Band | 8～14 μm |
| Frame Rate | 25HZ |
| Pixel Pitch | 12μm |
| Thermal Imaging | |
| Brightness Adjustment | 0~255, optional |
| Contrast Adjustment | 0~255, optional |
| Polarity | White-hot/Black-hot |
| Palette | Supported |
| Digital Zoom | 0.25~2.0× continuous zoom |
| Mirroring | Vertical/Horizontal/Diagonal |
| Reticle | Show/Hide/Move |
| Image Processing | TEC-less algorithm |
| Non-uniformity correction | |
| Digital filtering noise reduction | |
| Digital detail enhancement | |
| Thermal Camera Power Supply and Power Consumption | |
| Input Supply Voltage | Three-way: 1.8V, 3.3V, and 5V |
| Typical Power Consumption@25°C | ＜0.35W/＜0.50W |
| Thermal Camera Output and Communication Interface | |
| Video Output format | DVP/SPI |
| Optional Expansion Board Interfaces | |
| Power Supply | 5V-12V |
| Power Protection | Overvoltage, undervoltage, and reverse connection protection |
| Output and Control Interface 1 | 1-channel PAL analog image output/OptionalBT.656 digital
video interface, I2C control |
| Output and Control Interface 2 | USB2.0 image output, SDK for Linux/Windows |
| Physical Characteristics of Module (Lens and flange not included) | |
| Weight | <8 g |
| Package Dimension | 21mm×21mm |
| Temperature Measurement | Target temperature of -20°C ~ +150°C: accuracy of ±2°C
or ±2% of the reading(The greater shall prevail @ ambient temperature of -20°C ~ 60°C) |
| Target temperature of 0°C ~ +450°C: accuracy of ±5°C or ±3%
of the reading(The greater shall prevail @ ambient temperature of -20°C ~ 60°C) |
|
| Measurement Method | Measurement Method |
| Environment Adaptability | |
| Operating Temperature | -40℃～80℃ |
| Storage Temperature | -50℃～+85℃ |
| Humidity | 5%‒95%, non-condensing |
| Vibration | 6.06g, random vibration, all axes |
| Shock | 80g, 4ms, final peak sawtooth wave, three axes and six directions |

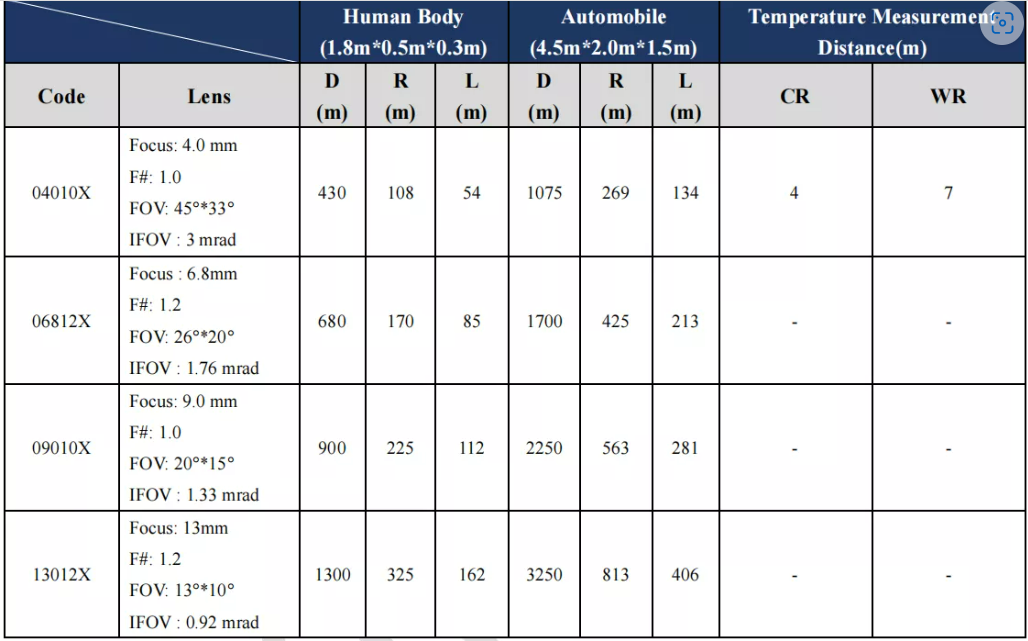

Features:
Extremely small size, extremely low power consumption, and extremely light weight
Benefit from the size advantages of ASIC and WLP;Benefit from the low power consumption of ASIC;Mini series thermal imaging module has only one circuit board, which is extremely light.
Self-developed Core
With advanced image detection algorithm, it can realize automatic monitoring alarm, warning area customizing, and automatic target recognizing or tracking;The interface software has complete functions and friendly interaction. It provides a variety of monitoring methods such as 360° panoramic image, radar image, and single frame image, and various parameters of the device can be set;When the monitored target appears, it can alarm via image slice, log, sound, and other methods;
Advanced image detection algorithm
The alarm position can be accurately displayed in real time on the infrared panoramic image and 2D/3D electronic map of GIS system, and link with other external devices. For example, combined with the ARD high-accuracy remote dual-spectrum early-warning imaging tracker, it can quickly locate and recognize the target, complete the alarm situation review process, and record the linkage process information;
Advanced image stabilization algorithm
Small size, customized color, easy to install and deploy in various environments;30V DC power supply, average power of less than 30w. The ordinary portable power source is enough for it;A single person can complete its handling, installing, and debugging in half an hour. Main components: 1 tripod + 1 portable power supply + 1 laptop;One 640 infrared radar can cover the shooting range of 45 units 640×512 infrared monitoring cameras, and the pitch range is adjusted from -20° to +40°, which further improves the monitoring range of the infrared radar;
Application Fields:
Internet & smart home appliancesPower equipment testingTemperature measuring toolNight vision,security perimeterFire warning and fire fighting
Here are Some Quick Links and Answers to Frequently Asked Questions.
Check back for updates or contact us with your question.
1. How to order?
We will quote the price to customers after received their requests. After customers confirmed the specification, they will order samples for testing. After inspected all devices , it will be sent to the customer by express.
2. Do you have any MOQ (minimum order)?
Sample order will be supported.
3. What is the payment terms?
T/T bank transfer is accepted ,and 100% balance payment before goods shipment.
4. What is your OEM requirement?
You can choose multiple OEM services includes the pcb layout, update the firmware, color box design, change deceive name, logo label design and so on.
5. How many years have you been established?
We focus on the audio&video products industry over 8 years.
6. How long is the warranty?
We offer 1 year warranty to all of our products.
7. How long is the delivery time?
Normally the sample devices could be delivered within 7 working day , and the bulk order will depend on the quantity .
8.What kind of software support I can get?
Hampo provided lots of tailor-made rugged solutions to customers, and we can also provide SDK for some of projects, software online upgrade , etc.
9.What kind of services can you provide?
There is two services models for your option ,One is OEM service ,which is with customer’s brand based on our off-the-shelf products ;the other is ODM service according to the individual demands ,which included Appearance design ,structure design ,Mold development ,software and hardware development etc.
