16MP S5K3P3 Image Sensor Customized Mini Camera Module
Mobile Phone Camera Module 16MP Samsung S5K3P3 Image Sensor Customized Mini Camera Module Mipi Interface

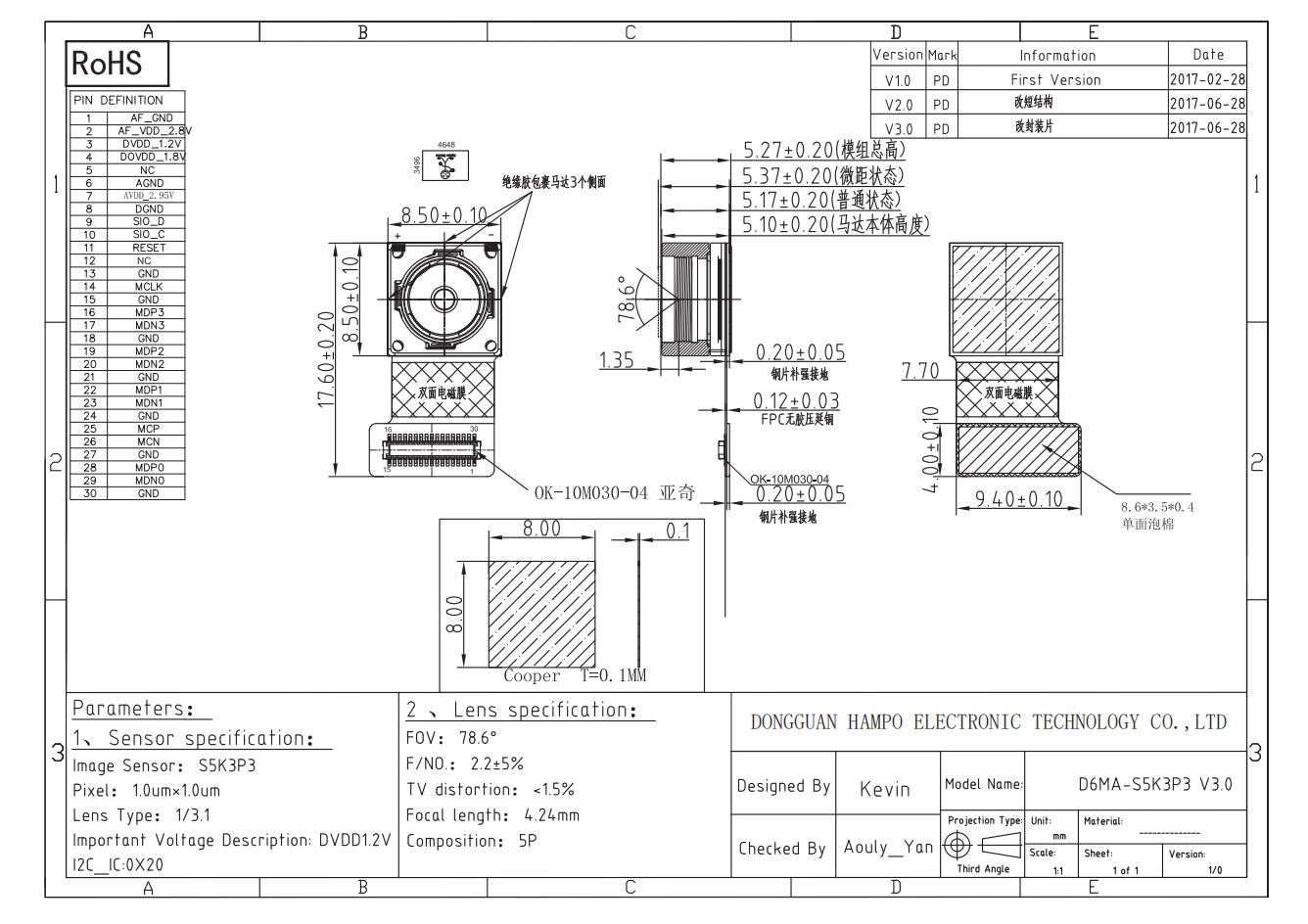

HAMPO-D6MA-S5K3P3 V3.0 is a 16MP Mipi interface camera module; Adopting S5K3P3SQ highly integrated 16M pixel camera chip that includes a CMOS image sensor (CIS), image correction functionality and serial transmission using 4-lane MIPI. It is designed for fast yet low power operation, delivering full resolution capture at 30 frames per second (fps) and full field of view (16:9) FHD video at 60fps. The S5K3P3SQ camera module supports Phase Detection Auto Focus (PD AF) mechanism allowing efficient Auto Focus in the system.
Specification
|
Camera Module No.
|
HAMPO-D6MA-S5K3P3 V3.0
|
|
Resolution
|
16MP
|
|
Image Sensor
|
S5K3P3
|
|
Sensor Size
|
1/3.1"
|
|
Pixel Size
|
1.00 um x 1.00 um
|
|
EFL
|
4.24 mm
|
|
F/No.
|
2.2
|
|
Pixel
|
4632 x 3480
|
|
View Angle
|
78.4°(DFOV) 66.2°(HFOV) 51.6°(VFOV)
|
|
Lens Dimensions
|
8.50 x 8.50 x 5.37 mm
|
|
Module Size
|
17.60 x 9.40 mm
|
|
Focusing
|
Auto Focus
|
|
Interface
|
MIPI
|
|
Auto Focus VCM Driver IC
|
DW9714
|
|
Lens Type
|
650nm IR Cut
|
|
Operating Temperature
|
-20°C to +70°C
|
Key Features
◆High Frame Rate 30fps@Full resolution / 120fps@2x2 Adjacent Pixel Binning (4:3) / 150fps@2x2 Adjacent Pixel
Binning (16:9)
◆Electronic Image Stabilization (EIS)
◆High signal to noise ratio(SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW10/8, COMP8
◆Pixel binning readout function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output (MIPI 2lane/4lane, Max. 2.3Gbps/lane, D-PHY spec. ver. 1.2 compliant)
◆2-wire serial communication
◆Advanced Noise Reduction (Chroma noise reduction and RAW noise reduction)
◆12K bit of OTP ROM for users
◆Quad Bayer Coding color filter arrangement
Binning (16:9)
◆Electronic Image Stabilization (EIS)
◆High signal to noise ratio(SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW10/8, COMP8
◆Pixel binning readout function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output (MIPI 2lane/4lane, Max. 2.3Gbps/lane, D-PHY spec. ver. 1.2 compliant)
◆2-wire serial communication
◆Advanced Noise Reduction (Chroma noise reduction and RAW noise reduction)
◆12K bit of OTP ROM for users
◆Quad Bayer Coding color filter arrangement
